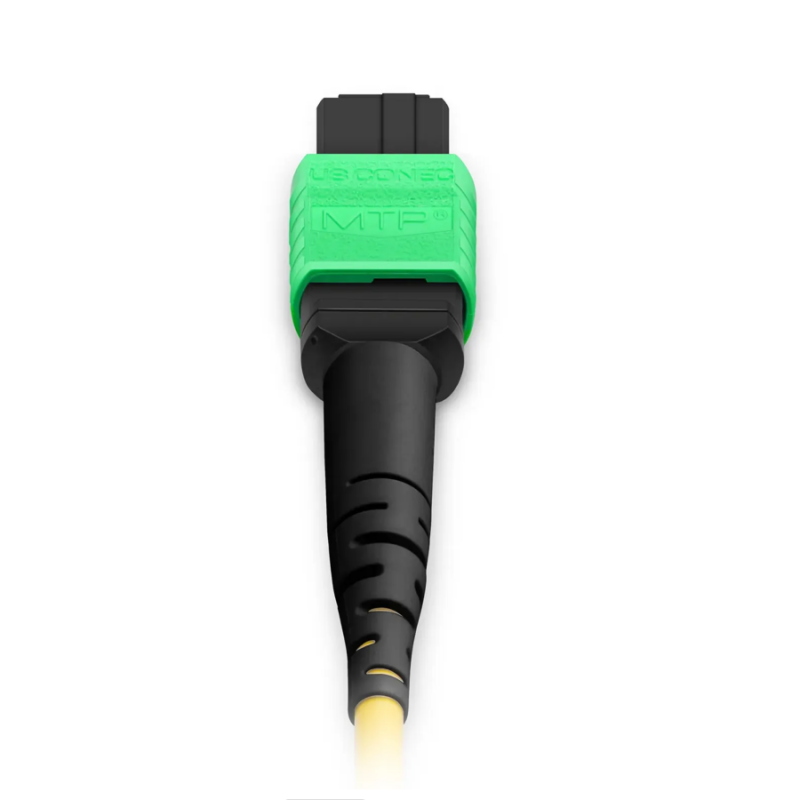

MPO Jumper Cable with 0.35dB Low IL for 800G QSFP-DD Transceivers and G.657.A1 Bend Insensitive Fiber

MPO Jumper Cable with 0.35dB Low IL for 800G QSFP-DD Transceivers and G.657.A1 Bend Insensitive Fiber

MPO Jumper Cable with 0.35dB Low IL for 800G QSFP-DD Transceivers and G.657.A1 Bend Insensitive Fiber
MPO Jumper Cable with 0.35dB Low IL for 800G QSFP-DD Transceivers and G.657.A1 Bend Insensitive Fiber
Categories MTP MPO Cables
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
MOQ: 20
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Model Number: MPO/MTP
Product Name: MPO Jumper Cable
Type: OS2 OM3 OM4
Connector Type: Female Male
Cable Polarity: Type B Type A Type C
Cable Length: 1M, 3M, 5M, Customized
Core: 8F 12F 16F 24F
Contact Now
Company Info.
Shenzhen CY COM Product Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

MPO Jumper Cable with 0.35dB Low IL for 800G QSFP-DD Transceivers and G.657.A1 Bend Insensitive Fiber

Model MTP-16 Jumper, F to F, APC, 16F, OS2, OFNP, 0.35dB, Crossover



The MPO-16 jumper is factory-terminated and tested to deliver verified optical performance and reliability, with an MPO-16 APC end featuring an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting signal quality.

It is ideal for 16-fiber parallel single mode optical transceiver applications, such as 800G QSFP-DD DR8 optics transmission in data center high-speed fiber links.


Key Features

MPO Connector with Optimal 0.35dB Low IL
G.657.A1 Bend Insensitive Fiber with 10mm Min. Bend Radius
8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Designed for Linking 800G QSFP-DD Transceivers
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D


Specifications
Connector A
MPO-16 Female (Non-Pinned) with Offset Key
Connector B
MPO-16 Female (Non-Pinned) with Offset Key
Polish Type
APC to APC
Glass Fiber
G.657.A1
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Fiber Count
16 Fibers
Polarity
Crossover
Cable Outside Diameter (OD)
3.0mm
Cable Jacket
Plenum (OFNP)
Min. Bend Radius (Optical Fiber)
10mm
Min. Bend Radius (Fiber Cable)
10/5D (Dynamic/Static)
Connector Durability
500 times
Tensile Strength
80/240N (Long/Short Term)
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥60dB
Attenuation at 1310nm
≤0.35dB/km
Attenuation at 1550nm
≤0.21dB/km
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
