| Categories | RF Cable Assemblies |
|---|---|
| Brand Name: | RY |
| Model Number: | RY-7688765368 |
| Certification: | CE,ROHS |
| Place of Origin: | China |
| MOQ: | 20 |
| Price: | USD0.88~2.88 |
| Payment Terms: | L/C, T/T,Paypal, Western Union, |
| Supply Ability: | 10000pcs |
| Delivery Time: | Shipped in 3 days after payment |
| Brand Name:: | RY |
| Type:: | Coaxial |
| connector:: | fakra d to ufl |
| Impedance:: | 50ohm |

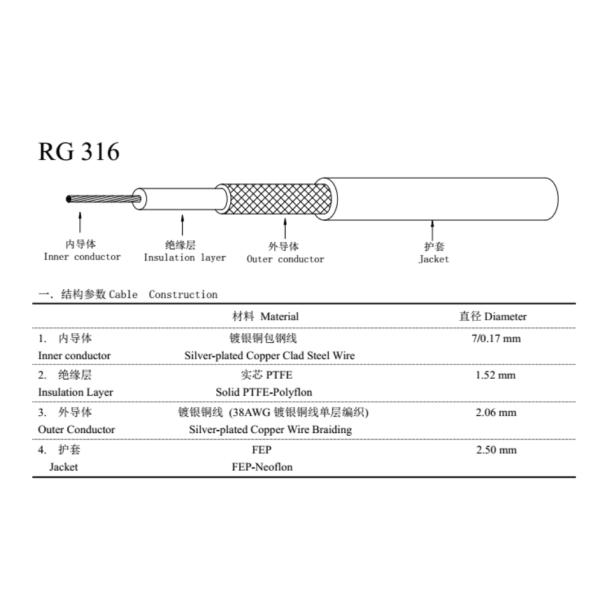

| Cable type:: | RG316 |
| material: | copper |
| Certification:: | CE/ROHS/ISO9001 |
| Plating:: | Nickel or gold |
| Company Info. |
| Zhangjiagang RY Electronic CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
waterproof Violet fakra D male connector to ufl rg316 pigtail cable assembly

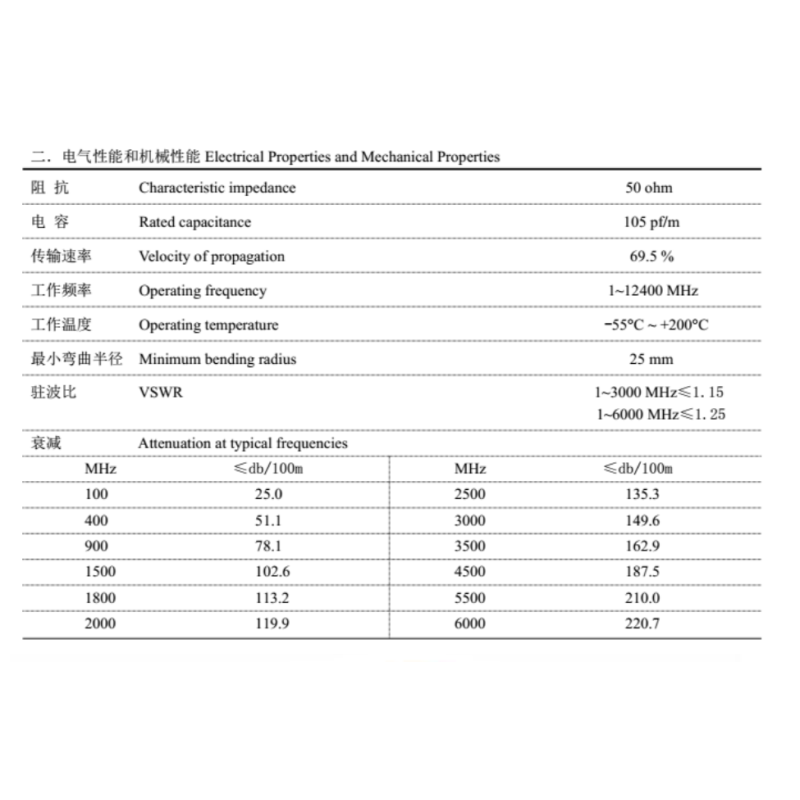

Electrical Characteristics
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency range | DC-6Ghz |
| VSWR | 1.3 max |
| Voltage | 60V AC(rms) |
| Insulation Resisitance | 500 MΩ min. |
| Insertion Loss | 0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ |
| Connector | fakra D to ufl |
| MATERIAL DATA | |
| Bodies | Brass--gold plating |
| Pin contacts | Brass--gold plating |
| Socket contacts | Copper-beryllium alloy--Au plating |
| Insulator | PTFE |
| Cable type | 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240 |
| Application | smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc |
| Temperature range | -40°C to +80°C |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Good After-Sales Service: we could offer technical support or
return service in short time.
4. 1 Year Warranty.
5. OEM/ODM service.
6. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our
quality.
4. Can your company accept customize?
6.How do you solve after sale service?
7. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
|
