Custom Made Mini Metal Detector For Foil Wrapper Products Chocolate

Categories	Metal Detector Machine
Brand Name:	ZL
Model Number:	ZL-4010
Certification:	CE,ISO
Place of Origin:	China
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets
Delivery Time:	5-8 work days
Packaging Details:	Custom Made Mini Metal Detector for Foil Wrapper Products Chocolate is packaged within wooden case.
Product name:	Custom Made Mini Metal Detector for Foil Wrapper Products Chocolate
Detection width:	200mm
Load capacity:	10kg
Speed:	25-30m/min
Detection height:	100mm
Level of protection:	IP 65
Power supply:	220V 50Hz 90W
Key words:	Customized Mini

Contact Now

Add to Cart

Company Info.

Dongguan Zhongli Instrument Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Custom Made Mini Metal Detector For Foil Wrapper Products Chocolate

Product Overview

This custom mini metal detector is specifically designed for inspecting foil-wrapped chocolate products after packaging. It integrates with weighing, labeling systems and features exclusion mechanisms to remove non-conforming products.

Detection objects: Food, frozen products, salt, medical gloves and other products
Professional scope: Various food additives, food, meat, plastics recycling industry, chemical rubber and medical drugs
Detection goal: Identify metal foreign matters in materials including gold, aluminum, copper, iron, and stainless steel

System Composition

Control system: ADLINE microprocessor controller with IP65 protection level
Detection system: Dual-channel metal detection coil with rectangular aperture
Joint-body PU (polyurethane) conveyor belt with anti-crooked running treatment
Conveyors: High strength mirror stainless steel structure with all welded construction
Exclusion mechanisms: Plate over, wall rod, rocker arm, and blowing systems

Technical Parameters

Detection Width	Detection Height	Detection Accuracy	Volume	Approx Weight	Detection Speed	Power	Voltage
400mm	80mm	Fe≥Φ0.7mm Sus≥Φ1.5mm	1200×660×960mm	250kg	25m/min	90W	220V/50Hz
400mm	120mm	Fe≥Φ0.9mm Sus≥Φ2.3mm	1200×660×1000mm	250kg	25m/min	90W	220V/50Hz
400mm	150mm	Fe≥Φ1.0mm Sus≥Φ2.5mm	1200×660×1030mm	250kg	25m/min	90W	220V/50Hz

Detection width: 400mm to custom sizes
Load capacity: ≤20KG
Speed: 25-30m/min
Detection height: 100-120-150-200-250mm
Sensitivity: Iron ball diameter (Фmm) ≥0.8-≥1.0-≥1.2-≥1.5-≥1.8
Alarm mode: Automatic stop rewinding with buzzer alarm when metal detected
Machine material: 3cm thick mirror stainless steel construction
Machine size: 1180L × 650W × 930H mm (custom sizes available)
Machine weight: Approximately 150KG (varies with custom specifications)
Power supply: 220V 50Hz 90W

Documentation

ZL-4010 Metal Detector Technical Documentation

Product Images

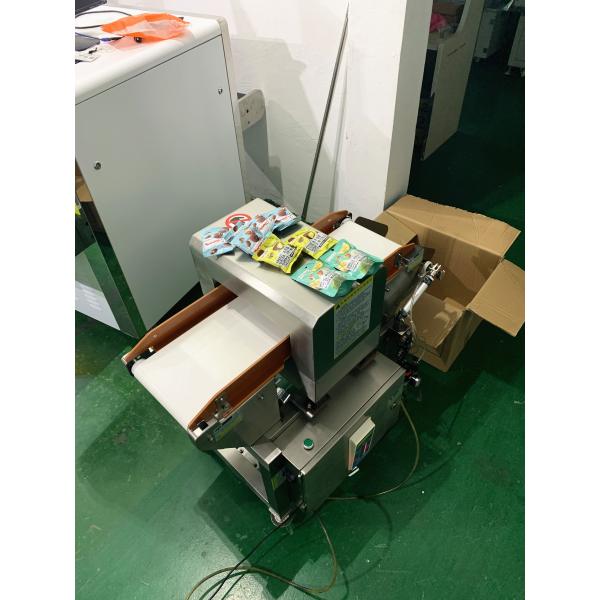

Custom mini metal detector for foil wrapper products - front view

Custom mini metal detector for foil wrapper products - side view
