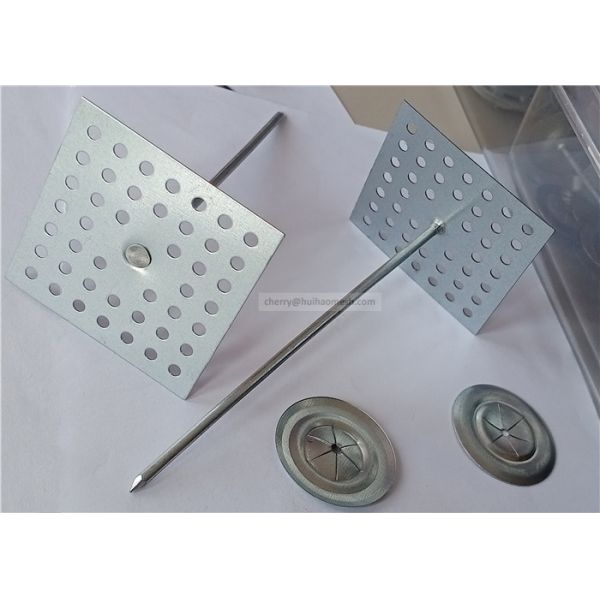

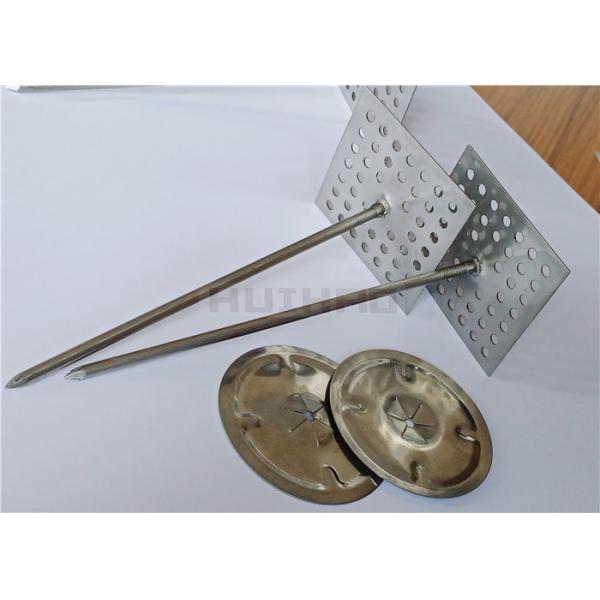

75mm Insulation Hangers With Perforated Base Fixing Insulation Material To Wall & Ceiling

Specification details of the insulation hangers with perforated base

Insulation hangers with perforated base are widely used to attach insulation material with the use of general purpose adhesive.

Huihao Hardware Mesh Product Limited is a professional manufacture of perforated base insulation hangers and self locking washers, we choose high standard raw materials, have fully automatic production line and strict quality control system, the quality is good, and the delivery is fast.
If you are in need of perforated base insulation hangers and self locking washers, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com

Base size in common: 40mmx40mm, 50mmx50mm
Pin diameter in common: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
Pin length in common: 50mm, 63mm, 90mm, 114mm, 125mm, 175mm, 203mm, 230mm etc.

Surface treatment: zinc coated or copper coated for mild steel material

Common Size Details
base type	pin diameter	pin length	material thickness
25 mm x 25 mm	1.8 mm , 2.0 mm	20 mm - 114mm	0.4-0.5 mm
40 mm x 40 mm	2.5 mm, 2.7mm	20 mm -180mm	0.4-0.5 mm
50 mm x50 mm	2.7 mm , 3.0mm, 3.4mm	50 mm - 280mm	0.4-0.5 mm

Applications of the insulation hangers with perforated base

	1. Wipe surface clean Perforated insulation hangers must be applied to a clean, dry, non-painted surface.
	2. Apply adhesive to the bottom of the perforated insulation hangers Spread adhesive onto the perforated base with a putty knife.
	3. immediately stick the insulation hangers in place. Press the hangers into position with a twisting motion to assure an even spread of adhesive. The adhesive should protrude through the performation & beyond the edges of base.
	4. Install Insulation Note: allow adhesive to dry thoroughly before hanging insulation, usually 24-72 hours.
	5. Secure with washers Secure insulation in place with a self locking washer and then bend over or clip off the pins

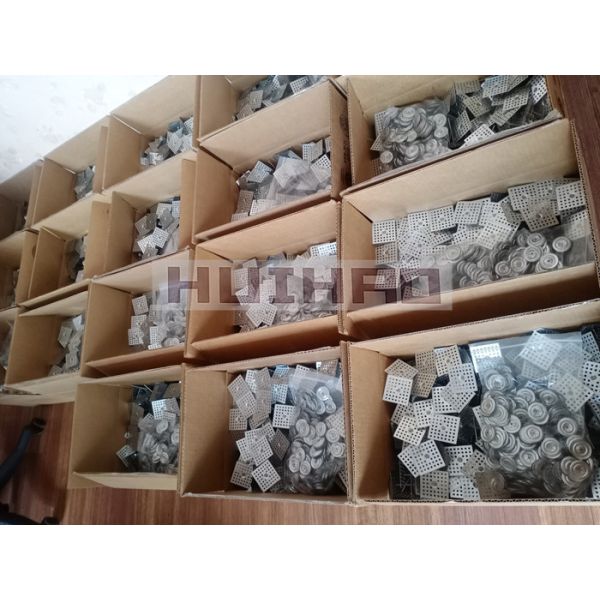

Package Details Of The Perforated Base Insulation Hangers

PIN LENGTH	CARTON SIZE	QTY/CARTON
38MM	41CMX28CMX17CM	1000PCS
50MM-65MM	41CMX28CMX17CM	500PCS
70MM-84MM	30CMX28CMX29CM	500PCS
90MM-120MM	30CMX30CMX30CM	500PCS
130MM-160MM	30CMX30CMX35CM	500PCS
170MM-203MM	30CMX30CMX28CM	250PCS
OTHERS	SUPPORT CUSTOM	SUPPORT CUSTOM
