PLC Control Two-roll Rubber Mixing Mill with Stainless Steel Material and Variable Roll Speeds

PLC Control Two-roll Rubber Mixing Mill with Stainless Steel Material and Variable Roll Speeds

PLC Control Two-roll Rubber Mixing Mill with Stainless Steel Material and Variable Roll Speeds
PLC Control Two-roll Rubber Mixing Mill with Stainless Steel Material and Variable Roll Speeds
Categories Rubber Mixing Machine
Brand Name: SFC
Model Number: XK-400
Certification: CE、ISO9001、SGS
Place of Origin: China
MOQ: 1
Price: US$5999.00-80000.00/set
Payment Terms: L/C,T/T
Supply Ability: 500 sets/year
Delivery Time: 60 days
Packaging Details: export standard packaging
Capacity: 50-100kg/h
Control System: PLC
Material: Stainless Steel
Operation Mode: Automatic
Origin: China
Power: 37kw
Size: 4250*1850*1870mm
Type: Rubber Making Machine
Voltage: 220V/380V/440V
Warranty: 1 Year
Weight: 7000kg
Contact Now
Company Info.
Qingdao Shun Cheong Rubber machinery Manufacturing Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PLC Control Two-roll Rubber Mixing Mill with Stainless Steel Material and Variable Roll Speeds

Direct from Manufacturer: Two-roll Rubber Mixing Mill & Open Mill
Ayla - Business Manager
sales-6@sfcjx.com
Customization includes independent control of mixing blade speeds, enabling fine-tuning of the mixing process based on specific rubber compounds and desired results. Variable speed control allows adjustment of mixing intensity, shear forces, and residence time, leading to improved dispersion and homogeneity of rubber compounds.
Key Features
  • Variable Roll Speeds: Independent control of roll speeds enables precise adjustment of shear rate and residence time for optimal blending and dispersion across various rubber compounds.
  • Temperature Control: Heated or cooled rolls maintain rubber materials at desired temperatures, facilitating blending for different compound types and preventing excessive heat buildup.
  • Customization Options: Available customization includes roll diameter, surface texture, roll material, pneumatic/hydraulic adjustments, automated batch feeding systems, and discharge mechanisms.
Open Rubber Mixing Mill Specifications
Features a 16" open rubber mixing mill with easy access to rolls for feeding materials, additives, and fillers. The open design facilitates efficient cooling and discharge of mixed rubber compounds. Customizable to accommodate different roll sizes including 16", 18", or other specific dimensions based on production requirements.
Reference Photos

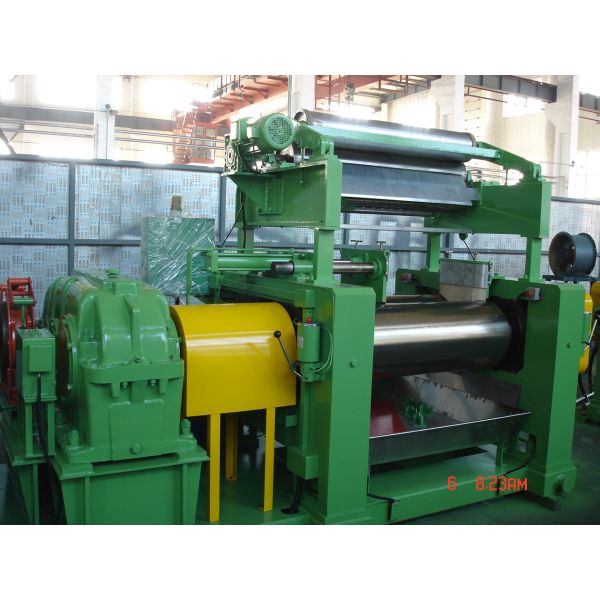

Two-roll rubber mixing mill front view Two-roll rubber mixing mill side view Rubber mixing mill control panel Close-up of mixing mill rollers Rubber mixing mill operational view Industrial rubber mixing equipment Mixing mill manufacturing process Rubber mill technical details Factory rubber mixing machinery Custom rubber mixing equipment Professional rubber mixing mill
Technical Parameters - Rubber Kneader Mixer Models
ModelXK-400XK-450XK-560XK-610XK-660
Working diameter of rollers (mm)Ф400Ф450Ф560/Ф510Ф610Ф660
Working length of rollers100012001530/183020002130
Linear speed of front and rear roller1:1.271:1.271:1.21:1.291:1.24
Capacity per batch18~3525~5050~10090~120130~165
Motor power (kw)375590/110160185/250
Overall size L*W*H4250*1850*18705200*1800*20006500*2300*26407500*2500*26407600*3400*2500
Weight (kg)700010000200002800047000
Company Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd, located at Kangting Road No. 1, West Coast New District, Qingdao, China, is a specialized high-technology rubber machinery manufacturer. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Industry Coverage
Products serve tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbished manufacturing, and waste tire recycling industries.
Main Equipment
Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer, and more.
Global Reach
Products exported to over 50 countries including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning consistent customer praise and cooperation.
Quality Commitment & Warranty
  • Every component undergoes strict quality inspection before storage
  • All products undergo overload trial running before shipment
  • Comprehensive free technical support for all products
  • 3-year warranty for main parts, 1-year warranty for wearing parts
  • Immediate technical support via internet or telephone, with on-site repair services when needed
  • Factory visits available for conveyor belt, waste tire recycling, and rubber products production consultation
Qingdao Shun Cheong factory facility Rubber machinery manufacturing process Quality control and certification documentation
