High Pressure PSA Nitrogen Generation System with PLC Control and 99.9995% Purity N2 Nitrogen Generating Equipment

Categories PSA Nitrogen Generator
Capacity: 5-5000Nm3/hr
Instrument: Pressure gauge, oxygen analyzer , dew point meter
Control system: PLC
Brand Name: Joshining
Model Number: PN-100-39
Certification: CE/ASME//BV/CCS/ABS
Place of Origin: Suzhou,China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 80 sets per month
Delivery Time: 60 days
Packaging Details: Normal exporting packing
Feature: High Pressure
Pipeline: Seamless steel pipeline
Application: N2
Valve: Pneumatic valve , control valve
Flow: 95%-99.9995%
Pressure: 1-10 bar (adjustable)
Name: PSA Nitrogen Generation System
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Pressure PSA Nitrogen Generation System with PLC Control and 99.9995% Purity N2 Nitrogen Generating Equipment

High Pressure PSA Nitrogen Generation System / N2 Nitrogen Generating Equipment
PSA Nitrogen Generation System Introduction

Joshining Pressure Swing Adsorption (PSA) type Nitrogen Generator provides a cost-effective means for on-site N2 solution. The Nitrogen Generator uses two beds of CMS to separate compressed air into a high-pressure nitrogen product stream and low-pressure oxygen enriched waste stream. Therefore, CMS is very crucial for nitrogen generator, but water, oil, and granules need to be removed before entering into the nitrogen generator.

PSA Nitrogen Generation System Technical Features
  • Principle: Passage of compressed air through a bed of carbon molecular sieve (CMS) using pressure swing adsorption technology, the most reliable on the market
  • N2 flow: 5-5000 Nm³/h
  • O2 purity: 1% to 10 ppm
  • On-line monitoring instrument
  • Digital hours counter with audible and visual maintenance indicator
  • Economy mode option: Via pressure to enable compressor shutdown and start-up when nitrogen supply is not required
PSA Nitrogen Generation System Specifications
ModelNm³/hPurityPower (KW)Overall Size (mm)
PN-15-491599.99%0.52100×1800×2200
PN-22-392299.9%0.52100×1800×2200
PN-35-2953599.5%0.52100×1800×2200
PN-45-294599%0.52100×1800×2200
PN-20-492099.99%0.52200×1800×2200
PN-30-393099.9%0.52200×1800×2200
PN-50-2955099.5%0.52200×1800×2200
PN-60-296099%0.52200×1800×2200
PN-30-493099.99%0.52400×1900×2200
PN-45-394599.9%0.52400×1900×2200
PN-75-2957599.5%0.52400×1900×2200
PN-88-298899%0.52400×1900×2200
PN-40-494099.99%0.52500×2100×2500
PN-60-396099.9%0.52500×2100×2500
PN-100-29510099.5%0.52500×2100×2500
PN-120-2912099%0.52500×2100×2500
PN-50-495099.99%0.52600×2200×2850
PN-70-397099.9%0.52600×2200×2850
PN-120-29512099.5%0.52600×2200×2850
PN-140-2914099%0.52600×2200×2850
PN-60-496099.99%0.52800×2200×2500
PN-90-399099.9%0.52800×2200×2500
PN-160-29516099.5%0.52800×2200×2500
PN-190-2919099%0.52800×2200×2500
PN-80-498099.99%0.5
PN-120-3912099.9%0.53200×1400×2800
PN-200-29520099.5%0.53200×1400×2800
PN-250-2925099%0.53200×1400×2800
PN-100-4910099.99%0.53500×1500×2800
PN-140-3914099.9%0.53500×1500×2800
PN-250-29525099.5%0.53500×1500×2800
PN-290-2929099%0.53500×1500×2800

Note: For more information, please feel free to contact Since Gas System Co., Ltd or send email to us directly.

PSA Nitrogen Generation System Details

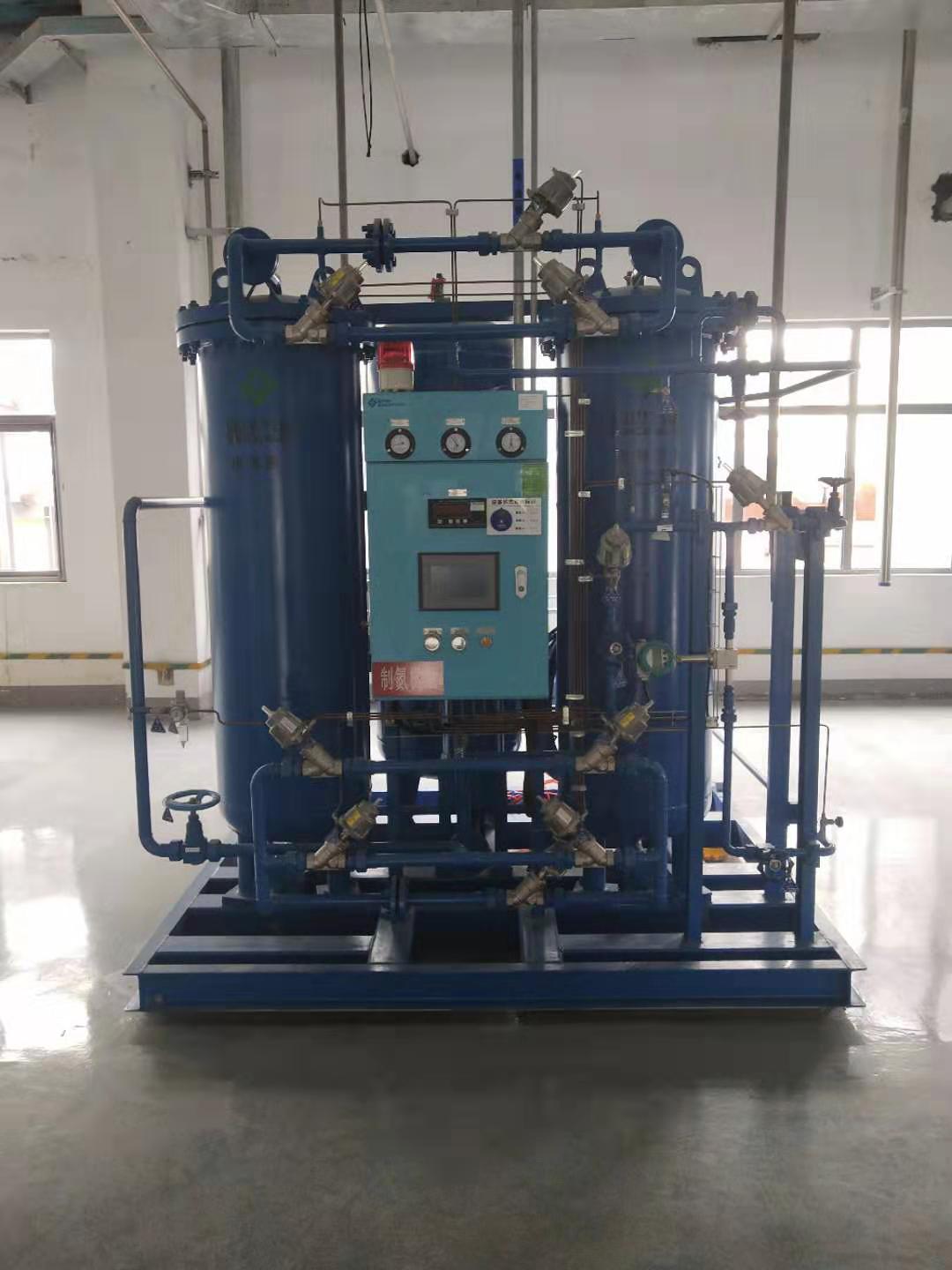

PSA Nitrogen Generation System equipment overview
Quality High Pressure PSA Nitrogen Generation System with PLC Control and 99.9995% Purity N2 Nitrogen Generating Equipment for sale
