CE BW250 Triplex Drilling Mud Pump , Portable Mud Pump Superior Equipment

Categories Drilling Mud Pump
Place of Origin: China
Model Number: BW250
Structure: Piston pump
Power: Mechnical, Diesel/Electric/Hydraulic
Fuel: Diesel
Pressure: High Pressure, 70bar
Product name: Mud Pump
Input speed: 500R/min
most flow rate: 250 L/min
Suction hose diameter: 76mm
Suction height: 2.5m
Weight: 520Kgs
Dimensions: 1000*995*650
Brand Name: JINZHOU SHITAN
Certification: ISO
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Delivery Time: 7-12 days
Packaging Details: Standard Export Package
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CE BW250 Triplex Drilling Mud Pump , Portable Mud Pump Superior Equipment

CE BW250 Triplex Drilling Mud Pump - Portable Mud Pump Superior Equipment
Key Specifications
AttributeValue
Place of OriginBeijing, China (Mainland)
Model NumberBW250
StructurePiston pump
PowerMechanical, Diesel/Electric/Hydraulic
FuelDiesel
PressureHigh Pressure, 70bar
Input speed500R/min
Max flow rate250 L/min
Suction hose diameter76mm
Suction height2.5m
Weight520Kgs
Dimensions1000*995*650 mm
Product Overview

The BW250 is a horizontal triplex reciprocating single-acting piston pump designed for core drilling rig applications. This versatile mud pump offers superior performance in slurry transportation, grouting operations, mine drainage, and long-distance water supply applications.

  • Four gear shifts for adjustable output and drilling depth
  • Suitable for grouting cement slurry or drilling machine operation
  • Widely used in railway construction, hydraulic engineering, metallurgical projects, building construction, and geological exploration
  • Low energy consumption with flexible operation
  • High-quality durable components with minimal wearing parts
  • Environmentally friendly operation with reduced noise and dust
Technical Specifications
ParameterValue
TypeHorizontal, triplex, reciprocating, single acting piston pump
Stroke100mm
Bore80mm | 65mm
Pump speed (s.p.m)200 116 72 42 | 200 116 72 42
Output volume (l.p.m)250 145 90 52 | 116 96 60 35
Discharge pressure (Mpa)2.5 4.5 6.0 6.0 | 4.0 6.0 7.0 7.0
Volumetric efficiency85%
Mechanical efficiency85%
Total efficiency70%
Input power/speed (kw/r.p.m)15/1500
Multiple grooved pulley D.P (mm)410(B groove*5)
Model Comparison
ModelBW150BW160BW250BW320
Max. Flow rate150L/Min160L/Min250L/Min320L/Min
Max. pressure7Mpa10Mpa6Mpa8Mpa
Power7.5KW11KW15KW30KW
Inlet pipe diameter51mm51mm76mm76mm
Outlet pipe diameter32mm32mm51mm51mm
Weight480kg560kg760kg1000kg

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

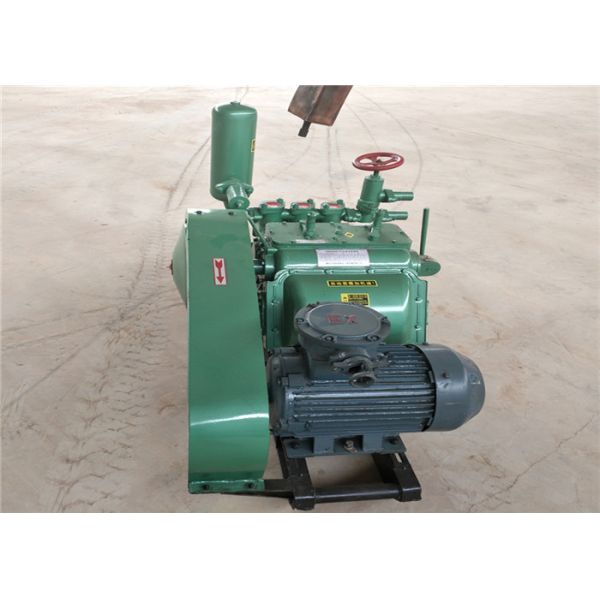

BW250 Triplex Drilling Mud Pump in operation
