YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter

YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter

Description Of Low Pass EMI Filter:

Low Pass EMI Filter is an electronic component to reduce or eliminate unwanted high frequency electromagnetic interference from electrical circuits.It is usually made up of inductors, capacitors, resistors and metal enclosures.

Our Advantages In The Field Of EMI Filter:

1. After years of development, our Low pass emi filter has obtained cUL, TUV, CQC, CE, ROSH certification, complete product certification, quality assurance

2. Cooperate with domestic first-class scientific research laboratory, provide free EMC rectification technical support, samples; free conduction test.

3. We have a professional R & D team, the core team members have more than 10 years of experience in EMI solutions.

Characteristic:

(1) Voltage Rating............................................................................................115/250VAC

(2) Current Rating:

A.@115VAC............................................................................................... 20A RMS Max.

B.@250VAC............................................................................................... 20A RMS Max.

(3) Oprating Frequency:50/60Hz

(4) Leakage Current: each line to ground

A. 115VAC/60Hz........................................................................................... 0.4mA Max.

B. 250VAC/50Hz...........................................................................................0.8mA Max.

(5) Hipot Rating(for one minute)

A. Line to ground............................................................................................ 2250VDC

B. Line to line.................................................................................................. 500VDC

(6) IR: 50M ohm A7 500VDC any input or output to ground

(7) Temperature Range: -25℃~+85℃

Parameter Of Low Pass EMI Filter:

Model No.	Rated Current @40°C	Terminal Options			Medical equipment 5	Leakage current 250V/50Hz	Electrical Schematic	Rated Voltage(V)	Operating Frequency(Hz)
YB21D1-1A-x(5)	1A	-	-	W	5	<5μA	Fig.2	115/250V	50/60Hz
YB21D1-2A-x(5)	2A	-	-	W	5		Fig.2
YB21D1-3A-x(5)	3A	-	-	W	5		Fig.2
YB21D1-4A-x(5)	4A	-	-	W	5		Fig.2
YB21D1-6A-x(5)	6A	-	-	W	5		Fig.2
YB21D2-6A-x(5)	6A	Q	S	W	5		Fig.2
YB21D2-8A-x(5)	8A	Q	S	W	5		Fig.2
YB21D2-10A-x(5)	10A	Q	S	W	5		Fig.2
YB21D2-15A-x(5)	15A	Q	S	-	5		Fig.2
YB21D3-8A-x(5)	8A	Q	S	W	5		Fig.2
YB21D3-10A-x(5)	10A	Q	S	W	5		Fig.2
YB21D3-15A-x(5)	15A	Q	S	-	5		Fig.2
YB21D4-10A-x(5)	10A	Q	S	W	5		Fig.2
YB21D4-15A-x(5)	15A	Q	S	-	5		Fig.2
YB21D4-20A-x(5)	20A	Q	S	-	5		Fig.2
YB21D5-15A-x(5)	15A	Q	S	-	5		Fig.2
YB21D5-20A-x(5)	20A	Q	S	-	5		Fig.2
YB21D5-30A-x(5)	30A	-	S	-	5		Fig.2
YB21D6-20A-x(5)	20A	Q	S	-	5		Fig.2
YB21D6-30A-x(5)	30A	-	S	-	5		Fig.2

YB21D4-15A-Q EMI Filter Picture:

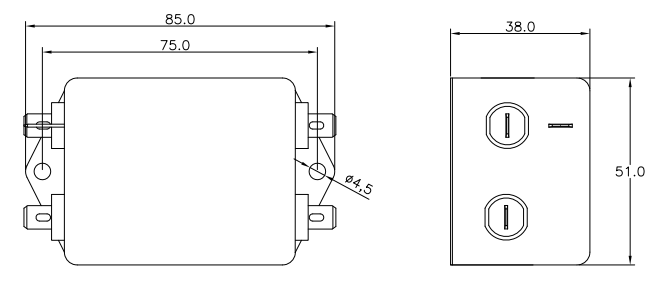

Physical Dimensions:

Electrical Schematic:

Our Certificates:
