Yn27c Pionjar 120 Jack Hammer Petrol Rock Drill Machine

Categories Pneumatic Rock Drill
Model Number: YN-27C
Place of Origin: China
MOQ: 1pcs
Price: $300-$400/piece
Payment Terms: Western Union, L/C, T/T

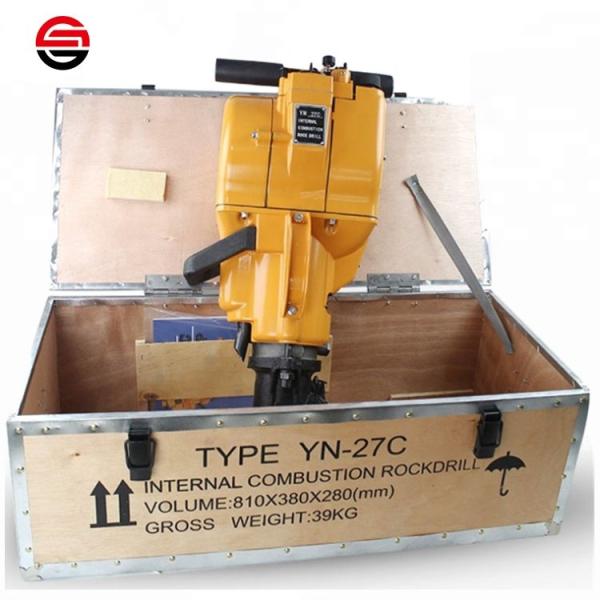

Packaging Details: wooden case
Brand Name: China
Certification: ISO9001
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

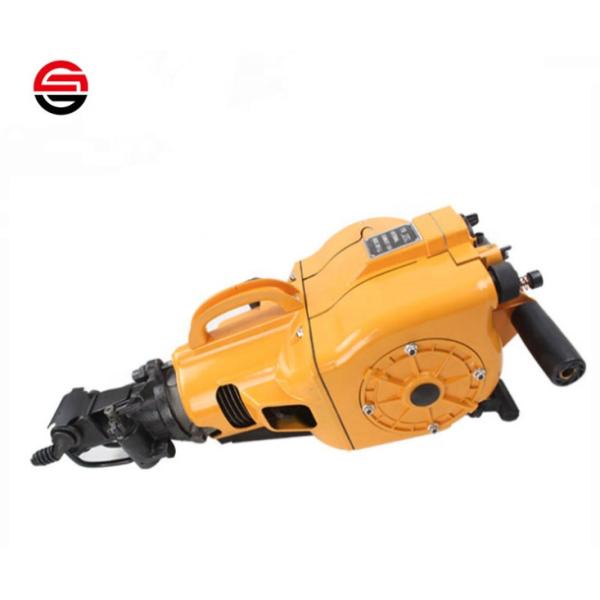

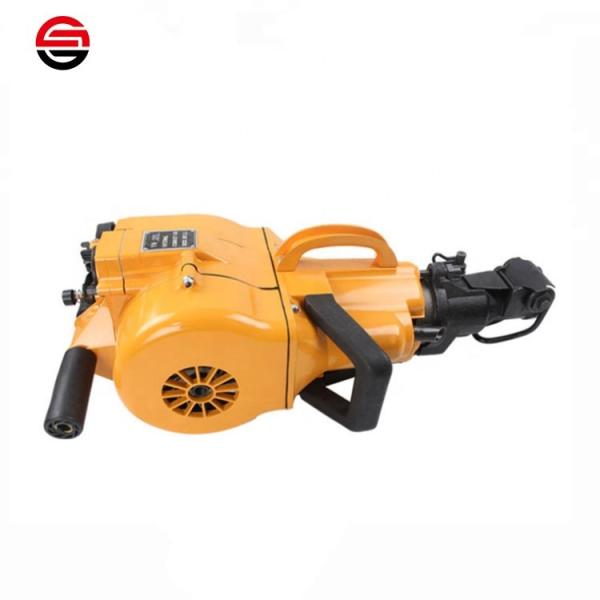

Yn27c Pionjar 120 Jack Hammer Petrol Rock Drill Machine

yn27c pionjar 120 jack hammer petrol YN27C rock drill machine


Inernal Combustion Rockdrill
model nameYN27C
Weight27kg (including wooden case:41KG)
dimension746*315*229mm (including wooden case:810*380*280mm)
Fuel consumptionless than 0.12L/min
type of enginesingle cylinder, air cooled two strokes
Cylinder diameter*stroke of piston58*70mm
Rotating speed of enginemore than 2450r/min
displacement of engine piston185cm^3
type of carburetorhand needle valve, no floating type
Ignition systemcontrollable silicon/ contactless system
Drilling speedmore than 250mm/min
Max drilling depth6M
Tank capacitymore than 1.14L
mixture ratio of gasoline and lubricating oil(in volumes)81
end of drill rod dimensions22*108mm
Rotating speed of drill rodmore than 200r/min
Clearance of spark plug1.5mm

Internal Combustion Rock Drill Packing list
Serial No.DesignationQuantity
A. Machine & Technical document with machine
1Internal Combustion Rock Drill1 Unit
2Service manual1 pc
3Certificate1 pc
4Packing list1 pc
B. Spare Parts attached the machine
1Hexagonal seal ring2 pcs
2O-ring 92*2.61 pc
3Olive spring6 pcs
4Needle6 pcs
5Valve plate2 pcs
6Conical spring2 pcs
7Cylinder pad1 pc
8Spark plug1 pc
9Paper pad for Contrl Part1 pc
10Upper ring of hammer piston2 pc
11Lower ring of hammer pistpon1 pc
12Lower ring for engine pistpon2 pcs
13Upper ring for engine piston1 pc
14Fuel pipe1 pc
15O-ring 30*3.11 pc
16Controller1 pc
17Ignition Coil1 pc
18Starter wire rope1 pcs
19Check valve plate2 pcs
20Pad for Check valve plate2 pc
21Paper pad for Magneto bed plate1 pcs
22Paper pad for Drill chuck cover2 pc
23Drill rod 0.6m1 pc
24Drill bit ø321 pc
C. Accessory tools
1Inner hexagonal wrench S=61 pc
2Spark plug socket wrench S=211 pc
3Tool bag1 pc
4Needle for poking the air way1 pc
5Funnel1 pc
6Double off-set ring spanner S=22*191 pc
7Double head wrench S=10*131 pc
8Sleeve wrench S=131 pc
9Screw driver 751 pc
10"T" Wrench S=8*10*121 pc
11Slider bar of socket wrench1 pc
D. Packing Boxes
1Packing Boxes1 pc

Quality Yn27c Pionjar 120 Jack Hammer Petrol Rock Drill Machine for sale
