P10 P8 High Brightness Front and Back Maintenance Wall Mounted Billboard Led Display

Categories Billboard LED Display
Pixel Configuration: SMD 3535
Module Dimensions: 256*256/320*320
Panel Dimensions: 960*960 per cabinet
Panel Material: Steel/Aluminum
Weight(kg/m2): 65/45
Contrast Ratio: 2,000:1
Origin: China
Display Format: LED DOT Matrix Display
Indoor or Outdoor: Outdoor
LED Chip: Nationstar
Brand Name: Bako Vision
Model Number: BOF8/BOF10
Certification: CE, Rohs, ETL, FCC
Place of Origin: China
MOQ: 1 sqm
Price: $399~999
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000㎡/Month
Delivery Time: 20-25days
Packaging Details: plywood case or flight case
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

P10 P8 High Brightness Front and Back Maintenance Wall Mounted Billboard Led Display

P10 P8 High Brightness Front and Back Maintenance Wall Mounted Billboard Led Display 9-BOF-B-Tia.pdf 8-BOF-F.pdf


SMD 3535 Billboard Advertising Led Display Screen P8 P10 Steel / Aluminum Panel has good uniformity, good stability and good waterproof, it is become more and more popular on the market for its reasonable price and good display effect


Features:

1.Even our outdoor LED display panel come with it sleek design and light weight. It does not add on to much weight on your facade loading. The light weight LED display panels help in reducing your installation cost and time.

2.Front and back service enabled. Simple and quick replacement on the faulty LED display module. Reduced hazardous time.

3.Concave, Convex with any angles

4.Many applications: stock exchange centers, customs, stadiums, studio, shopping malls, railways, airports, harbors,high way, commercial advertising, bus station, entertainment events, business establishments.


Parameters:

ModelBOF-8BOF-10
Physical Pitch8 mm10 mm
Pixel ConfigurationSMD 3535SMD 3535
Pixel Density15,625 pixels/m²
15,360 pixels/panel
10,000 pixels/m²
12,280 pixels/panel
Module Dimensions (W × H) (mm)256 × 256320 × 320
Panel Dimensions (mm)1280 × 960 × 1501280 × 960 × 150
NO .of Modules Per Panel (W × H)5 × 34 × 3
Physical Resolution of Module (W × H)32 × 3232 × 32
Physical Resolution of Panel (W × H)160 × 96128 × 96
Panel MaterialSteel / AluminumSteel / Aluminum
Weight(kg/ m²)65/4565/45
Processing16 bit16 bit
Colour281 trillion281 trillion
Contrast Ratio2,000 : 12,000 : 1
Average Power Consumption360 W /panel360 W /panel
Max Power Consumption900 W /panel900 W /panel
Brightness>6,500 nits>6,500 nits
Refresh Rate>1,920 Hz>1,920 Hz
Vertical Viewing angle160°160°
Horizontal Viewing Angle140°140°
Expected Lifetime100,000 Hours100,000 Hours
ServicingFront / RearFront / Rear
IP Rating (Front/Rear)IP65 / IP54IP65 / IP54
Operating Temp/Humidity-20℃- 50℃ / 10% - 90%-20℃- 50℃ / 10% - 90%
Storage Temp/humidity-20℃- 50℃ / 10% - 90%-20℃- 50℃ / 10% - 90%

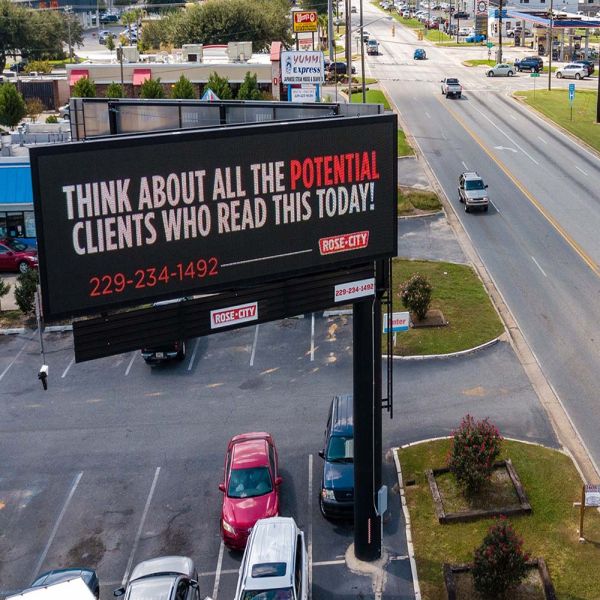

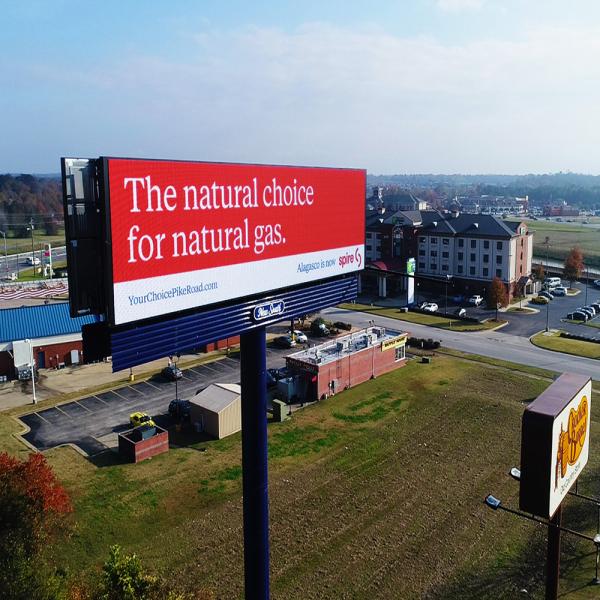

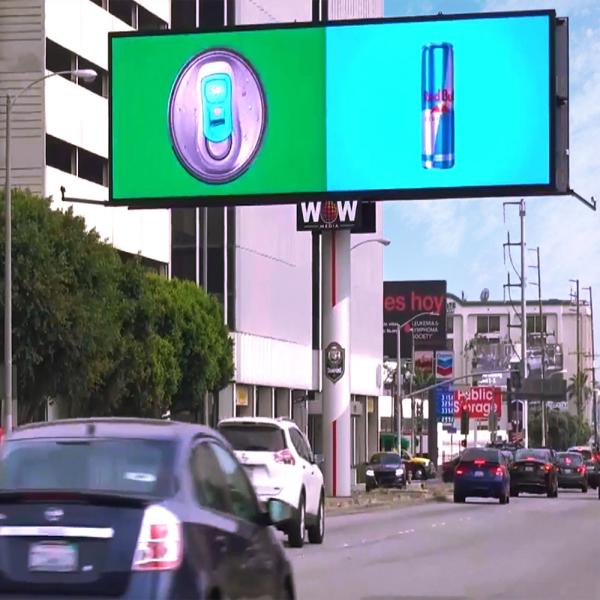

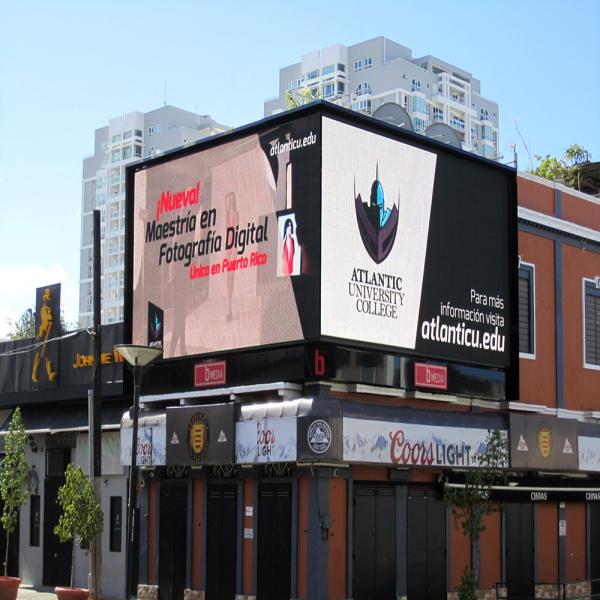

P10 P8 High Brightness Front and Back Maintenance Wall Mounted Billboard Led Display Cases:


About us:

LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.


FAQ:

Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.

Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
