CNC GRINDING MACHINE PCD GRINDING MACHINE FOR DIAMOND TOOLS WITH AUTOMATIC GRINDING WITH ONLINE SYSTEM AND MONITOR
ZT-180 High precision PCD PCBN tools' grinder is a high precision PCD PCBN tools automatic grinder, expecially for indexable inserts and milling cutters.
Features
TECHNICAL PARAMETERS
1. Spindle and Grinding Wheel
Diameter of Grinding wheel | 6A2 150*40*40 |
Spindle Power | 2.2KW |
Spindle Speed | 0-4200RPM adjustable |
Grinding wheel Inclination | -13°-+24° |
Grinding Pressure | 0-450N adjustable |
2. Grind Wheel Oscillation( X axis)
Grinding wheel Height Adjustment | 140mm |
Grinding wheel Oscillation Frequency | 0-45/min adjustable |
Grinding wheel Oscillation Distance | 0-70mm adjustable |
Grinding wheel Oscillation Travel Range | 400mm |

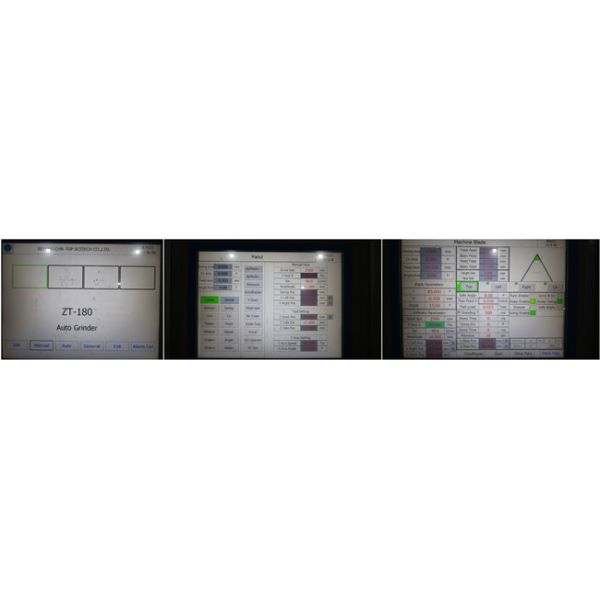

3. CCD Monitor System
Max manification times | 70 times |
CCD measuring system | Online system |
Monitor | 17 inch monitor |
Model | ZT-180 |
---|---|
Tip Radius | 0-100mm |
Grinding Pressure | 0-450N adjustable |
Spindle Speed | 0-4200RPM adjustable |
Grinding wheel size | 150*40*40mm (D*H*T) |
Grinding wheel oscillation frequency | 0-45/min adjustable |
Grinding wheel oscillation distance | 0-70mm adjustable |
Grinding wheel height adjustment | 140mm |
Grinding wheel stroke range | 400mm |
Grinding wheel inclination | -13°-+24° |
Cross table swiveling angle | 0-270° |
Size of cross table | 210*160mm with 4 T slots |
Workable infeed hand wheel division | 0.001mm/ 1 division |
Spindle Power | 2.2KW |
Dimension | 1850*2200*1650mm( L*H*W) |
CHN-TOP is the company offer comprehensive solutions for diamond tools making
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and
service, we have our own R&D
team and production workshop. We can develop our customers' unique
products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and
45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide
one-on-one online video service
according to the needs of customers, and one-on-one service to
solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement
with international big brands,
customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank,
customers can choose goods according
to different needs, we also have self-developed domestic PCD with
high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting
machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of
4-5mm, double-sided cutting maximum
thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
![]() |
