| Categories | Titanium Target |
|---|---|
| Brand Name: | LHTi |
| Model Number: | rack |
| Certification: | ISO9001:2015 |
| Place of Origin: | China baoji |
| MOQ: | 10pcs |
| Price: | USD30-50 per kg |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5 Ton per month |
| Delivery Time: | 10-15 days |
| Packaging Details: | Standard exporting packing: protecting foam and EPE inside and plywood case outside. |
| Product Name: | Titanium anodizing jigs Material: Gr1, Gr2 |
| Application: | Electroplating, anodizing etc. Size: Customized |
| Surface: | Polished |
| Company Info. |
| Baoji Lihua Nonferrous Metals Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Titanium anodizing jigs
What is a titanium anodizing jigs/titanium jig/titanium rack?
Titanium installation in electroplating production is mainly conducted, supported and fixed parts, pendants and electrode connections, so that the current is more evenly transmitted to the parts for electroplating. In some cases, the uniform distribution of the coating can also be compensated by a suspension because the solution properties limit it.
| Item | Anodizing Tianium jig/rack | Size | Customsed size | |
| Material | Titanium | Size(mm)in Bulk Stock | 20/30/50 teeth Can be customized | |
| Grade | Gr1 Gr2 | Performance | Corrosion-resisant |
Chemical composition (Wt%)
| ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
| Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | - | - | Ti |
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min) of Titanium Anodizing Jigs
| ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
| ksi | Mpa | ksi | Mpa | |||
| Grade 1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 30 |
| Grade 2 | Unalloyed Ti ("Pure") 50A -CP2 | 58 | 400 | 40 | 275 | 25 |

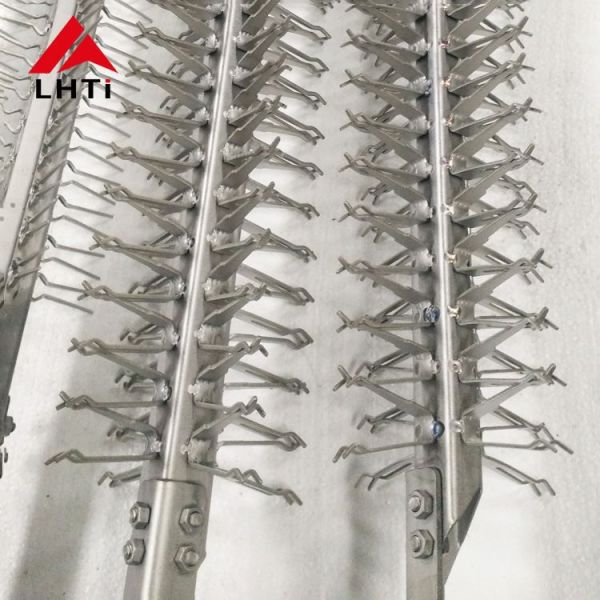

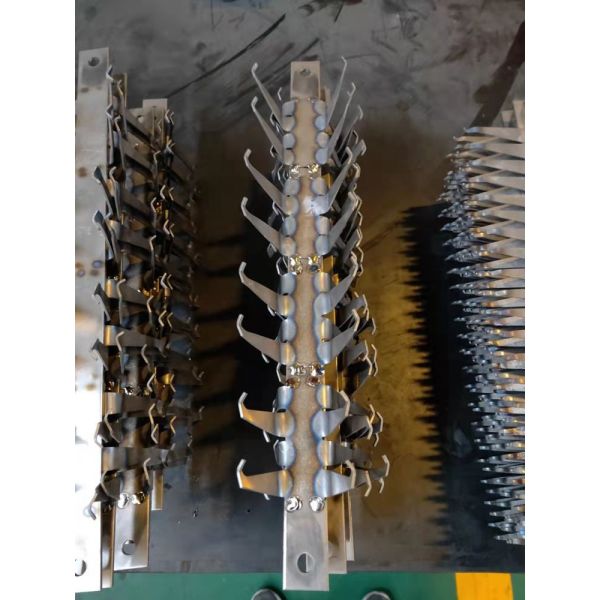

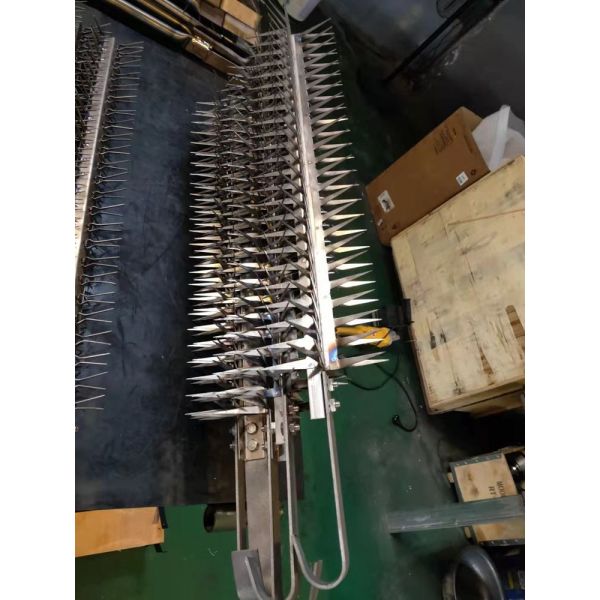

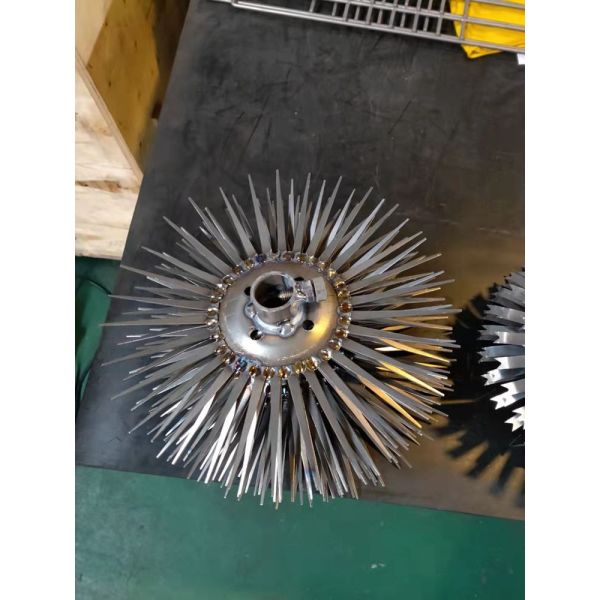

Detailed images:

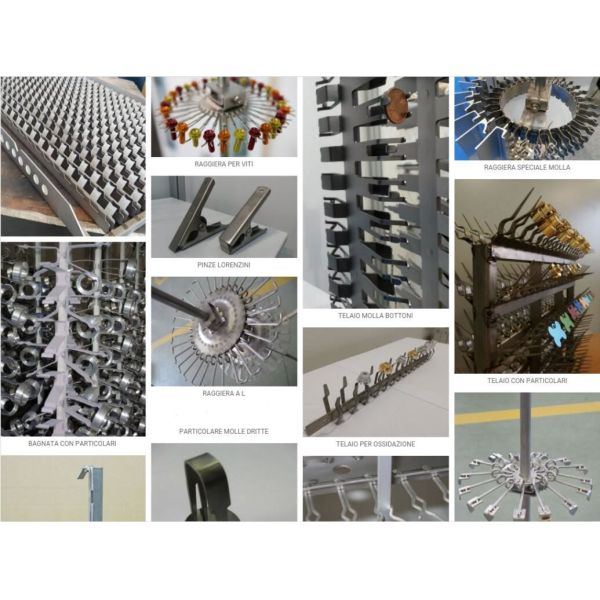

Different styles titanium jigs/racks for andizing/plating/coating:

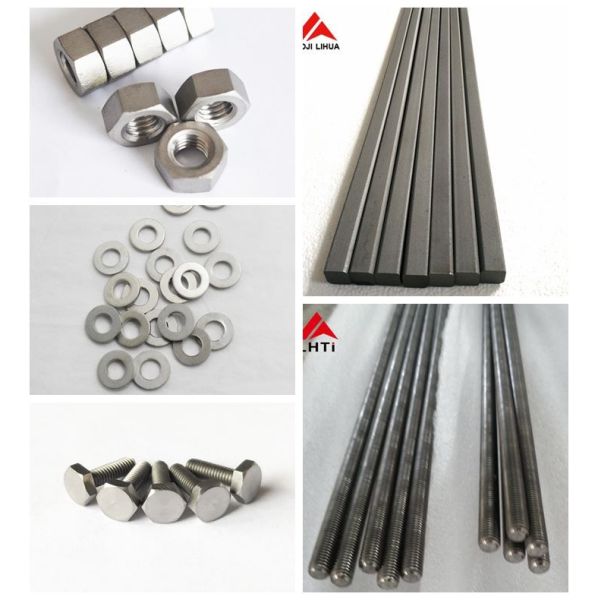

Retaled products:
Packaging and Shipping:

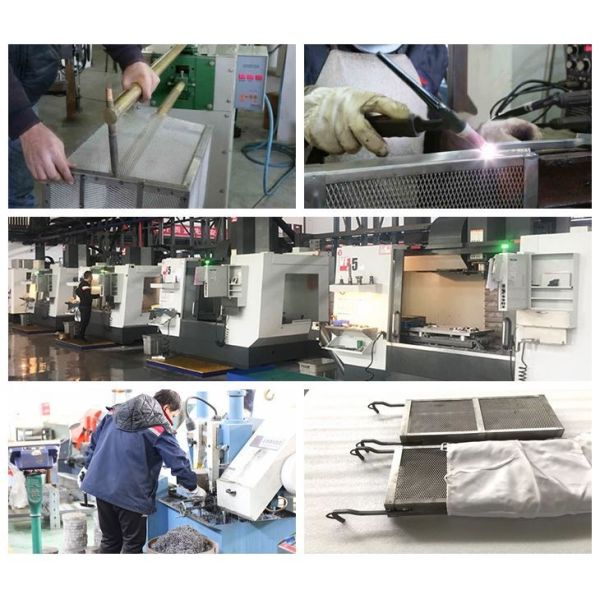

About our company:
