| Categories | UV LED Flashlight |
|---|---|
| Brand Name: | YM |
| Model Number: | UV LED COB Flashlight Module 3634 |
| Certification: | High-tech Enterprise Certificate |
| Place of Origin: | CHINA |
| MOQ: | Negotiate |
| Price: | Negotiate |
| Payment Terms: | T/T |
| Supply Ability: | 100000 |
| Delivery Time: | 7-10 work days |
| Packaging Details: | Carton |
| Product Name: | UV LED COB Flashlight Module |
| Power: | 72W High Power |
| Voltage: | 20-24V |
| Current: | 1-3A |
| Color: | UV |
| Led light source: | 365nm 395nm |
| Company Info. |
| shenzhen yuanming co., ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
72W UV LED Flashlight COB Module UV Curing Flashlight Module 385nm 395nm

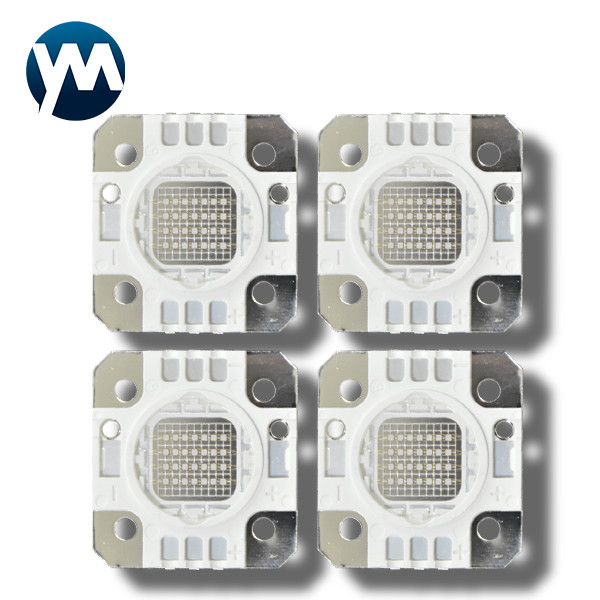

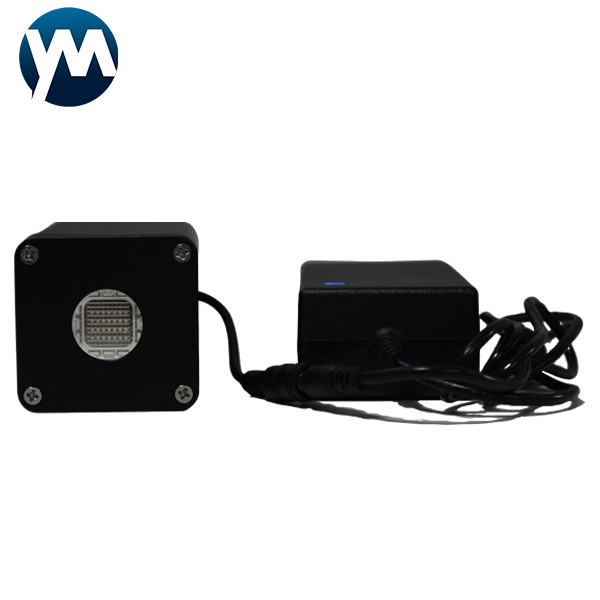

Description of UV LED Flashlight COB Module:
UV LED Flashlight COB Module can be applied with either
Water-cooling or wind-cooling method.
Other curing size and voltage can be designed according your
requirement,
including mix wavelength special wavelength and curing size.
High efficiency and low consumption.
Apply in various printing industries, painting, and glue.
Specification of UV LED Flashlight COB Module:
| Product Name | UV LED Flashlight COB Module 3634 |
| Power | 72W |
| Color | UV |
| Number of lamp beads | 28 pcs |
| Diode type | COB smd |
| Lens Material of Diode | quartz |
| View Angle of the Lens | 180 degree |
| Module size | 36mm*34mm |
| Luminous Size | 20mm*20mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 24V |
| Current | 3A |
| Chip Material | Epileds |
| Encapsulation process | High temperature quartz lens package COB Module |
| Module material | 1.5mm COB Aluminum plate |
| Lifespan (hours) | 20000 |
| Warranty | 1 year |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |


FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED
products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV
equipment.
Q3. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main
manufacturer of LEDs in China.
The payment can be T/T transaction, Trading platform payment.
why choose us
1. Well-known chip material
2. 99.99% gold wire bonding
3. 1 year warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
If you have other needs, please contact us to provide you with the best solution.
|
