AC DC Power Frequency Withstand Voltage Test System With Hipot Testing 220V 380V

Product Description
AC/DC Power Frequency Withstand Voltage Test System Combined Hipot Tester for Complete Electrical Safety Analysis
AC/DC Power Frequency Withstand Voltage Test System Combined Hipot Tester for Complete Electrical Safety Analysis
General Information:

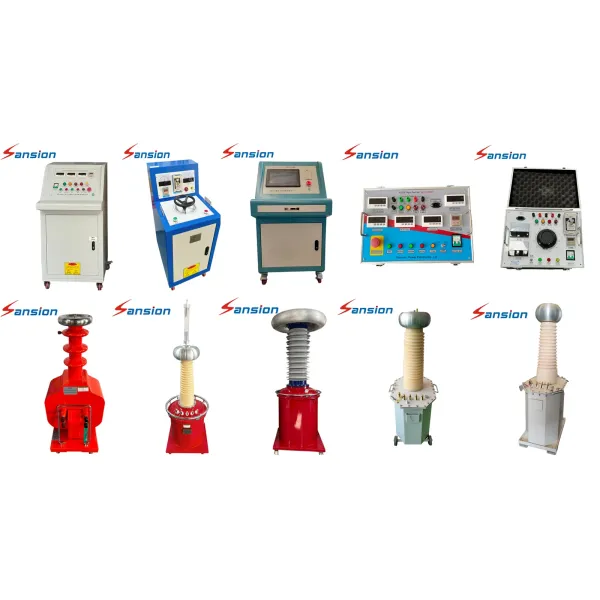

SXTC Series AC/DC Power Frequency Withstand Voltage Test System. This device consists of an oil-immersed testing transformer and a control box, serving as a fundamental test instrument for power plants, supply and distribution systems, and technical institutions. It is designed to perform dielectric strength (withstand voltage) tests at specified voltage levels, evaluating the insulation condition, detecting defects, and verifying the overvoltage endurance capacity of electrical appliances, equipment, and insulating materials.
1: Features:

1. Oil-immersed test transformer selected reliable quality, and good stability materials.

2. The voltage margin is high, corona sound is small, partial discharge is small.

3. Adopting modern insulating materials, small in size, light in weight

2. Specifications:
√ Input voltage: AC 220(380)V (customized)
√ LV output: AC 0-250(430)V
√ LV current: 0-5/10/15/50A (customized)
√ Output capacity: 0-3/5/10/15 kVA (customized)
√ HV output: 0-50/100/150/200 kV (customized)
√ HV current: 0-50/100/150/200/500/1000/2000mA (customized)
√ Timing range: 0-9999S
√ Working temperature: -20ºC to 50ºC
√ Voltage precision: ≤1.5% ±1 digit (F.S)
√ Current precision: ≤1.5% ±1digit (F.S)
3: Main parameters of SXTC-M Control Unit:
Model

Input Voltage (V)
Capacity (KVA)
Rated Output
HV voltmeter
KV/V
Oversize
m3(L×W×H)
Voltage (V)
Current (A)
SXTC-M05
220
0.5
200
2.5
50/100
20×30×20
SXTC-M15
220
1.5
200
7.5
50/100
26×36×24
SXTC-M3
220
3
200
15
50/100
26×42×24
SXTC-M5
220
5
200
25
50/100
60×45×37
SXTC-M6
220
6
200
30
50/100
53×40×60
SXTC-M10
220
10
200
50/25
(50/100)/100
53×40×65
SXTC-M15
380
15
400
37.5
(50/100/150)/100
53×40×70
SXTC-M20
380
20
400
50
(50/100/150)/100
53×43×84
SXTC-M25
380
25
400
62.5
(50/100/150)/100
53×45×90
SXTC-M30
380
30
400
67.5
(50/100/150)/100
65×55×115
SXTC-M40
380
40
400
100
(50/100/150)/100
70×60×115
SXTC-M50
380
50
400
125
(50/100/150)/100
70×60×115
