| Categories | High Speed Freezer Door |
|---|---|
| Power: | 1.5-3.8 KW |
| Maximum Door Size: | Door width: 1000–4000 mm，Door height: 1500–4000 mm |
| Opening/Closing Speed: | 0.6–1.2 m/s (adjustable），0.6 m/s (adjustable) |
| Color: | Blue,Customized |
| Application: | Cold Chain Logistics |
| Door Type: | Cold Storage High Speed Door |
| Voitage: | 380V Or 220V |
| Brand Name: | YOHO |
| Model Number: | High Speed Freezer Door |
| Certification: | ISO 9001/CE |
| Place of Origin: | China |
| MOQ: | IUNIT |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 300 unit per month |
| Delivery Time: | 10~15DAYS |
| Packaging Details: | plywood package |
| Frame Material: | Tracks made of aluminum alloy，Enclosure frame made of 304 stainless steel |
| Total Curtain Thickness: | 18–23 mm |
| Wind Resistance: | Grade 6, upgradable to Grade 8 |
| Company Info. |
| Changzhou YOHO Industrial Door Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

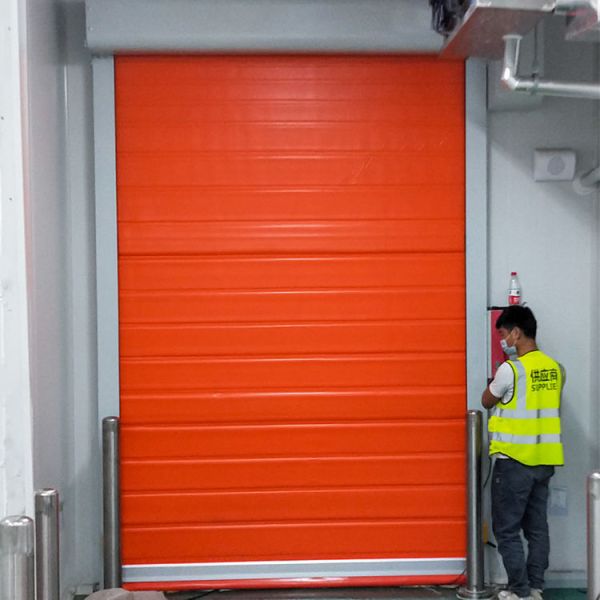

The High Speed Freezer Door is specially designed for cold chain logistics centers, where maintaining strict temperature control and efficient material flow is essential. Ideal for distribution hubs and refrigerated transfer warehouses, this door ensures rapid access while minimizing cold air loss during high-frequency operations.
Built for demanding cold chain environments, the cold chain door features fast operation, durable construction, and superior sealing performance, allowing logistics facilities to maintain consistent product temperatures and smooth internal workflows.
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–4000 mm Door height: 1500–4000 mm |
| Dual-Side Track Heating System | Heating wires are installed inside both side tracks to ensure continuous and stable operation of the door curtain in low-temperature environments. |
| Operating Speed | Opening speed: 0.6–1.2 m/s (adjustable) Closing speed: 0.6 m/s (adjustable) |
| Door Curtain Material | The door curtain features a 3+2 composite structure, with thickened
insulated curtains on both inner and outer layers and an aluminum
foil insulation core. Total curtain thickness: 18–23 mm. |
| Frame Material | Tracks made of aluminum alloy, thickness 2.0 mm Enclosure frame made of 304 stainless steel |
| Sealing Performance | The tracks adopt a nylon + PVC wind-resistant curtain system, combined with an airtight bottom sealing structure, ensuring excellent sealing performance. |
| Wind Resistance | Maximum wind resistance Grade 6, upgradable to Grade 8. |
| Manual Operation | In the event of power failure or system malfunction, the door can be opened manually using a standard wrench. |
| Power Requirements | 220 V / 13 A, single-phase, 50/60 Hz IP54-rated control box, compliant with national electrical safety standards. |
| Insulation Protection | IP54 protection ensures dustproof and waterproof performance even in harsh environments. |
In cold chain logistics, door speed directly impacts workflow efficiency. The high speed cold chain door opens and closes rapidly, allowing forklifts and pallet trucks to move in and out without compromising the internal temperature. The combination of fast operation and high-quality sealing ensures that goods remain within the required temperature range, protecting sensitive products while reducing energy costs.
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Q1: Can this door handle high forklift traffic in cold chain
centers?
Yes, it is engineered for continuous high-frequency operation.
Q2: How does it help maintain temperature control?
Fast operation and tight sealing minimize air exchange and
temperature fluctuations.
Q3: Is it suitable for temperature-sensitive goods?
Absolutely, it ensures consistent cold storage conditions.
Q4: What happens in case of power failure?
The door includes emergency manual operation for uninterrupted
access.
|
|
|
