50 Ohm TNC Male To SMA Female Adapter TNC / SMA-JK Adapter Nickel
Plated Brass
TNC/SMA-JK is a 50Ω RF coaxial adapter that connects TNC male and
SMA female interfaces. Made of brass with gold-plated contacts and
PTFE insulation, it features low insertion loss, low VSWR, and
stable performance up to 6GHz. With an operating temperature range
of -55℃ to +165℃, it is widely used in communications equipment,
base stations, test instruments, aerospace and other RF systems to
achieve reliable signal conversion between different connectors.

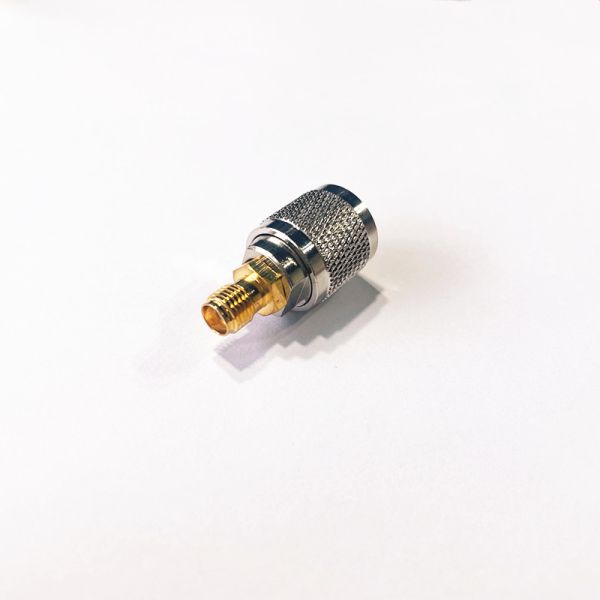

Product display
Product Performance Details
| Product model | TNC/SMA-JK | Contact resistance | Center contact: (TNC):≤1.5mΩ (SMA): 3 mΩ Outer contact: (TNC):≤0.2mΩ (SMA) : 2mΩ |
|---|
| Characteristic impedance | 50 ohm | Body material | Gold-plated brass |
|---|
| Frequency range | DC-6GHz | Insulator | PTFE |
|---|
| Voltage standing wave ratio | ≤1.25 | Central conductor | Gold-plated beryllium copper |
|---|
| Medium pressure resistance | 1000V RMS | Temperature range | -45℃~+125℃ |
|---|
| Dielectric constant | ≥5000MΩ | Durability | ≥500 Cycles |
|---|
Physical product display

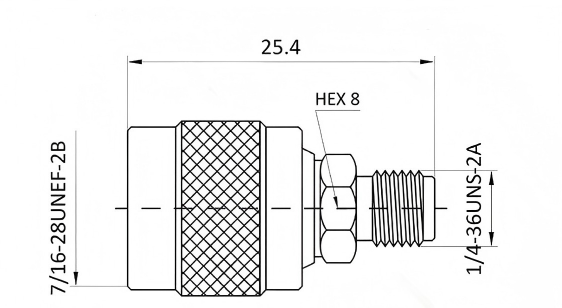

Product external dimensions
Related product recommendations
Display of Strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According
to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass
production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of
r&d, manufacturing and sales of aerospace and commercial RF
microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable
assemblies, miniature rectangular electrical connectors and cable
assemblies, coaxial waveguide converters and cable assemblies,
glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies
DHL.UPS,FedexTX,TNT all year round to ensure our customers receive
their goods quickly with the lowest shipping cost. There are also
air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8
working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card
&T/T)
Q: How long is your warranty?
A: The warranty period is three months.
