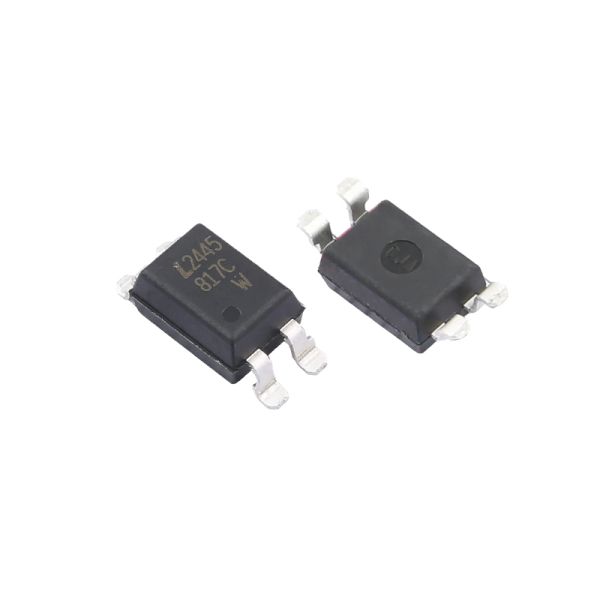

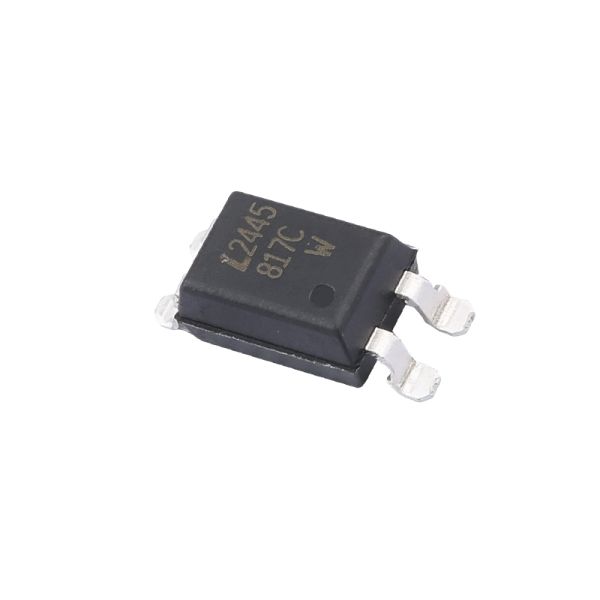

LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package

LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package

LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package
LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package
Categories ADC DAC
Brand Name: LTV-817S-TA1-C
Model Number: LTV-817S-TA1-C
Certification: rohs
Place of Origin: CN
MOQ: 1
Price: consult with
Payment Terms: T/T,Western Union
Supply Ability: 100000
Delivery Time: 5-8days
Packaging Details: T/R
Product Category:: Transistor Output Optocouplers
Mounting Style:: SMD/SMT
Package / Case:: PDIP-4 Gull Wing
Number of Channels:: 1 Channel
Isolation Voltage:: 5000 Vrms
Output Type:: NPN Phototransistor
Contact Now
Company Info.
Shenzhen Filetti Technology Co., LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LTV-817S-TA1-C Transistor Output Optocoupler with 5000 Vrms Isolation Voltage and 50% Current Transfer Ratio in SMD/SMT Package

LTV-817S-TA1-C Transistor Output Optocouplers Optocoupler 50% 5kv 4Pin SMT

FEATURES

  • Current transfer ratio( CTR : MIN. 50% at IF = 5mA, VCE = 5V )
  • High input-output isolation voltage( Viso = 5,000Vrms )
  • Response time( tr : TYP. 4s at VCE = 2V, IC = 2mA, RL = 100 )
  • Dual-in-line package :LTV-817 : 1-channel type
  • Wide lead spacing package :LTV-817M : 1-channel type
  • Surface mounting package :LTV-817S : 1-channel type
  • Tape and reel packaging :LTV-817S-TA : 1-channel typeLTV-817S-TA1 : 1-channel typeLTV-817S-TP : 1-channel type

Safety approval

  • UL 1577, Cert. No.E113898
  • CSA CA5A, Cert. No. 1020087 (CA 91533-1)
  • FIMKO EN/IEC 60950-1, EN/IEC 60065; Cert. No.NCS/FI 24426 M3
  • NEMKO EN/IEC 60950-1,EN/IEC 60065; Cert. No.P08209622/A1
  • DEMKO EN/IEC 60950-1,EN/IEC 60065; Cert. No.314703-02
  • SEMKO EN/IEC 60950-1,EN/IEC 60065; Cert. No. 1119078
  • VDE DIN EN60747-5-5, Cert. No. 40015248
  • CQC GB8898-2011/GB4943.1-2011, Cert.No.CQC10001054420/CQC10001054421

RoHS compliance All materials be used in device are followed EU RoHS directive (No.2002/95/EC).

ESD pass HBM 8000V/MM2000V

MSL class1

Description Symbol Dimensions in mm ( inches )

DescriptionSymbolDimensions in mm (inches)
Tape wideW16 ± 0.3 ( .63 )
Pitch of sprocket holesP04 ± 0.1 ( .15 )
Distance of compartmentFP27.5 ± 0.1 ( .295 )
2 ± 0.1 ( .079 )
Distance of compartment to compartmentP112 ± 0.1 ( .472 )
