Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38

Categories Hose Crimping Machine
Brand Name: MENSION
Model Number: P20 E38
Certification: CE RoHS
Place of Origin: CN
MOQ: 1 Set
Price: Contact Us
Payment Terms: T/T,Western Union,MoneyGram,Paypal
Supply Ability: 1000 Sets Per Month
Delivery Time: 2 - 7 Working Days
Packaging Details: One Plywood For One Set
Crimping Range: 14 - 78mm
Hose Size: 1/4 - 2.0inch
Die Sets: 10
Color: Blue
Max. Opening: 31mm
Crimping Force: 640T
Product Name: P20 E38 Hose Crimper Machine
Application: Workshop
Warranty: 3 years
Power: 4KW 50Hz
Size: 650*550*1360mm
Weight: 310Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38

P20 E38 Hose Pipe Crimping Machine
Product Overview

The P20 hose crimper processes hoses ranging from 1/4 inch to 2 inches in diameter, delivering outstanding versatility for the automotive and hydraulic industries. This machine guarantees precise, professional crimping of hose fittings to create secure, leak‑proof and long‑lasting connections. It comes with interchangeable dies for multiple hose dimensions, fully adjustable pressure and depth controls, and a reliable hydraulic drive system for consistent, high‑performance crimping.

Main Features
  • Crimping Range: Handles hoses from 1/4 inch to 2 inches diameter for versatile applications
  • Interchangeable Dies: Multiple die sets accommodate different hose sizes and fitting types
  • Adjustable Settings: Precise control over crimping pressure and depth for consistent results
  • Hydraulic Power: Provides substantial force for effective and reliable crimping operations
  • Wide Application Compatibility:Covers almost all commonly used hydraulic and automotive hoses, reducing the need for multiple machines.
  • Superior Crimping Precision:Ensures tight, reliable connections with minimal risk of leaks, cracks or premature failure.
  • High Operational Efficiency:Hydraulic power and quick die changes speed up production and cut down setup time.
  • Stable & Durable Performance:Robust construction and adjustable settings maintain consistent quality even under heavy daily use
Technical Specifications
ModelP20 E38 Hose Crimper Pressing Machine
Crimping Range14 - 78 mm
Crimping Force640 T
Hose Size1/4 - 2.0 inch
Max. Opening31 mm
Die Sets10
Die Set TypeMS
System Pressure31.5 Mpa
Accuracy0.01 mm
ControlMS
Standard Voltage220 V
Motor Power3 KW
Length630 mm
Width450 mm
Height1360 mm
Weight310 KG

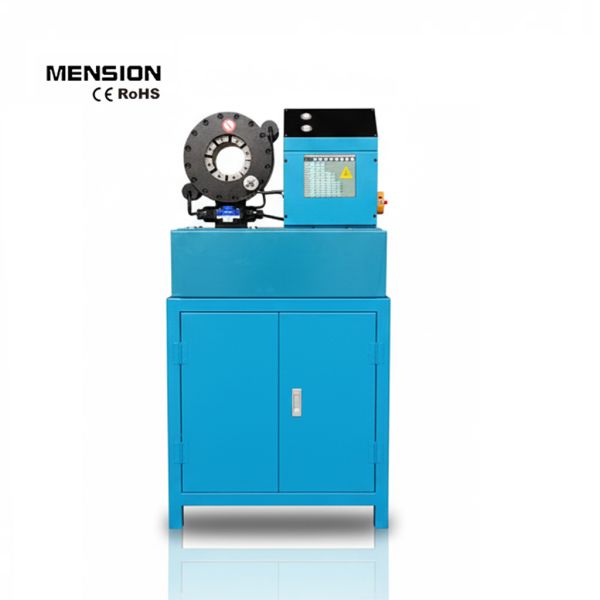

S32 Hose Crimping Machine - Industrial crimping equipment for hydraulic hoses

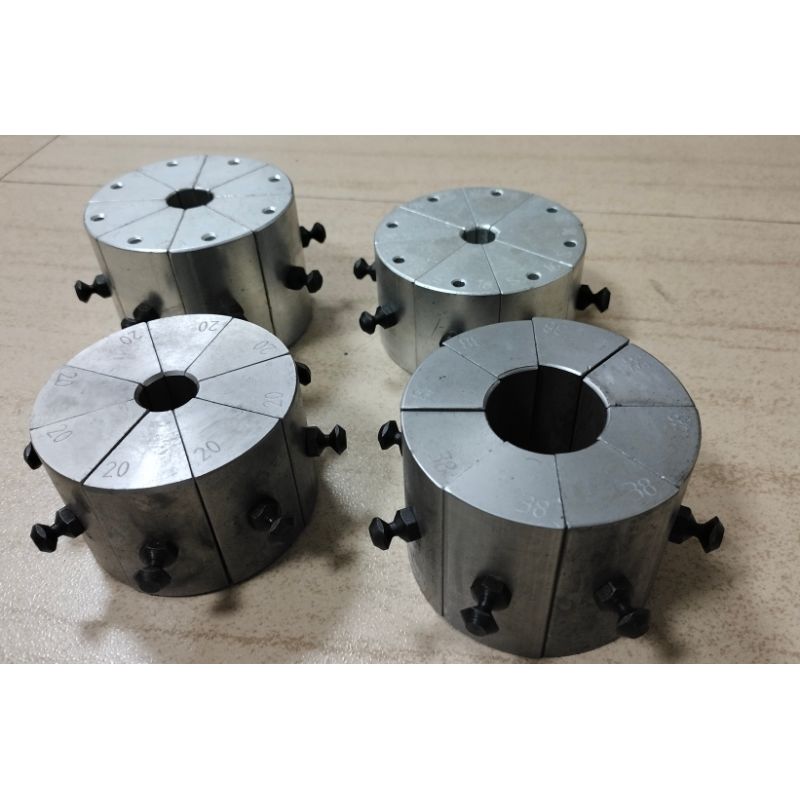

P20 E38 Hose Crimper Die Sets
Die No.Crimping RangeLength
1414 ... 16mm60mm
1616 ... 19mm60mm
2020 ... 22mm60mm
2222 ... 26mm60mm
2626 ... 30mm60mm
3030 ... 34mm70mm
3434 ... 39mm70mm
3939 ... 45mm70mm
4545 ... 51mm70mm
5151 ... 57mm80mm
5454 ... 64mm80mm
6464 ... 78mm80mm
Note:
• "*" indicates non-standard die sets
• Customized die sets are available
• Special voltages 110V, 208V, 240V, 415V are available
Optional Features
  • UC control system

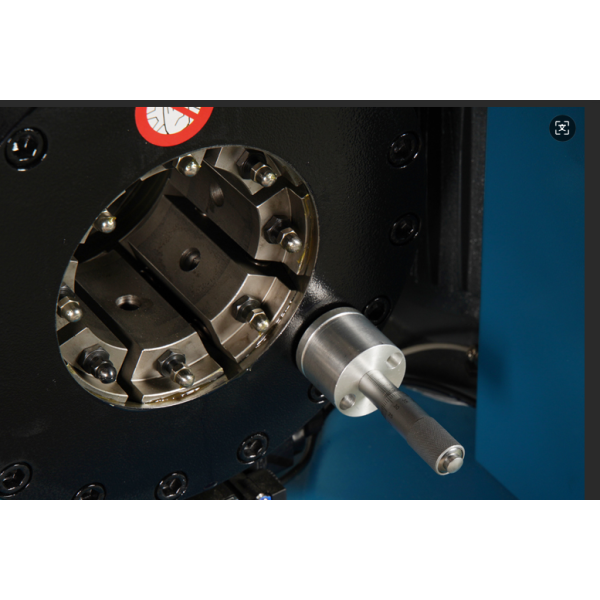

Position limit device


Top grade materials

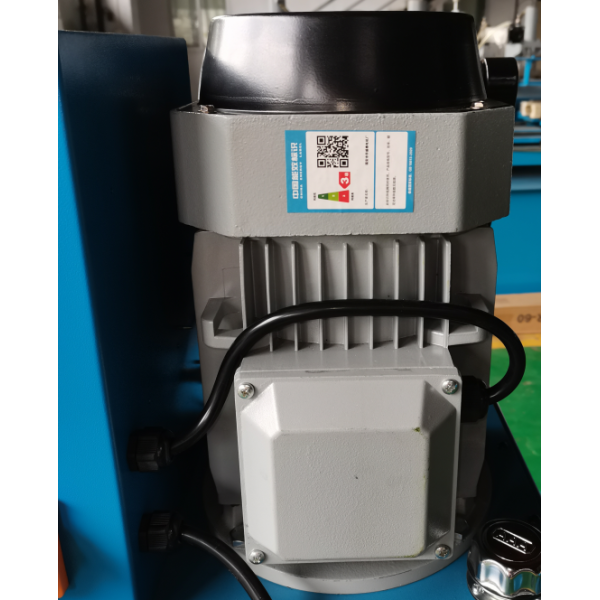

Top Grade Motor

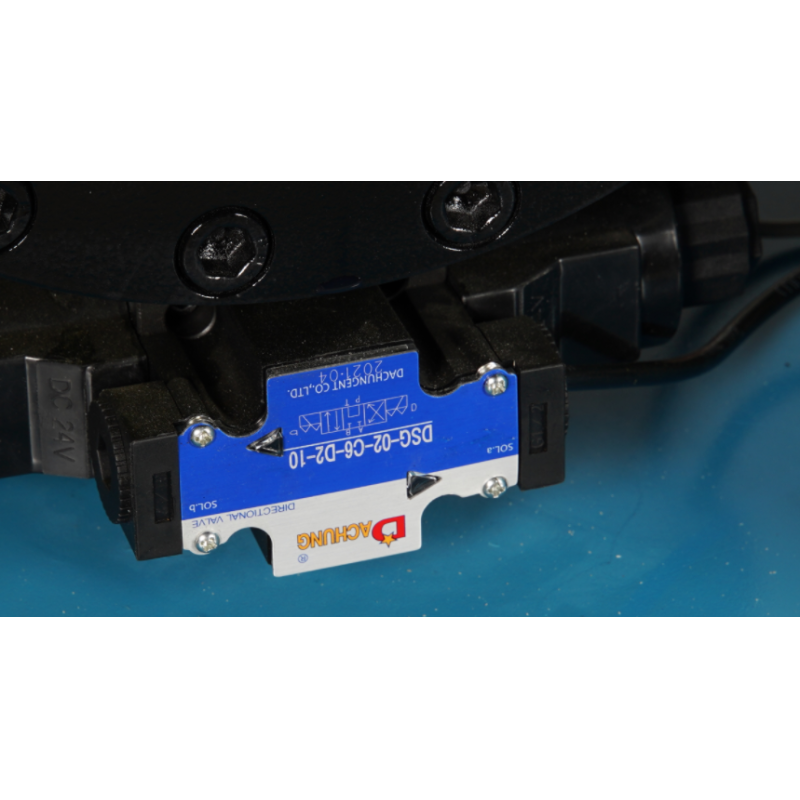

Reliable solenoid valve


Premium mold

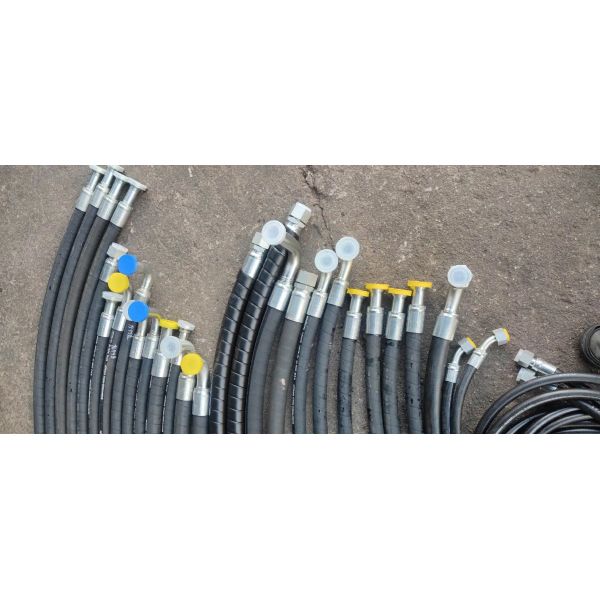

Crimping Applications

The P20 hydraulic hose crimping machine is designed for various industrial applications including hydraulic systems, automotive components, and manufacturing processes requiring secure hose connections.

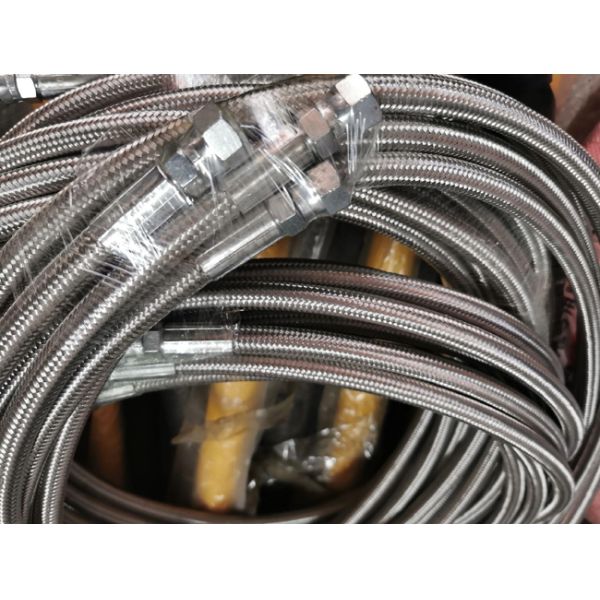

P32 Hydraulic Hose Crimping Machine applications and usage examples
