| Categories | Lithium Polymer Battery Cell |
|---|---|
| Brand Name: | RESKY |
| Model Number: | LP103035 |
| Certification: | CE, RoHS, MSDS, Un38.3 |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 50000pcs/day |
| Delivery Time: | 7-10days |
| Packaging Details: | Paper box |
| Model NO.: | LP103035 |
| Shape: | Square Battery |
| Electrolyte: | Li(Nicomn)O2 |
| Nominal Capacity: | 1100mAh |
| Continuous Discharging Current: | 0.5c |
| Max Discharging Current: | 1c |
| Weight: | 9g |
| Shipping: | UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line |
| Lead Time: | 3-7workdays |
| Specification: | 10*30*35mm |
| HS Code: | 8507600090 |
| Company Info. |
| Shenzhen Resky Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

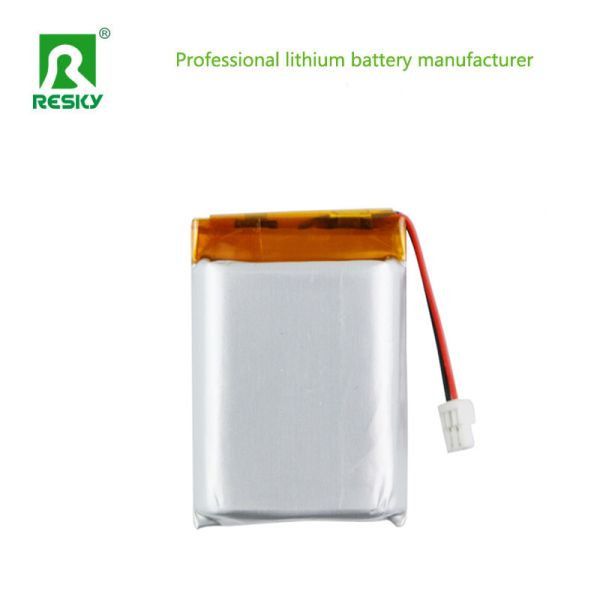

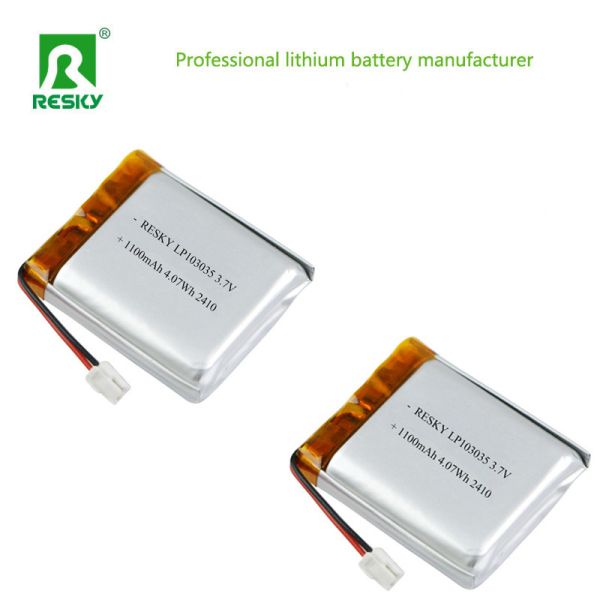

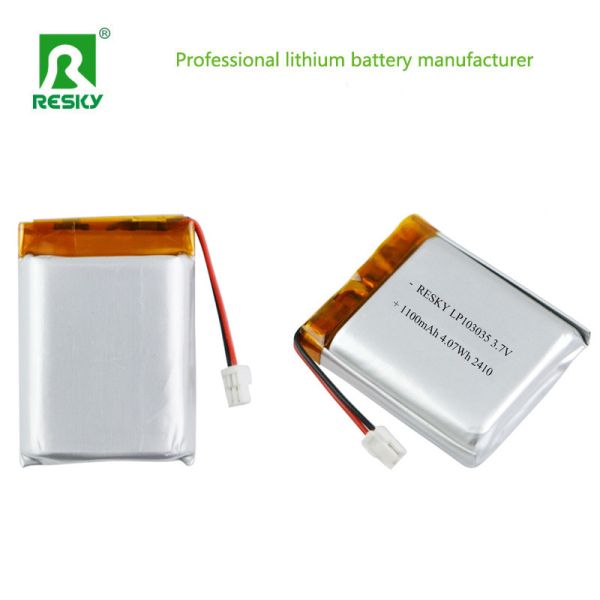

| Battery Type | 3.7V 1100mAh LiPo Battery |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1100mAh @ 0.2C Discharge |
| Charge Current | Standard: 0.5C Rapid: 1.0C |
| Standard Charging Method | 0.5C CC charge to 4.2V, then CV charge at 4.2V until current ≤0.05C |
| Charging Time | Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.) |
| Max Discharge Current | 1.0C |
| Discharge Cut-off Voltage | 2.5V±0.25V (0.2C) |
| Operating Temperature | Charging: 0°C to 45°C Discharging: 0°C to 45°C |
| Storage Temperature | -10°C to +45°C |
| Dimensions | 35±2mm (L) × 30±0.5mm (W) × 10±0.2mm (T) |
High Energy Density: Stores more electrical energy per unit volume or weight, suitable for small devices with strict requirements on battery life and size.
Slim and Customizable: Utilizes aluminum-plastic soft-pack packaging, allowing for ultra-thin designs and fabrication of any shape and capacity, adaptable to ultra-thin or irregularly shaped spaces (such as smartwatches, dashcams, etc.).
Higher Safety: Lower risk of leakage compared to traditional liquid lithium-ion batteries; internal failures typically only result in bulging rather than explosion.
Stable Operating Voltage: Nominal voltage 3.7V, actual operating range 3.0–4.2V, matching the power supply requirements of most low-power ICs, eliminating the need for additional voltage conversion circuits.
Stable Discharge Performance: Stable voltage output prevents sudden device shutdown due to rapid power drop, improving the user experience.
Strong High Temperature Adaptability: Maintains good stability even under high-temperature environments such as in-vehicle exposure and outdoor conditions, less prone to bulging or failure.
|
