H22 Alloy Drill Bit Wear Resistant Impact Resistant For Coal Mining

Categories Coal Bit
Brand Name: HLDRILL
Place of Origin: CHINA
MOQ: 10PCS
Price: Please contact us
Payment Terms: T/T
Supply Ability: 3000PCS Per Month
Packaging Details: Wooden Box
Certification: ISO9001
Delivery Time: 7-15 days
Product Name: H22 Alloy Coal Mine Drill Bit
Product Specifications: H22 Shank
Product Type: Alloy Drill Bit for Coal Mine Rock Drilling
Body Material: High-strength Wear-resistant Alloy Steel
Tilt Material: Carbide Tip
Performance Characteristics: Wear-resistant, impact-resistant, long service life
Application Scenarios: Coal mining, tunnel excavation, rock drilling
Product Advantages: Stable drilling, strong adaptability, high efficiency
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

H22 Alloy Drill Bit Wear Resistant Impact Resistant For Coal Mining

H22 Alloy Drill Bit for Coal Mining with Wear and Impact Resistance
Coal mining alloy drill bits are carbide-based drilling tools specifically engineered for underground drilling operations in coal mines. Featuring a hard alloy core as the cutting component, these drill bits offer exceptional wear resistance and impact resistance, making them ideal for the complex geological conditions encountered in coal mining environments.
Key Features & Construction
  • Carbide Cutting Inserts: The core working end features welded cemented carbide inserts that directly crush coal and rock formations during drilling operations
  • Alloy Steel Body: Constructed from high-strength alloy steel to connect with drill rods and transmit drilling rig torque and thrust
  • Efficient Chip Removal: Specially designed chip removal grooves effectively expel coal and rock debris, preventing drill bit clogging
  • H22 Compatibility: Connection interface designed for H22 drill rods, ensuring quick connections with high strength to withstand high-frequency impacts and torsion
Material Specifications

Alloy Material: YG8C / YG9C / YG10C

Hardness: Over HRA85

Performance: Superior wear resistance compared to ordinary carbon steel with excellent impact toughness to handle hard inclusions in coal seams

Body Material: High-strength alloy structural steel (42CrMo) with heat treatment to withstand high torque, frequent vibrations, and provide exceptional fatigue resistance

Applications
  • Geological exploration in underground coal mines
  • Construction of gas drainage and pressure relief boreholes
  • Drilling for underground water exploration, drainage, and grouting reinforcement
  • Drilling of pilot holes for roadway anchor bolt/cable support

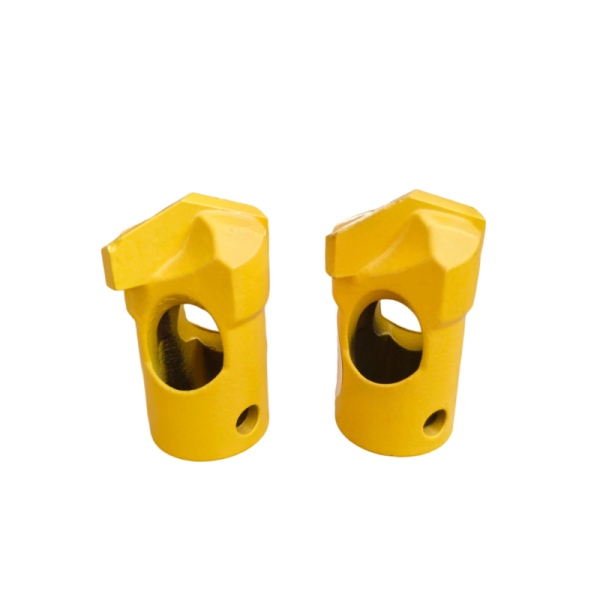

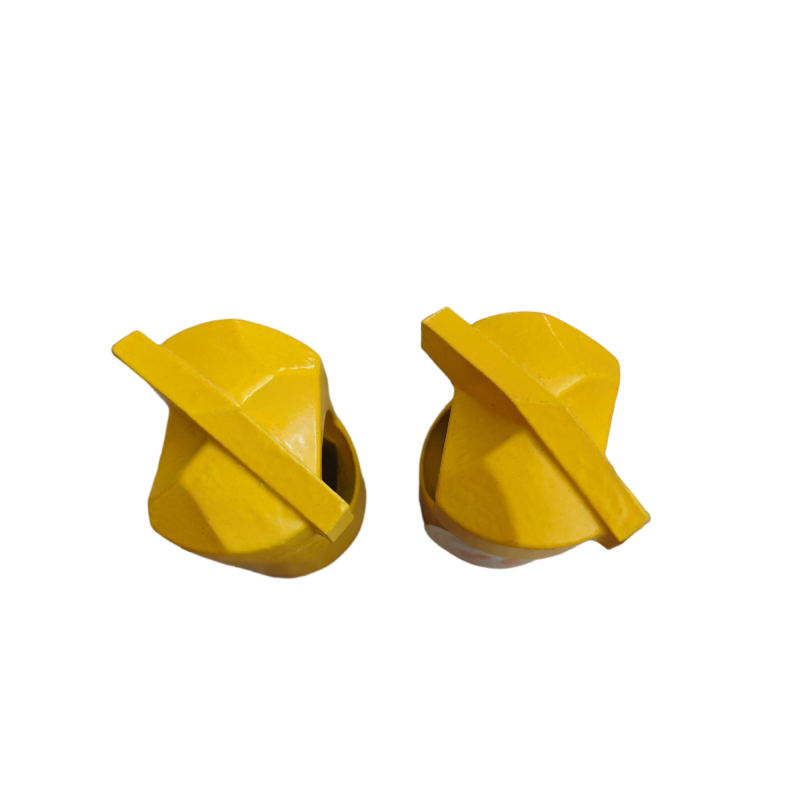

H22 Alloy Drill Bit showing carbide inserts and construction details Close-up view of H22 Alloy Drill Bit cutting components and chip removal grooves
