Industrial 85KW Water Cooling System For Power Transmission And Transformation In New Energy

Industrial 85KW Water Cooling System For Power Transmission And Transformation In New Energy

Industrial 85KW Water Cooling System For Power Transmission And Transformation In New Energy
Industrial 85KW Water Cooling System For Power Transmission And Transformation In New Energy
Categories Water Cooling System
Power Input: AC 380V three phase
Operating Temperature: Minus 20 degrees Celsius to 45 degrees Celsius
Brand Name: YUDA
Model Number: LSF-85kw
Certification: CE ISO9001
Place of Origin: China
MOQ: 1
Payment Terms: T/T
Delivery Time: 30days
Packaging Details: Wooden Case
Main Material: Industrial Grade Aluminum
Control System: Automatic temperature and flow control
Water Flow Rate: Approximately 145 L per minute
Power Supply: AC 380V 50 Hz or Customized
Cooling medium: Pure water and ethylene glycol antifreeze
Rated Flow Rate: 30 to 120 L per minute
Heat dissipation power range: 10-200kW
Cooling Method: Closed Loop Water Cooling System
Contact Now
Company Info.
Wuxi Yuda Heat-exchanger Manufacturing Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial 85KW Water Cooling System For Power Transmission And Transformation In New Energy

85KW Water Cooling System for Power Transmission and Transformation
This advanced 85KW water cooling system is specifically engineered for new energy wind and solar power generation applications, providing reliable thermal management for critical power transmission and transformation equipment.
Application Scenarios
This 85KW Water Cooling System is designed for diverse new energy installations including wind turbine power transmission systems, solar power station substations, and energy conversion units. It effectively cools power transmission and transformation equipment such as step-up transformers, inverters, rectifiers, and electrical cabinets.
The system supports both centralized and distributed power architectures with flexible configuration options for integration into onshore and offshore wind power projects, utility-scale solar farms, and hybrid renewable energy systems, making it ideal for global power transmission infrastructure.
Key Features
  • Modular design with exhaust and drain valves for simplified maintenance
  • Comprehensive system includes main circulating pump, electric three-way valve, filter, heater, expansion tank, and air cooler
  • Advanced temperature and pressure monitoring with independent operation capability
  • Remote control support via terminal and serial port communication
  • Constructed with stainless steel, aluminum alloy, and EPDM materials for superior corrosion resistance
  • Engineered for harsh environments including cold, wind/sand, and salt fog conditions
  • Special corrosion protection solutions for offshore and marine platform applications
Technical Specifications
ParameterValue
Heat dissipation power range10-200kW
Cooling medium flow range3-20m³/h
Temperature difference (inlet vs ambient)≥5℃
Cooling mediumPure water and ethylene glycol antifreeze
Antifreeze concentration0-55%
System static pressure0.15MPa
Design pressure0.8MPa
Operating Conditions
Operating ConditionSpecification
Ambient Temperature RangeMinus 20 to 45 degrees Celsius
Relative HumidityUp to 95 percent non-condensing
AltitudeUp to 2000 meters above sea level
Continuous Operation Mode24 hours per day, 7 days per week
Installation EnvironmentIndoor electrical room or protected outdoor enclosure
Applications
Ideal for heat dissipation in frequency converters, inverters, generators, and rectifiers within wind power generation and photovoltaic power generation systems.

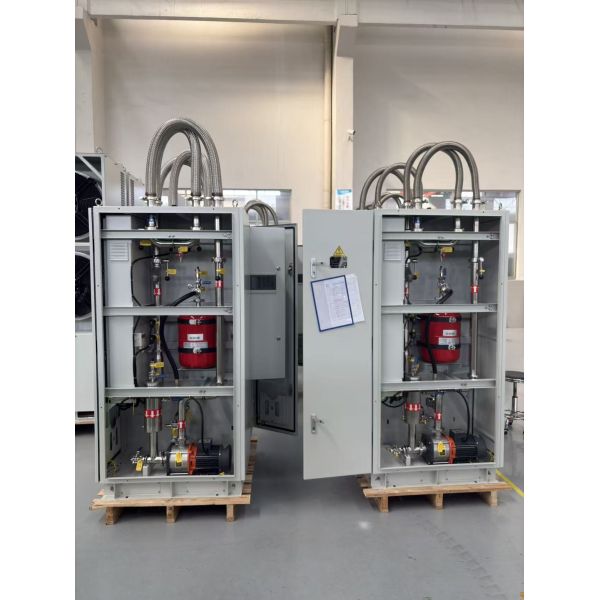

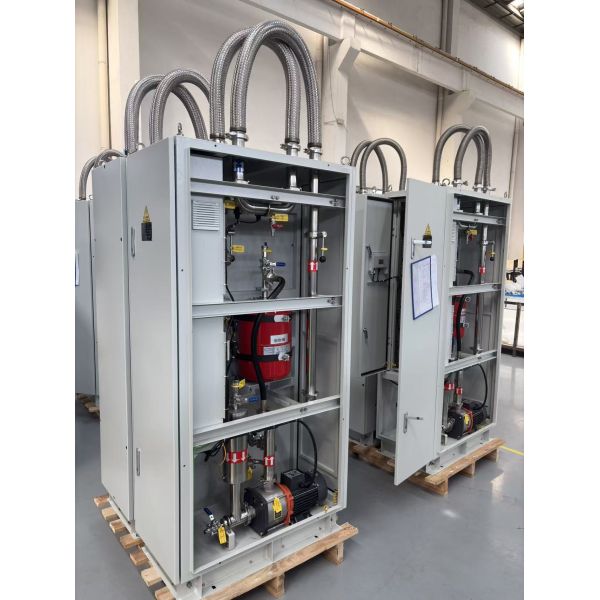

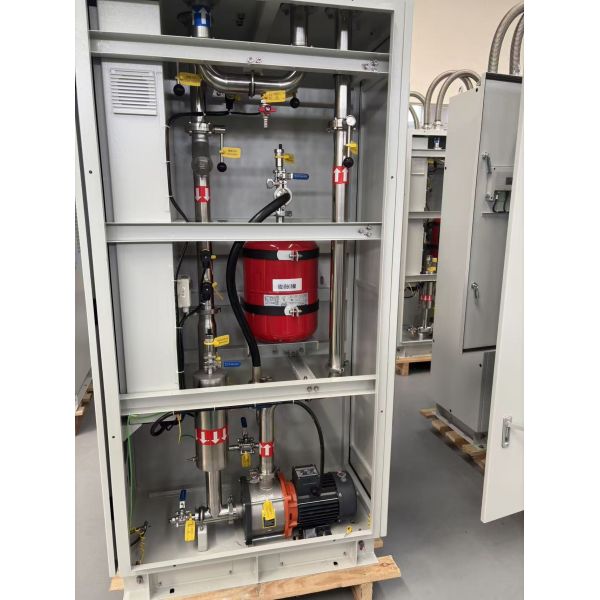

Power electronics water cooling system overview showing complete assembly Close-up view of cooling system components and connections Cooling system installation in power generation facility with equipment integration
