High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine

Categories PCB Depaneling Machine
Place of Origin: Guangdong, China
Brand Name: YUSH
MOQ: 1 set
Price: $13,000-15,000 / set
Weight: 300 kg
Power: 10 kW
Voltage: 220V/110V
Size: 900*600*1450mm
Noise level: 70dB
Motor voltage: 380V
Power options: 4KW-7.5KW
Filtration area: 18M²
Filtration accuracy: 0.3μm
Air flow: 440-530 m³/h
Vacuum degree: -29 to -32 Kpa
Suction diameter: 40/50 mm
Dust capacity: 15 L
Power cord: 8 m
Air pressure: 1Kpa ≥work value≥0.4Kpa
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine

High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine
Precision Laser Cutting Dust Removal
Applicable Working Conditions

This industrial vacuum cleaner is specifically designed for laser engraving machines and suitable for automated equipment, robotic welding, and various production equipment applications.

Product Overview

The YUSH T series laser engraving machine vacuum cleaner is an industrial-grade specialized unit designed to support automation equipment. Operating at 380V with power options ranging from 4KW to 7.5KW, this vacuum cleaner can work continuously for 24 hours. It features standard local/remote control switching functionality and can be permanently installed on large equipment as a fixed vacuum system with equipment linkage capability.

The system includes 6 HEPA filters with a total filtration area of 18M² and filtration precision of 0.3μm. The programmable pulse cleaning design allows users to set automatic cleaning intervals according to specific working conditions.

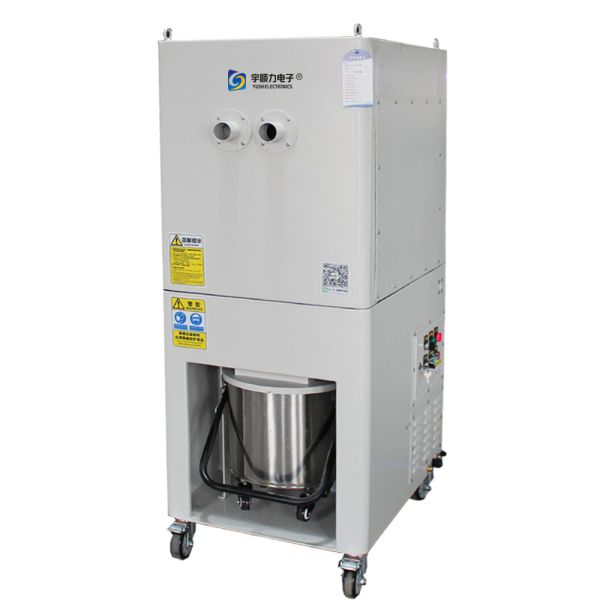

YUSH T Series Industrial Vacuum Cleaner for laser engraving applications
Industrial vacuum cleaner unit for manufacturing environments
Product Highlights
  • Three-phase electric industrial-grade vortex fan (4KW/5.5KW/7.5KW) capable of 24-hour continuous operation with phase loss, overheating, and overload protection
  • Split design with noise reduction treatment for optimal acoustic performance and low noise operation
  • Standard 6 HEPA filters with 18M² total filter area to minimize blockage probability
  • Programmable pulse cleaning system with adjustable cleaning intervals to eliminate manual maintenance
  • External large-capacity dust collector for convenient waste disposal
  • Standard remote/local switch functionality for flexible operation and equipment integration
  • Cooling louver and cooling fan system to enhance heat dissipation and reduce motor load
  • Movable universal wheels with brakes for easy machine relocation
  • Compact footprint with gray-white color scheme compatible with most industrial equipment
  • Reinforced sheet metal construction with laser cutting, bending, welding, grinding, polishing, spraying, and high-temperature baking paint treatments
Industrial vacuum cleaner internal components and construction
Vacuum cleaner filtration system and internal layout
Industrial vacuum cleaner side view and design features
Manufacturing vacuum cleaner unit details
Vacuum cleaner control panel interface
Control Panel
Cooling louver and cooling fan system
Cooling Louver / Cooling Fan
Water separator component
Water Separator
Dual suction ports for industrial applications
2 Suction Ports
Technical Specifications
SpecificationUnitYS-400PYS-500PYS-700P
Power SupplyVAC380VAC/50HZ
Rated PowerkW45.57.5
Air Flowm³/h440530530
Degree of VacuumKpa-29-30-32
Main Filter Area181818
Filtration Accuracyμm0.30.30.3
NoisedB707476
Equipment Suction Diametermm40/5040/5040/50
Barrel CapacityL151515
Power Cord Lengthm888
Air PressureMpa1Kpa ≥ work value ≥ 0.4Kpa
Sizemm900 × 600 × 1450
Cleaning MethodPulse Cleaning
