Semi Automatic Pneumatic Screen Printing Machine For Tapered Glass
Jars

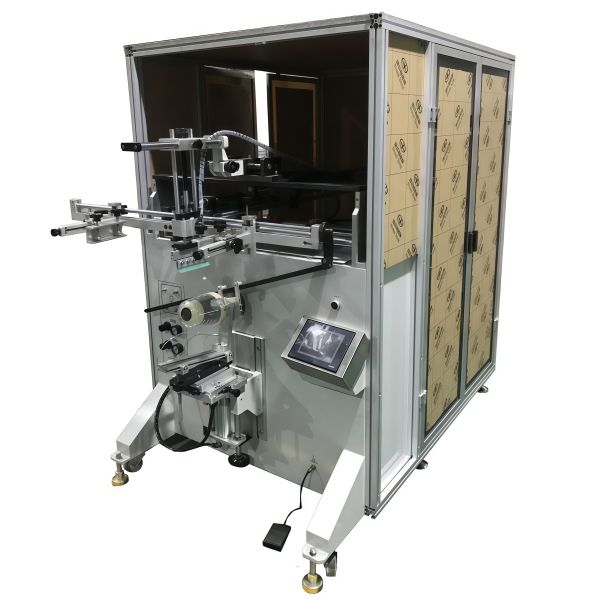

The HA-600R is a specialized fan‑shaped screen printing machine
engineered for products with significant taper. This pneumatic
semi-automatic system delivers ideal printing results with no
pattern distortion, making it perfect for high-precision printing
on various glass containers, food containers, daily chemical
products, medical devices, and more.
Key Features
- Microcomputer-controlled functions with high automation and easy
operation
- Built-in 4-digit automatic counter
- Professional fan‑shaped printing function
- Adjustable printing stroke and speed for diverse printing
requirements
- Worktable with micro-adjustment in vertical, horizontal and angular
directions
- Pneumatic squeegee control with pressure adjustment system
- Stable and reliable microcomputer control system
- Clear LCD display for real-time working status monitoring
- High-quality Korean sensors with fault alarm system
- Convenient foot switch for simple operation and maintenance
- High-grade alloy die-casting parts and wear-resistant imported
bearings & bushings
- Imported pneumatic components from Parker, USA
- Independent speed control for printing and ink return
- Printing head air-blowing function for soft-shaped products
- Special customized fixtures for different products
- Capable of printing flat products via conversion connection
- Multiple operation modes: automatic / semi-automatic / manual
Technical Specifications
| Output | 550 pcs/H |
| Printable Diameter Range | Φ20-120 * 350 mm |
| Power | AC 220V, 50Hz, 60W |
| Air Pressure | 5-7 bar |
| Dimensions | L1300 * W700 * 1550 mm |
| Approximate Weight | 280 kg |
About Hao'an Printing Machinery
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional
manufacturer of automated printing equipment established in 2016.
Our product range includes silk screen printing machines, transfer
printing machines, stamping machines, and peripheral equipment
designed to meet printing requirements for various shapes and
materials.
Our machinery serves diverse industries including cosmetics, daily
necessities, food, medical supplies, and automotive accessories. We
export to multiple countries and regions including Europe, the
United States, South Korea, the Middle East, South Africa, and
Mexico, earning high trust from domestic and international
customers.
We adhere to five core principles: efficiency, excellence, energy
conservation, integrity, and win-win cooperation. Our strong
R&D team customizes machinery according to specific customer
requirements and continuously innovates to make products
intelligent and efficient. Beyond equipment supply, we provide
professional technical training and comprehensive support services.
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer
training.
How will you help us resolve after-sales repair issues if the
machine malfunctions?
In case of machine malfunction, we provide video and email
communication support, with on-site service available when
necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported
environmentally friendly inks.
What certifications can you provide?
We hold ISO9001, SGS, and RoHS certifications.
