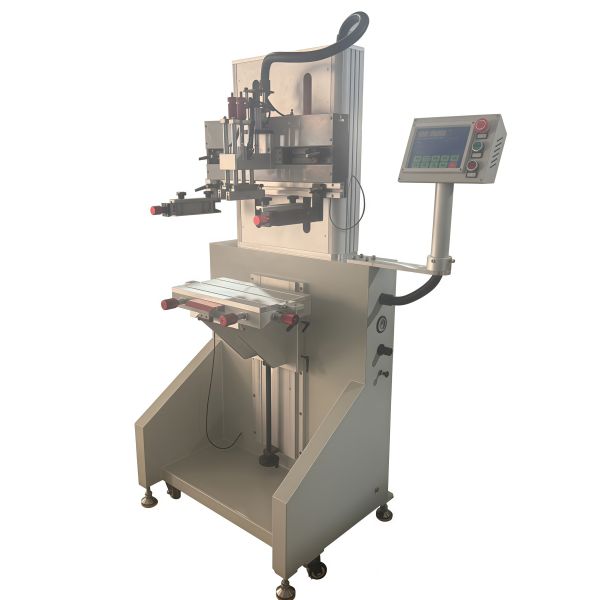

Semi Automatic Screen Printing Machine
This semi-automatic screen printing machine is designed for
printing on flat surfaces including signage, packaging, decorative
panels, and various flat items.
Product Features
- Vertical screen lifting mode with compact, space-saving design
- Microelectronic keyboard control interface with diverse functions
and easy operation
- Pneumatic components from world-famous brands for strong power and
long durability
- Fine-tuning function for workbench and screen arm enables quick and
easy plate alignment
- Special shock absorption device ensures superior and stable
printing performance
- Print head lifting device prevents mesh sticking after printing
(available on select models)
Technical Specifications
| Specification | Details |
|---|
| Speed adjustment | Yes |
| Delay time for each part | Yes |
| Scraping knife, oil scraping up and down strokes | 25mm |
| Maximum printing area | 200mm * 300mm |
| Workpiece height | 300mm |
| Printing speed | 1200-1500 times/hour |
| Power supply voltage | 220VAC 50/60Hz |
| Overall dimensions | 750mm * 950mm * 2000mm |
| Weight | Approximately 200kg |
About Our Company
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional
manufacturer of automated printing equipment, established in 2016.
Our product range includes silk screen printing machines, transfer
printing machines, stamping machines, and peripheral equipment
designed to meet printing requirements for various shapes and
materials.
Our machinery is widely used across multiple industries including
cosmetics, daily necessities, food, medical supplies, and
automotive accessories. We export to numerous countries and regions
including Europe, the United States, South Korea, the Middle East,
South Africa, and Mexico, earning high trust from domestic and
international customers.
We adhere to five core concepts: efficiency, excellence, energy
conservation, integrity, and win-win cooperation. Our strong
professional R&D team can customize machinery according to
specific customer requirements and continuously innovate to make
products more intelligent and efficient. Beyond providing excellent
equipment, we offer professional technical training and
comprehensive support services.
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer
training.
How will you help us resolve after-sales repair issues if the
machine malfunctions?
In case of machine malfunction, we provide video and email
communication support, with on-site service available when
necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported
eco-friendly inks.
What certifications can you provide?
We hold ISO9001, SGS, and RoHS certifications.
