H3C SecPath F1000-G5 Enterprise Grade Firewall
High Performance Multi-Gigabit Security Appliance supporting VPN,
Threat Prevention, and Centralized Management
Product Overview
The H3C SecPath F1000-G5 Series Firewalls address the growing
challenges of network security in today's digital landscape. As
network attacks become more frequent and accessible, these
enterprise-grade firewalls provide comprehensive protection against
evolving threats.
Designed as a 1U standalone appliance based on MIPS/ARM multi-core
processor architecture, the F1000-G5 integrates advanced security
functions including firewall protection, VPN, NAT, DoS/DDoS
defense, while incorporating deep security features such as IPS,
AV, application control, DLP, URL classification, and custom
filtering.

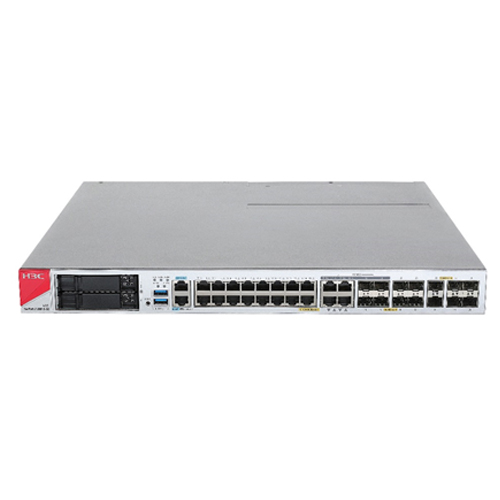

SecPath F1000-S-G5 product exterior diagram

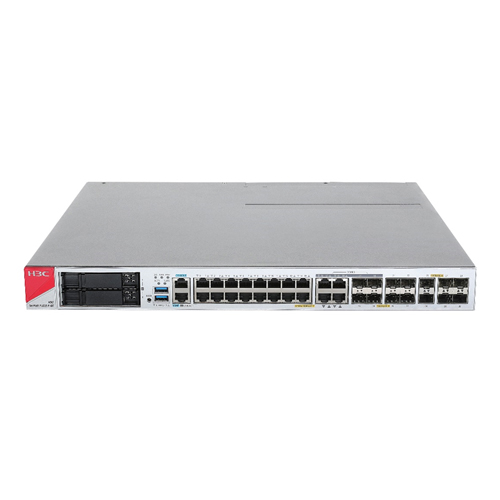

SecPath F1000-A-G5 product exterior diagram
Technical Specifications
| Product Model | F1000-C-G5-LI/ F1000-C-G5 | F1000-S-G5/ F1000-A-G5 | F1000-E-G5/F1000-H-G5 |
|---|
| Interfaces | 1 CON + 1 MGMT + 16 Gigabit Electric + 4 Gigabit Combo + 6 Gigabit
Optical + 20,000 Gigabit Optical | 1 CON + 1 MGMT + 16 Gigabit Electric + 4 Gigabit Combo + 4 Gigabit
Optical + 60,000 Gigabit Optical | 1 CON + 2 MGMT + 14 Gigabit Optical + 8 Gigabit Optical + 80,000
Gigabit Optical |
| USB Interface | 2 | 2 | 3 (with 1 Micro USB) |
| Expansion Slots | 2 | 2 | 4 |
| Storage Media | 480G SSD | 480G SSD | 480G SSD |
| Ambient Temperature | Operation: 0~45°C | Non-working: -40~70°C |
Key Features & Capabilities
Integrated AC Controller Function
- Supports AC management for up to 64 wireless APs
- Simplifies network topology and reduces deployment complexity
- Enables centralized management, access security control, and
traffic analysis
- No performance loss when upgrading through free software
High-Performance Hardware Platform
- Advanced 64-bit multi-core high-performance processor
- High-speed memory architecture
- Carrier-grade reliability with proven track record
Comprehensive Security Protection
- SOP 1:N Full virtualization technology
- Advanced attack prevention against Land, Smurf, Fraggle, Ping of
Death, and DDoS attacks
- Application layer state packet filtering (ASPF)
- User and application-based access control
- Integrated AAA services with multiple authentication methods
Deep Security Inspection
- FIRST engine for high-precision intrusion detection
- Real-time virus protection with stream engine technology
- URL classification filtering with 139 categories and 20+ million
rules
- Comprehensive application layer traffic identification
IPv6 Support
- IPv6 stateful firewall with complete attack prevention
- Dual protocol stack support (IPv4/IPv6)
- Multiple IPv6 transition technologies
- Full routing protocol support for IPv6
Professional Management
- Intelligent security policies with optimization recommendations
- Web-based graphical management interface
- Command-line interface for professional configuration
- Integration with H3C SecCenter SMP security management center
- Comprehensive logging and reporting capabilities
Download Product Brochure
