Float Tilapia Portable Dry Sinking Fish Food Pellet Extruder Machine Floating Fish Feed Making Machine

Float Tilapia Portable Dry Sinking Fish Food Pellet Extruder Machine Floating Fish Feed Making Machine
Float Tilapia Portable Dry Sinking Fish Food Pellet Extruder Machine Floating Fish Feed Making Machine
Categories Fish Feed Pellet Machine
Brand Name: MIKIM
Model Number: 65,70,75,85,95,120,136
Certification: CE
Place of Origin: China
MOQ: 1 Set
Price: $1500.00 - 9500.00/ Set
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 sets per month
Delivery Time: 7-10 work days
Packaging Details: packed by wooden export package or loading by container
Machine Type: Extruder-based production line
Pellet Size: 0.5-15mm
Conditioner: double or three layer conditioner
Power Supply: 380v/220v or customized
Machinematerial: Stainless steel and carbon steel
Feeding Method: Automatic
Weight: 500-2000 kg
Advantage: easy operation
Productname: Fish Feed Pellet Machine
Energy: Electricity
Capacity: 100-2000 kg/h
Contact Now
Company Info.
Tianjin Mikim Technique Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Float Tilapia Portable Dry Sinking Fish Food Pellet Extruder Machine Floating Fish Feed Making Machine

Float Tilapia Portable Dry Sinking Fish Food Pellet Extruder Machine
MIKIM Automatic Dog/Cat/Shrimp Feed Food Making Machine. Floating fish feed pellet extruder machine is feed extrusion equipment. A variety of shapes can be produced, and molds can be customized according to requirements. The product outlet is equipped with a variable frequency rotary cutting device, which can adjust the blade rotation speed to control the cutting speed and length. Feed extruder machine has high output and stable operation. The main components are made of alloy materials and refined through heat treatment. It has the characteristics of high wear resistance and long service life.
Key Features
  • The soft knife is fitted to achieve stepless speed change, which can cut the output into the required length products and is not easy to produce burrs.
  • The design is novel and unique, the structure is simple, easy to install and disassemble, and easy to operate.
  • The screw sleeve and screw are made of wear-resistant and high-temperature alloy steel materials, and are formed by heat treatment, which has the advantages of wear resistance and long life.
  • A unique booster die device is installed inside to ensure the feed yield and quality; and an electric heating device is equipped to improve the feed expansion rate.
  • The main motor adopts a high-quality Y series three-phase motor to ensure strong power.
  • The speed-adjusting feeding device is more convenient to operate, the feeding is uniform, and the machine is prevented from being blocked.
  • The discharge template is easy to replace. If you need feed with different apertures, you only need to replace the required aperture template.
  • The floating granular extruded feed produced can float on the water surface, which is easy to digest for fish and poultry and livestock. It is easy to observe the food intake of frogs and fish by humans, and it will not cause feed waste.
  • It can produce sinking aquatic products, poultry and livestock pellet feed.
  • The screw adopts a split structure, which is easy to clean and replace.
Fish feed pellet extruder machine overview

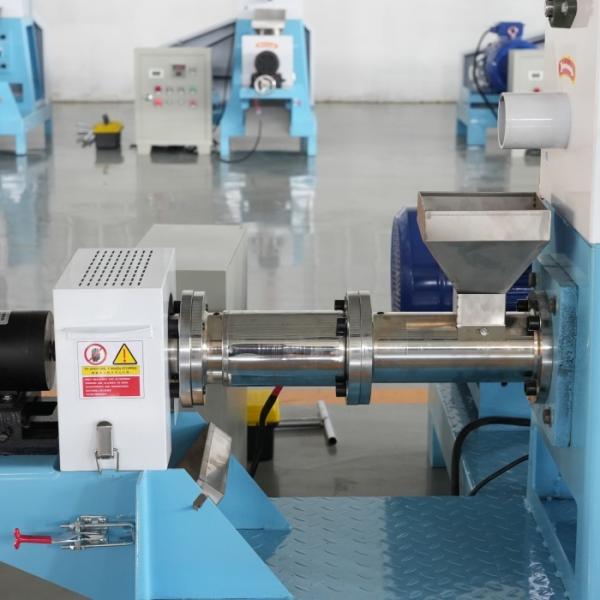

Machine component detail view
Feed production process
Machine operation demonstration
Finished feed pellets
Applications
  • Uses corn, soybean (bean cake) animal scraps, etc. as raw materials, and is suitable for the production of feed with different pet flavors such as dogs, cats, fish, birds, rabbits, shrimps, dogs, cats, minks, foxes, etc.
  • Suitable for farmers and small and medium-sized feed factories. The feed is neatly formed and smooth, it floats on the water surface without sinking for more than 12 hours, does not pollute water sources, and sterilizes to reduce fish diseases.
Final Product Customization
Customized shapes available to meet specific requirements.
Custom shaped fish food pellets in various forms
Various fish food pellet shapes and sizes
Product Specifications
ModelCapacity (kg/h)Main Motor (kw)Feeder Motor (kw)Cutter Motor (kw)Screw Diameter (mm)Machine Size (mm)Weight (kg)
DGP-4040-505.50.40.4φ401.36*1.3*0.85320
DGP-60120-150150.40.4φ601.36*1.33*0.86420
DGP-70200-25018.50.40.4φ701.36*1.33*0.86550
DGP-80300-350221.50.55φ802.3*1.7*1.4720
DGP-90400-450301.50.55φ902.3*1.8*1.41100
DGP-100500371.51.5φ1002*2.8*1.21500
DGP-120600-700551.51.5φ1202.2*2.9*1.21800
DGP-135800-900751.52.2φ1352.2*3.1*1.372000
DGP-1601000-1200902.22.2φ1602.3*3.15*1.382500
DGP-2001800-200013233φ2002.35*3.45*1.653200
Feed extruder machine complete overview
Detailed view of machine components
Complete production line setup
Tianjin Mikim Technique Co., Ltd.
Mikim Machinery is a high-tech enterprise integrating scientific research, design, manufacture, installation and commissioning, and after-sales service. With 35 years dedicated to the feed machinery industry, we have passed numerous certifications including CE and ISO. Our primary focus includes feed pellet machine production lines (hammer mill, mixer, conveyor, feed pellet machine, cooling & vibration system, packing and sealing) and feed extruder production lines (mixer, twin screw extruder machine, dryer, drum seasoning machine, cooling towers, packing machine). We produce high-quality, competitively priced equipment exported worldwide, enjoying a strong reputation with a comprehensive after-sales service system to help customers solve all operational challenges.
Manufacturing facility overview showing production area
Quality control process inspection
Equipment testing and validation
Production line in operation
Finished product inspection and quality check
Packaging and shipping preparation
