New Arrival Smart Pedestrian Access Control Speed Turnstile Gate Nova LA3219S

Product Overview

The Nova LA3219S Smart Pedestrian Access Control Speed Turnstile Gate offers advanced security with intelligent features for modern access control applications.

Functions & Features

Reasonable and reliable design with low noise, smooth operation, and long service life
Anti-tail and anti-reverse pass functions for enhanced security
Card memory settings: configurable "with memory" or "without memory" functions
Automatic reset function: gate returns to locked state if not passed within set time
Infrared anti-clip protection during gate opening and operation
Compatible with IC, ID cards, scanning, and face recognition systems
Two operational modes: open or closed
Multiple working modes including two-way and one-way card reading

Size Drawing

Nova LA3219S Speed Turnstile Gate dimensional drawing and specifications

Technical Specifications

Parameter	Specification
Size	300×160×1200 (mm)
Chassis	Housing: 5mm Aluminum alloy
Movement	Mechanism: Servo Speed Door Door panel: 10mm Transparent PC Pass Lane: 600-900mm
Electronic Control	Control board: Servo control board Motor: Brushless servo 40:1 100W IR sensor: 4 pairs Air switch: 2P
Power Supply	24V 500W / 12V 3A
Accessories	Connection cable: 2×1.0m² RVV Network cable: 5m Both ends with crystal tips
Package	Pearl cotton: Fully encapsulated protective cotton Cardboard box: 360×200×1460

Case Examples

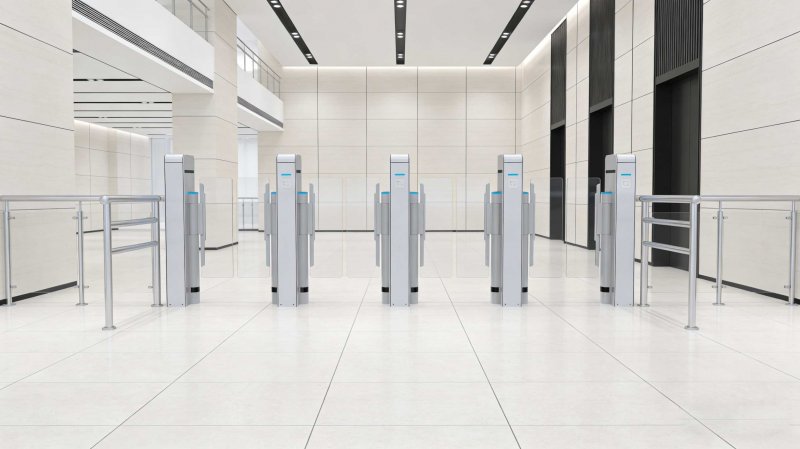

Nova LA3219S Speed Turnstile Gate installation case example 1

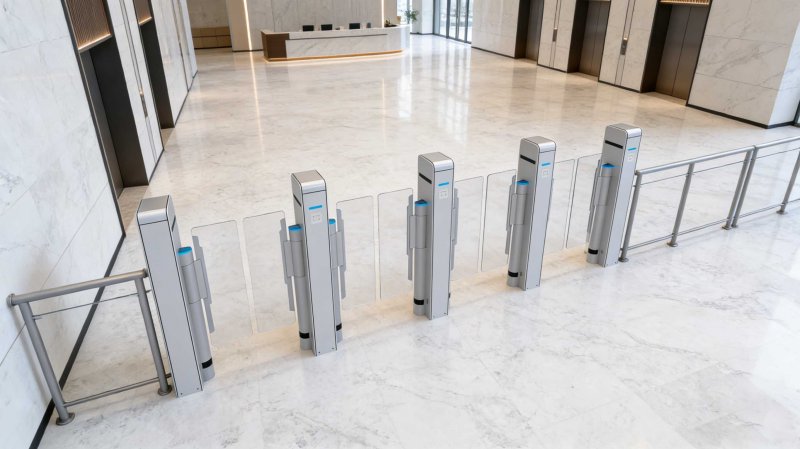

Nova LA3219S Speed Turnstile Gate installation case example 2
