ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine

Categories Bending Test Machine
Brand Name: Infinity Machine
Model Number: C5092
Certification: ISO
Place of Origin: Made In China
MOQ: 1
Price: Negotiate
Payment Terms: T/T
Supply Ability: 200SETS PER MONTH
Delivery Time: 35-40 days after order confirmed
Packaging Details: Clear sheet+sponge+wood carton
Product name: Cable Flex Cycle Testing Machine
Model: C5092
Application: cables cyclic cable bending test machines is suitable for the bending testing of the multi-wires cable, communication cable, earphone cable etc.
Test standard: SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure,
Test amount: 2 PCS
Test speed: 10~60rpm±2cpm (Frequent user of 13rpm)
Angle range: ±90° / 0°~180°
Testing cycles: 1~999,999times
Power: Single phase AC220V or 120V±10%, 50/60Hz
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine

ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines
Model: C5092
Purpose
Road vehicles automotive cables cyclic cable bending test machines are designed for bending testing of multi-wire cables, communication cables, earphone cables, and similar products. The testing method involves short-circuit connecting one end of the cable and fixing it on the rotation plate, applying weight to the cable, then performing left and right rotations to check cable conductivity after specified rotation cycles and evaluate cable quality.
Test Standards
  • ISO 19642-2 Road vehicles -- Automotive cables -- Part 2: Test methods
  • ISO 19642-2:2019
  • ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2--2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure
Specifications
ModelC5092
Test Amount2 PCS
Test Speed10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range90°
Min Display Angle±1°
Testing Cycles1~999,999 times
Guide Wheel RadiusR13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate275mm
Weights100g, 200g, 500g, 1000g (each 2 pcs)
Dimension (W×D×H)1280×724×1320mm
Weight350kg
Power SupplySingle phase AC220V / AC120V 50/60Hz 5A or specified by user
Product Appearance

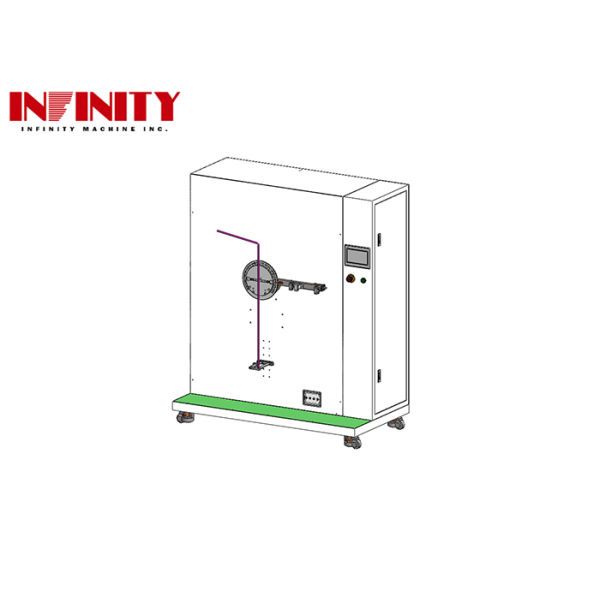

ISO 19642-2 Automotive Cable Bending Test Machine Front View ISO 19642-2 Automotive Cable Bending Test Machine Side View
Packaging and Shipping
Product Packaging:
Automotive cables cyclic bending test machines are securely packaged in wooden crates to prevent damage during transportation. The exterior is clearly labeled with shipping marks for easy identification.
Shipping:
Shipping is handled by reliable, experienced shipping companies to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status throughout the delivery process.
