| Categories | Transformer Protection Relay |
|---|---|
| Brand Name: | OEM |
| Model Number: | OCL-566 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiation |
| Packaging Details: | New original box |
| Short circuit closing current: | 1A |
| Peak withstand current: | 1.3A |
| Rated current: | 20A |
| Working Voltage: | 450V |
| Insulation voltage: | 3000V |
| dielectric strength: | 0.1V/m |
| Main circuit voltage: | 440V |
| Total power consumption: | 1W |
| Rated voltage of the system: | 450V |
| Company Info. |
| OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

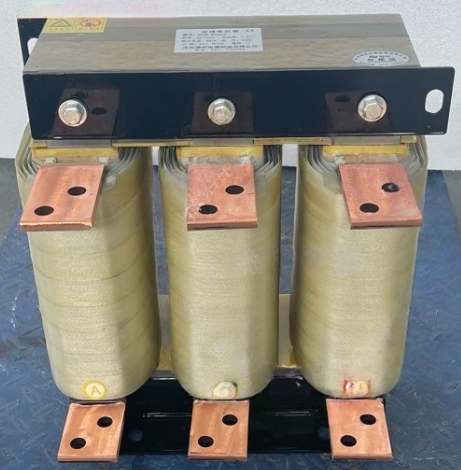

The ACL-249 is a high-performance three-phase AC input reactor specifically designed for 355KW variable frequency drive (VFD) systems with a rated current of 700A. Equipped with a universal output terminal, it combines powerful harmonic suppression, current stabilization, and equipment protection, delivering reliable performance for high-power industrial VFD applications.
Constructed with premium cold-rolled silicon steel cores and high-conductivity oxygen-free copper windings, the reactor delivers low iron loss, low copper loss, and excellent thermal stability. The robust compact structure with advanced insulation technology ensures minimal heat generation during long-term heavy-load operation while complying with international safety and EMC standards (IEC/GB).
Ideal for 355KW VFD systems in diverse industrial applications including large pumps, high-power fans, compressors, heavy-duty conveyors, and precision machine tools. Designed to perform reliably in harsh industrial environments while supporting energy conservation and operational efficiency goals.
|
