Name: 10mm2 25mm 05mm Electrical Cable Wire Copper PVC Insulated Copper Cable
Brand: Minfeng
Price: 0.1 USD

Home > Valve Parts >

10mm2 2.5mm 0.5mm Electrical Cable Wire Copper PVC Insulated Copper Cable

Categories	Electrical Cable Wire
Brand Name:	Minfeng
Model Number:	BVR cable
Certification:	ISO,CE,IEC,TUV,KEMA
Place of Origin:	Hebei, China
MOQ:	100
Price:	0.1-5
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week
Delivery Time:	10 Days
Material:	PVC Copper
Conductormaterial:	Copper
Flame Retardant:	As per customer request
Application:	Building wiring, electrical installations
Meterial:	Solid/Stranded Copper
Jacket Material:	PVC
Operating Temp:	70 degree
Cable Spec:	1.5sqmm,2.5sqmm,4sqmm ,6sqmm to 400sqmm

Contact Now

Add to Cart

Company Info.

Minfeng Cable Group Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

High Quality 10mm² 2.5mm 0.5 mm Electrical Wire Cables

Copper core PVC insulated non-sheathed cable manufactured to high quality standards.

Product Specifications

Product Name	Copper core PVC insulated non-sheathed cable
Standard	GB/T5023-2008 (Equivalent to IEC 60227-1997)
Conductor	Copper
Insulation	PVC
Color	Red, yellow, blue, green, black, white, brown, two-color (yellow-green)
Model	BV BVR
Specification	0.75mm², 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², etc.
Rated Voltage	300/300V; 300/500V; 450/750V
Application	Socket connection line, lighting, switch, air conditioner, distribution box, building wiring, etc.

Service Performance

Long-term working temperature: not higher than 70°C
When laying the cable, ambient temperature should not be lower than 0°C
Minimum bending radius: Bending radius ≥ 4D for cable overall diameter ≤ 25mm; Bending radius ≥ 6D for cable overall diameter > 25mm

Cable Types

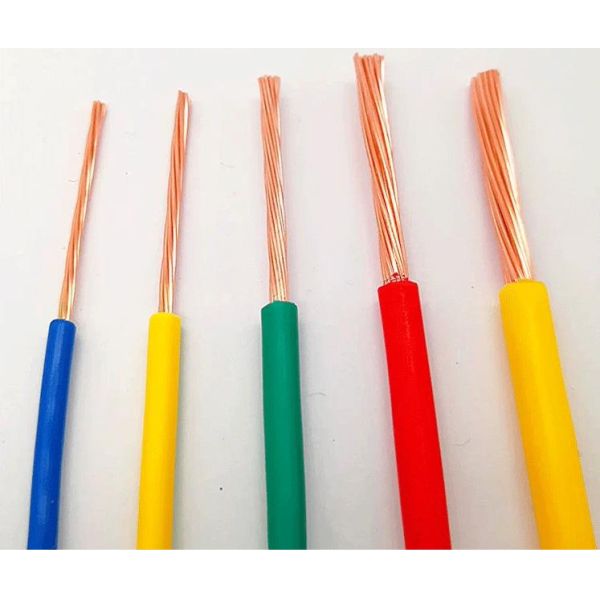

BVR: Multi-core copper wire, soft, easy to construct, low strength, generally used in occasions with slight movement.

BV: Single-core copper wire is hard, inconvenient for construction, and strong. It is generally used in relatively fixed places.

Electric Wire Selection Guide

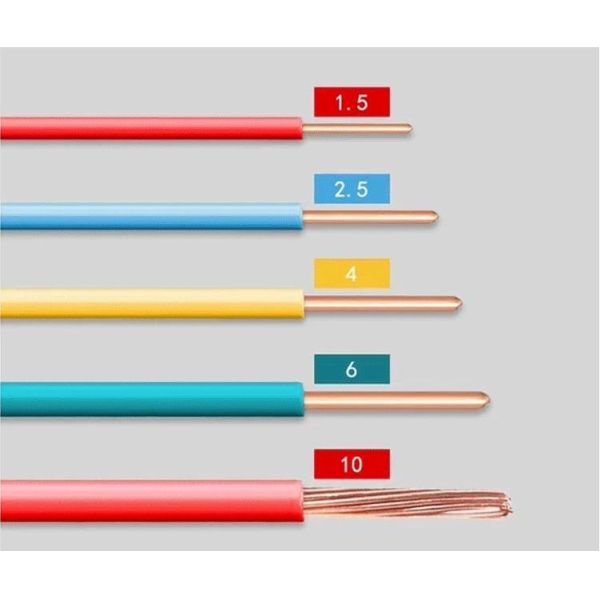

Lighting generally uses 1.5 square single core hard wire (BV1.5), divided into live wire and neutral wire according to different colors
Sockets generally use 2.5 square single-core hard wires (BV2.5), and air conditioners above 3 HP generally use 4 square (BV4) or above single-core wires
The home bus generally uses a single-core wire of 6 square meters (BV6) or more
Please consult online customer service for specific configuration and quantity, but please purchase according to the requirements of the electrician first

Electrical Wire Technical Specifications

Model	Voltage Level (V)	Cross-sectional Area (mm²)	Number / Diameter (mm)	Outer Diameter (mm)	Weight (kg/km)	20℃ Conductor Resistance ≤ (Ω/km)
BV	300/500V	0.5	1/0.80	2.4	8.5	36
BV	300/500V	0.75 (A)	1/0.97	2.6	11.1	24.5
BV	300/500V	0.75(B)	7/0.37	2.8	12	24.5
BV	300/500V	1.0(A)	1/1.13	2.8	13.9	18.1
BV	300/500V	1.0(B)	7/0.43	3	15	18.1
BV	450/750V	1.5(A)	1/1.38	3.3	20.3	12.1
BV	450/750V	1.5(B)	7/0.52	3.5	21.6	12.1
BV	450/750V	2.5 (A)	1/1.78	3.9	31.6	7.41
BV	450/750V	2.5(B)	7/0.68	4.2	34.8	7.41
BV	450/750V	4(A)	1/2.25	4.4	47.1	4.61
BV	450/750V	4(B)	7/0.85	4.8	50.3	4.61
