| Categories | Welding Cable |
|---|---|
| Brand Name: | Minfeng |
| Model Number: | welding cable |
| Certification: | ISO,CE,IEC,TUV,KEMA |
| Place of Origin: | Hebei, China |
| MOQ: | 100 |
| Price: | 0.1-5 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100KM/Week |
| Delivery Time: | 10 Days |
| Productname: | Welding Cable |
| Cable Core Material: | Copper wire |
| Packing: | 100m/roll |
| Production Time: | 10days |
| Standard: | BS IEC ASTM DIN |
| Jacket: | Rubber |
| Company Info. |
| Minfeng Cable Group Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Size | 0, 1/0, 2/0, 20, 10 AWG |
|---|---|

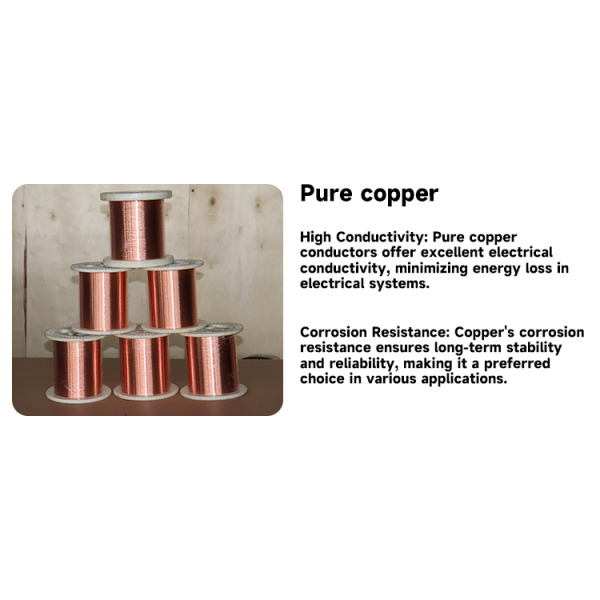

| Conductor Material | Copper (99.995% Pure) |
| Insulation Material | Rubber (EPDM) |
| Application | Welding |
| Type | Low Voltage |
| Place of Origin | Shanghai, China |
| Model Number | H01N2D |
| Brand Name | Minfeng |
| Rated Voltage | 100V |
| Core | Single Core |
| Standard | IEC60228 |
| Certificate | TUV SAE |
| Color | Black, Red, Orange |
| Cross Section (mm²) | Construction (No./mm) | DIA. (mm) | Thickness (mm) | O.D. (mm) | Max. COND. Resistance (Ω/km, 20℃, DC) |
|---|---|---|---|---|---|
| 1 | 32/0.20 | 1.30 | 0.60 | 2.70 | 18.5 |
| 1.5 | 48/0.20 | 1.62 | 0.60 | 3.00 | 12.7 |
| 2.5 | 49/0.20 | 2.06 | 0.70 | 3.50 | 7.6 |
| 3 | 98/0.20 | 2.58 | 0.70 | 4.00 | 6.15 |
| 4 | 126/0.20 | 2.70 | 0.80 | 4.40 | 4.71 |
| 6 | 190/0.20 | 3.20 | 0.80 | 5.10 | 3.14 |
| 10 | 323/0.20 | 4.50 | 1.00 | 6.60 | 1.82 |
| 16 | 513/0.20 | 5.80 | 1.00 | 8.00 | 1.16 |
| 25 | 798/0.20 | 7.30 | 1.30 | 9.80 | 0.743 |
| 35 | 1121/0.20 | 8.65 | 1.30 | 11.30 | 0.527 |
| 50 | 1596/0.20 | 9.60 | 1.50 | 12.70 | 0.368 |
| 70 | 2257/0.20 | 11.70 | 1.50 | 15.00 | 0.259 |
|
