AC & DC EV Charging Gun Functionality Tester SNEQ08 | IEC 62196-1

Categories EV Connector Testing Equipment
Brand Name: Sinuo
Model Number: SNEQ08
Certification: Calibration Certificate (Cost Additional)
Place of Origin: China
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Delivery Time: 30 Days
Packaging Details: Plywood
Power Input: Singlephase AC 220V / 50Hz
Air Supply: 0.6MPa
Control System: PLC + industrial computer
Resistance Test: 1–5000Ω, accuracy ±1%
Thermistor Test: 100–50,000Ω, accuracy ±2%
Drive voltage: DC12V
Dimensions: W900mm × D800mm × H1800mm
Weight: Approx. 300kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AC & DC EV Charging Gun Functionality Tester SNEQ08 | IEC 62196-1

AC & DC EV Charging Gun Functionality Tester SNEQ08 | IEC 62196-1

Product Overview

This comprehensive test system is designed for functional and safety verification of AC/DC charging guns complying with Chinese, European, and American standards. It supports automatic QR code/barcode association, one‑button full‑function automatic testing, real‑time data storage, report generation, and pass/fail printing. Featuring high efficiency and labor savings, it is ideal for mass production line inspection in manufacturing facilities.

Key Functions
  1. Data Management: Automatically associates product QR code with test results and generates test reports
  2. Full Automatic Testing: Continuity, short circuit, miswiring, resistance, electronic lock, insulation, and withstand voltage tests
  3. Data Traceability: Scan codes before test; results linked with barcode for full traceability
  4. Result Output: Real‑time saving, review, and export of test data; pass result printing supported
Technical parameters
Power InputSingle phase AC 220V / 50Hz
Air Supply0.6MPa
Control SystemPLC + industrial computer
MES IntegrationOptional (additional cost)
Resistance Test1–5000Ω, accuracy ±1%
Thermistor Test100–50,000Ω, accuracy ±2%
Drive voltageDC12V
Insulation Test (Line to Line)
Test modesSingle phase, three phase, DC (positive/negative/ground)
Insulation VoltageDC 100–1000V (adjustable)
Lower Limit1MΩ – 1GΩ (adjustable)
Accuracy±5%
AlarmActivates when resistance is below threshold
Withstand Voltage Test (Line to Line)
Test modesSingle phase, three phase, DC (positive/negative/ground)
Voltage RangeAC 0–5kV / DC 0–6kV (adjustable)
Leakage LimitAC 0.1mA–20mA; DC 0.01mA–5mA (adjustable)
Accuracy±1.5% + 3 digits
Mechanical & Structure
Test Station1 station

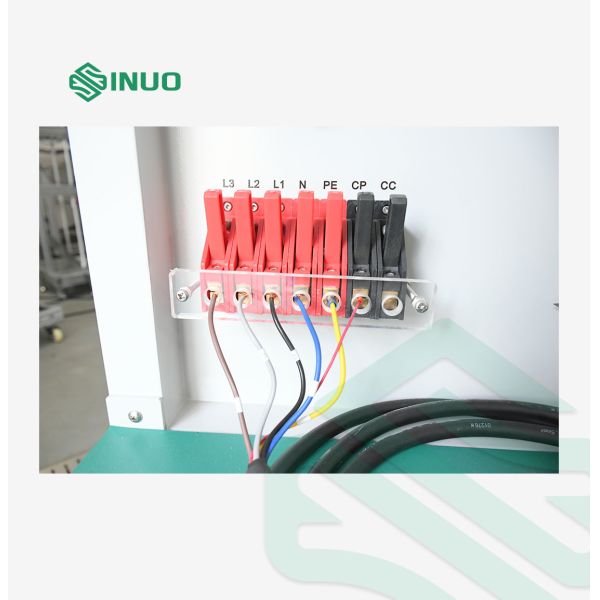

Gun MountsCN / EU / US standard AC/DC gun sockets supported
socket Height~750–1000mm (ergonomic design)
DimensionsW900mm × D800mm × H1800mm
WeightApprox. 300kg
