| Categories | Butt Welding Machine |
|---|---|
| Type: | Band Saw Blades Butt Welding Machine |
| weight (kg): | 600 |
| Frequency: | 50 Hz, 60 Hz |
| Supply Ability: | 100 sets per month |
| Place of Origin: | Sichuan, China |
| Brand Name: | Xingweihan |
| Product Name: | China Pneumatic 8Mm Flash Butt Welder For Bandsaw Blade Ac Strip Steel Copper Aluminum Welding |
| input voltage: | 380 V, 220V |
| MOQ: | 1 set |
| warranty: | 1 Year |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Delivery Time: | 25-45 working days |
| power (kw): | 4.75 kW(6.37hp) |
| After Warranty Service: | Video technical support, Online support and Spare parts |
| usage: | Band Saw Blade Welding Machine |
| Certification: | CE, RoHS, ISO |
| Price: | $8,000-8,500 / set |
| After-sales Service Provided: | Free spare parts, Field installation, commissioning and training |
| Company Info. |
| Chengdu Xinwei Welding Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Most flash butt welders are optimized for one material family. This integrated machine handles the full spectrum: carbon steel bandsaw blades, AC steel strips, highly conductive copper wire and lightweight aluminum. The 600KG rigid frame combines pneumatic transmission, welding controller and secondary circuit into a single stable platform with a transparent safety cover for operator protection.
✓ Multi-Material: Steel, Copper, Aluminum, Alloy Strips and Blades
✓ Integrated Host Frame — Pneumatic, Controller, Circuit in One Platform
✓ Transparent Safety Cover — Observe Welding While Containing Sparks
✓ 600KG Rigid Structure for Consistent Joint Quality Across Materials

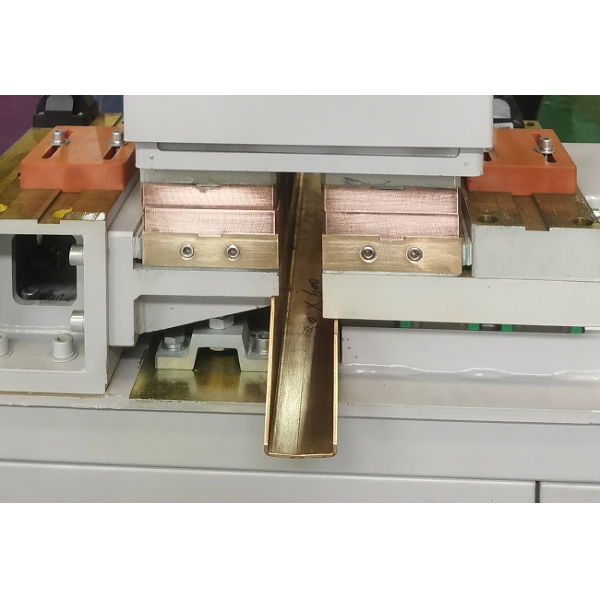

Handles slaughter saw blades, woodworking bandsaw blades and metal-cutting saw blades with different cross-sectional areas. The integrated frame maintains alignment across blade geometries, and the pneumatic transmission delivers consistent flash and upset force for strong, burr-free butt joints that preserve blade cutting performance.
Copper and aluminum present opposite challenges: copper''s high conductivity demands intense current, aluminum''s low melting point requires precise heat control. The flash butt process with adjustable parameters handles both. Integrated water cooling maintains electrode temperature during non-ferrous welding where thermal management is critical.

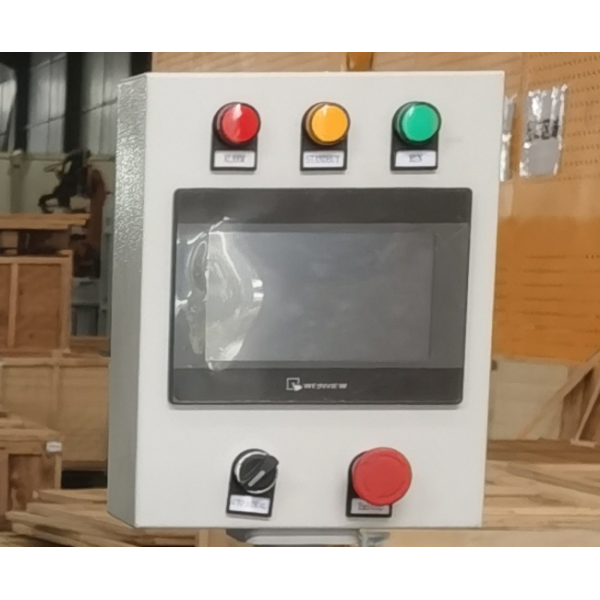

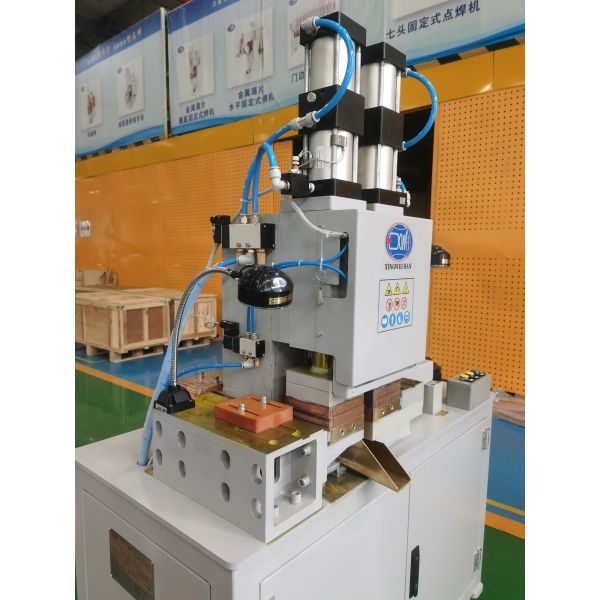

The integrated host frame combines pneumatic transmission, welding controller and secondary circuit into one rigid platform. This eliminates the alignment drift that occurs when components are separately mounted. The transparent protective cover allows the operator to monitor the weld process in real time while containing flash and sparks — meeting workshop safety requirements without sacrificing visibility or cycle speed.
| Parameter | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 |
|---|---|---|---|---|---|---|---|
| Rated Power (KVA) | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Input Voltage | 380V / 220V, 50/60Hz | ||||||
| Max. Weld Capacity (mm) | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 6+6 | |
| Materials | Steel, Copper, Aluminum, Alloys | ||||||
| Frame Weight | 600 KG | ||||||
| Safety | Transparent Protective Cover | ||||||
| Feature | Your Shop Benefit |
|---|---|
| Steel + Copper + Aluminum | One machine for every material that comes through the door |
| Integrated 600KG Frame | Pneumatic, controller, circuit in one rigid platform |
| Transparent Safety Cover | Observe every weld while containing sparks |
| Bandsaw Blade Ready | Slaughter, woodworking and metal-cutting blades |
| 12-Month Warranty | Online support, spare parts, on-site service available |
Send us your blade, strip or wire samples. We will test on your actual materials — free of charge.
Send your material for a free multi-material weld test
Tell us your materials, dimensions and production volume. We will configure the right model for your application mix.
12-Month Warranty | Free Sample Test | Factory Direct from Xinwei
|
