Automatic Die Cutting Machine with 650mm Max Web Width, 450 Stroke/Min Max Speed, and ±0.25mm Print to Punch Tolerance for Ice Cream Paper Cups

Tension Control System Ice Cream Paper Cup Punching Machine CC650
Product Description
Dayuan ice cream paper cone sleeve punching machine

Dayuan ice cream paper cone sleeve punching machine is designed according to European industrial standards. Initially developed in China, the products have achieved CE certification and have been sold to many countries worldwide. With high quality and efficiency, it is an ideal choice for punching ice cream paper cone sleeves.

Machine Specification
Voltage380V/50HZ
Power9KW
Max speedup to 450 stroke/min
Maximum web diameter1500mm
Max web width650mm
Materials80-400 gsm
Print to punch tolerance±0.25mm
Max. punching area630mm x 520mm
Change tool timeabout one hour
Main Configuration
  • Web guiding system
  • Tracking the print logo system
  • Tension control system
  • De-curling system
  • One set of mould
  • Rexroth servo control system

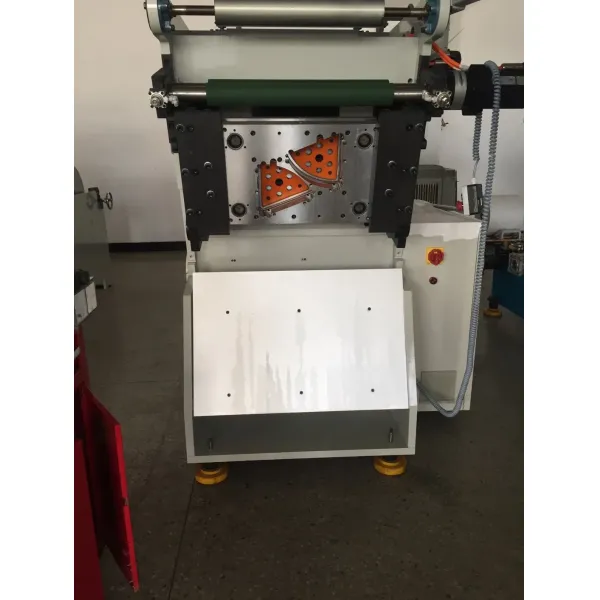

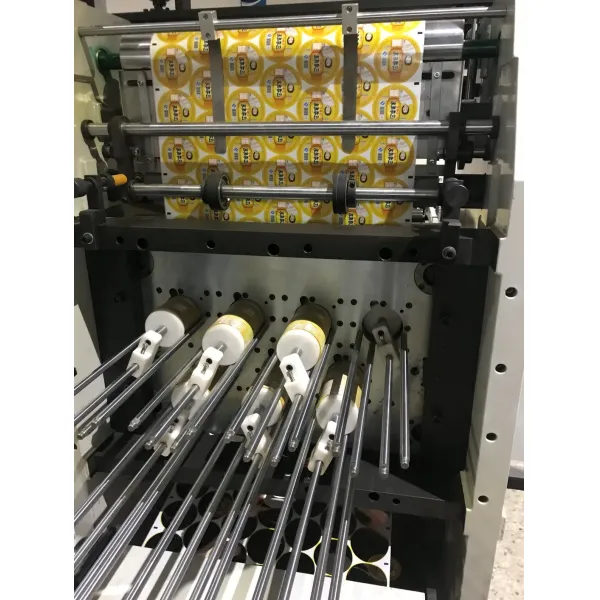

Detailed Photos
Company Introduction

Dayuan Industrial Co. Ltd is a professional manufacturer of eco-friendly paper processing machines, following the enterprise development mission "Create Value for Customers". Founded in 1995, the company is located at Zhongshan, Guangdong, the hometown of Sun Yat Sen.

As one of the companies that first engaged in self-innovative development of eco-friendly paper processing machines in China, Dayuan has won extensive acknowledgment and praise from start to development and from China to the world. Now, it has become a leading supplier of eco-friendly paper processing machines in China.

With more than 20 years of exploration and development, the sales volume of four series self-innovative products (Ice Cream Paper Cone Machine, Carton Erecting Machine, Paper Cone Cup Machine and Punching Machine) rank first in the domestic market. The products have also exported to more than 70 countries and are favorably reviewed by domestic and overseas customers.

Shipping and Packaging
ShippingBy sea, or as your requirement
PackagingBy Strong Wooden Case
Packaging Dimensions
CaseSizeNet WeightGross Weight
Case 11670mm X 1580mm X 2090mm1950 kg2000 kg
Case 22560mm X 1640mm X 1360mm1900 kg1950 kg
Case 3760mm X 970mm X 440mm250 kg300 kg
Frequently Asked Questions
How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements:
  • What kind of product you would like to pack?
  • The bag/sachet/pouch size you need for the product packing (the length, width)
  • The weight of each pack you need
  • Your requirement for the machines and the bag style
Is engineer available to serve overseas?
Yes, but the travel fee is responsible by you. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
How can we make sure about the machine quality after placing the order?
Before delivery, we will send you pictures and videos for you to check the machine quality. You can also arrange for quality checking by yourself or by your contacts in China.
What time for delivery?
Machine about 45 days after getting your down payment, paper cone as the quantity.
Can you explain me the whole transaction process?
  1. Sign the Contract
  2. Arrange 30% deposit to our factory
  3. Factory arrange production
  4. Testing & detecting the machine before shipping
  5. Inspected by customer or third agency through online or site test
  6. Arrange the balance payment before shipment
Will you provides the delivery service?
Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
