| Categories | PE Pipe Extrusion Line |
|---|---|
| Screw Desgin: | Single |
| Packages: | Exported Standard Packing |
| Center Height: | 1000mm |
| MOQ: | 1 SET |
| Certification: | CE / ISO |
| Size: | 4500*2450*2700 |
| Payment Terms: | L/C,T/T |
| Price: | Negotiable (USD EUR) |
| Delivery Time: | 45 WORKING DAYS |
| Application: | Water Supply, Gas Supply, Sewage, Agricultural Irrigation |
| Tube Size: | 4-20 mm |
| Model Number: | LB-160 |
| Supply Ability: | 15 SETS PER MONTH |
| Electrical Components: | Schnider |
| Brand Name: | LB |
| Place of Origin: | ZHANGJIAGANG |
| Pipe Wall: | Solid Wall |
| Packaging Details: | NORMAL PACKAGE |
| Company Info. |
| Zhangjiagang Langbo Machinery Co. Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

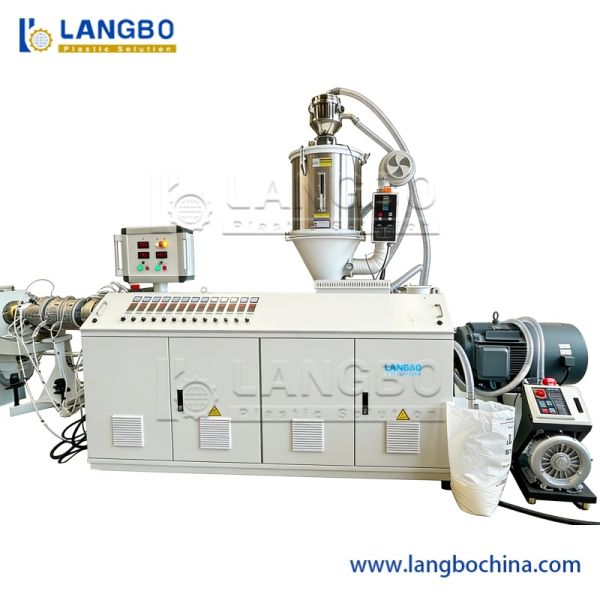

Our HDPE Pipe Production Line features a high torque single screw extruder and automated PE pipe coiling solution that fully automates your production process. This complete system enables continuous production of ready-to-sell pipe coils without operator intervention.

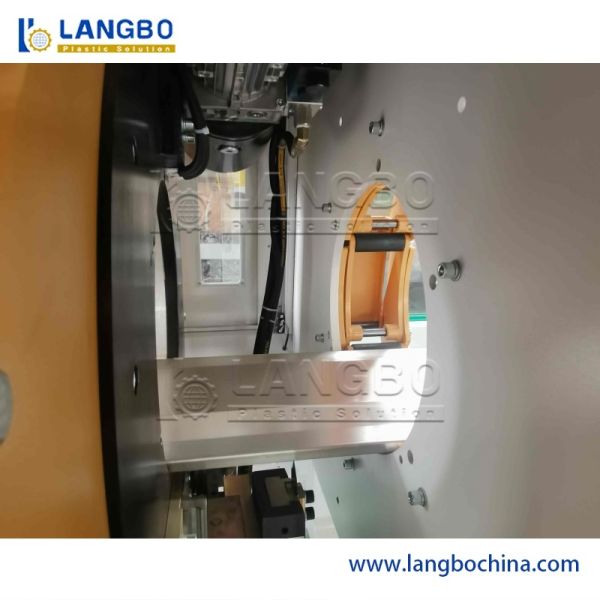

The fully automatic pipe coiler seamlessly coils and straps pipe from 16-50mm at speeds up to 130 meters per minute when combined with the pipe accumulator. This ensures efficient production of uniform, market-ready coils with consistent quality and appearance.
While producing quality pipe is essential, coiling it into attractive, equal-sized coils is paramount to your business success. This PE pipe coiler machine enables truly automated pipe production by eliminating the need for full-time operators to switch out coils, as required with semi-automatic coiler machines.
Our automatic pipe coiler performs complete coil handling: coiling, reel switching, strapping, and coil ejection. With HMI touch screen control, this plastic PE coiler offers highly customizable automation for drip irrigation or standard PE pipe production processes.
|
