High Accuracy And Efficiency Conveyor Weight Checker Multiple Language Display Calibration Weight Included

Categories Conveyor Weight Checker
Operating Temperature: 0-40℃
Power Supply: AC 220V/50Hz
Weighing Range: Customized
Belt Material: Food Grade PVC Or PU
Sortting Manner: Muti Sorting
Alarm: Light And Sound
Display: D
Throughout: 100~700PCS/min
Brand Name: SHANAN
Model Number: SACW500
Certification: ce
Place of Origin: CHINA
MOQ: 1
Payment Terms: L/C,D/A,D/P,T/T
Packaging Details: wooden box
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Accuracy And Efficiency Conveyor Weight Checker Multiple Language Display Calibration Weight Included

High Accuracy Conveyor Weight Checker with Multi-Language Display
Advanced conveyor weight checking system designed for precision weighing in industrial applications. Features multiple language display and includes calibration weight for accurate performance.

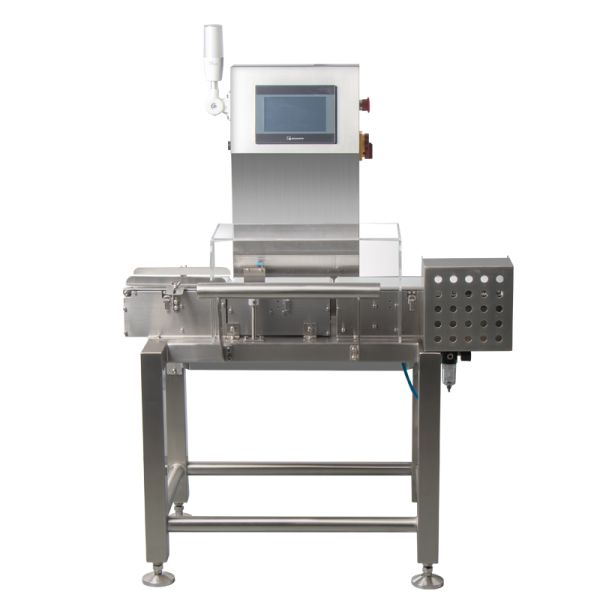

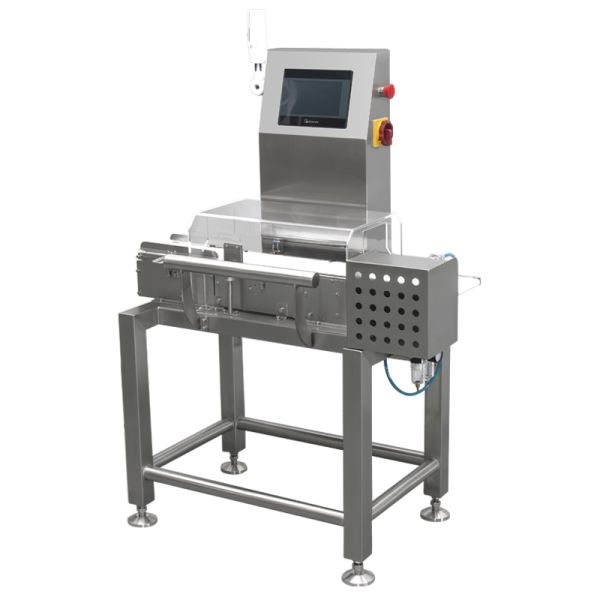

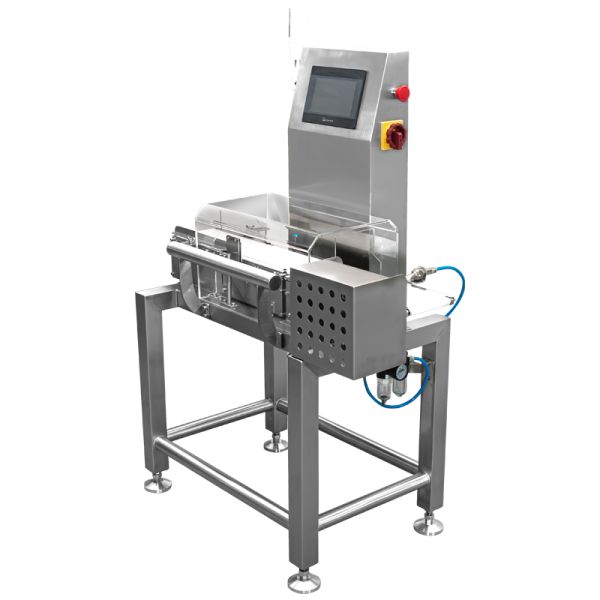

Conveyor weight checker front view Control panel and display interface Weighing conveyor belt detail Machine side view showing construction Internal components and mechanism Product inspection demonstration Complete system overview
Technical Specifications
Product ModelSACW-120ATransfer Speed20-60 m/min
Power SupplyAC220V±10% 50HZ (60HZ)Maximum Speed180 pcs/min
Rated Power0.15KWWeighing Conveyor Belt Size250mm(L) * 120mm(W)
Single Weighing Range1.5-200gElimination MethodBlow-out
Weighing Accuracy Range±0.05g - ±0.1gControl SystemHigh speed A/D sampling controller
Minimum Scale0.01gPreset Product Number2000 pcs
Inspection Item SizeLength: 30-150mm, Width: 30-90mm, Height: 10-100mm
Machine Size900mm(L) * 500mm(W) * 1250mm(H)
Operation DirectionFacing the machine, left to right
External Air Supply0.6-1MpaAir Pressure InterfaceΦ8mm
Working EnvironmentTemperature: 0°C-40°C, Humidity: 30%-95%
Body MaterialStainless steel 304 polished
Operation Screen DisplayChinese, English, Turkish, Spanish, etc.
Other Standard EquipmentWindshield (colorless and transparent), calibration weight
Height of Belt Surface from Ground650mm-750mm (can be customized)
Protection LevelIP-55 international standard
Key Features
  • High precision weighing with accuracy range of ±0.05g to ±0.1g
  • Multi-language display interface for international operation
  • High-speed A/D sampling controller for rapid processing
  • Stainless steel 304 construction for durability and hygiene
  • Blow-out elimination method for efficient product sorting
  • IP-55 protection rating for reliable industrial performance
  • Includes calibration weight for maintained accuracy
Note: According to the different dimensions of the tested product and the working environment in which the equipment is running, the accuracy of the speedometer is slightly different.

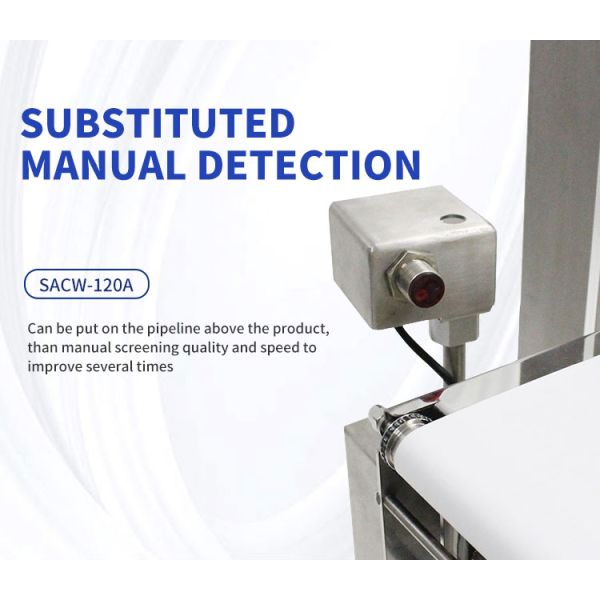

Additional machine view 1 Additional machine view 2 Additional machine view 3 Additional machine view 4 Additional machine view 5 Additional machine view 6 Additional machine view 7 Additional machine view 8
