Casun PM Stepper Motor High Precision Motor for Automation Customized Motor

Categories PM Stepper Motor
Brand Name: Casun
Model Number: 20LCH0011-04
Certification: CE,ROHS,ISO
Place of Origin: China
MOQ: 5
Price: $6.9~$8.2
Payment Terms: D/A,T/T,L/C,D/P
Supply Ability: 10000+PCS+Month
Delivery Time: 7-15 days
Packaging Details: Carton:38x29x18cm
Holding Torque: 60 g.cm
Voltage: 24V
Current: 0.2 A
Body Length: 15 mm
Weight: 0.03 kg
Phase Resistance: 20 ohm ±10% (At 20℃)
Shaft Length: 27 mm
Phase: 2
Insulation Class: Class B
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Casun PM Stepper Motor High Precision Motor for Automation Customized Motor

Casun PM Stepper Motor - High Precision Automation Motor
The Casun PM (Permanent Magnet) Stepper Motor delivers exceptional reliability and precision for demanding automation applications. Engineered for superior motion control, this motor provides exact incremental movement with outstanding performance in positioning and speed control tasks.
Product Specifications
AttributeValue
Holding Torque60 g.cm
Voltage24 V
Current0.2 A
Body Length15.1 mm
Weight0.03 kg
Phase Resistance20 ohm ±10% (At 20℃)
Shaft Length27 mm
Phase2
Insulation ClassClass B
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single or double shaft versions
  • CE and RoHS approved
  • Customizations available on request

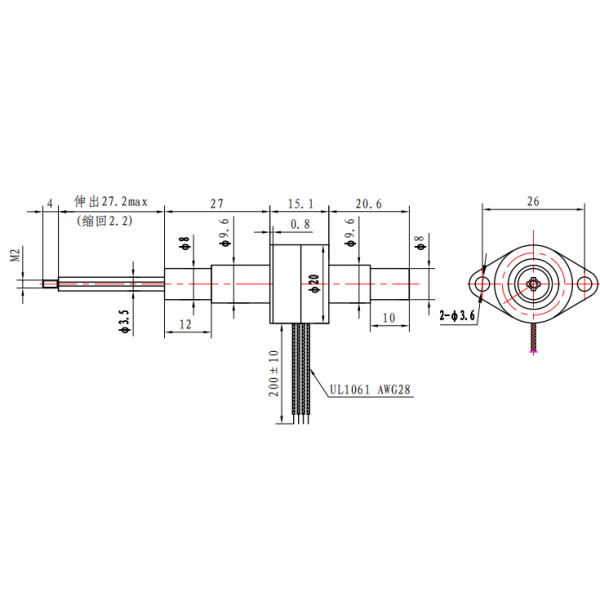

Motor Dimensions
Casun PM Stepper Motor dimensional diagram and specifications
Detailed Motor Specifications
ParameterSpecification
Step Angle15°
Frame Size15.1 mm
Number of Phase2-2 Phase
Rated Current0.2 Amp
Holding Torque60g.cm
Resistance20 ohm
Inductance8 mH
Rotor Inertia38 g.cm²
Motor Weight30 g
ConnectionBipolar
Operating Specifications
ParameterSpecification
Step Angle15°
Maximum Temperature80°C maximum
Ambient Temperature-20°C to 50°C
Storage Temperature-20°C to 100°C
Humidity Range85% or less, non-condensing
Magnet Wire InsulationClass B 130°C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
Encoder Specifications
ParameterSpecification
Voltage5 V
OutputA + A - B + B - Z + Z -
Available Submodels
Casun NEMA 17 Stepper Motor submodels and variants
Customization Options
If our standard motor configurations don't meet your specific requirements, we offer comprehensive customization services. Our engineering team can modify the motor to your exact specifications.
Customization Areas Include:
  • Special shaft configurations
  • Custom winding parameters
  • Modified installation dimensions
  • Lead wires with special requirements
  • Custom connector solutions
Available Accessory Options
Encoder option for Casun NEMA 17 Stepper Motor
Encoder Option
Brake option for Casun NEMA 17 Stepper Motor
Brake Option
Gearbox option for Casun NEMA 17 Stepper Motor
Gearbox Option
Shaft option for Casun NEMA 17 Stepper Motor
Shaft Option
Ready to discuss your specific motor requirements? Contact our engineering team for a customized solution.
