2MP GC2093 USB Camera Module WDR Full HD 1080P H264 For Indoor And Outdoor

GC2093 1080P WDR USB Camera Module:

TYS-5693-V25 is our popular USB2.0 camera module,used a GC2093 2MP WDR color Rolling Shutter CMOS image sensor from Galaxycore.Frame Rate 60 Frames/sec with 1/2.9 inch 1920*1080 resolution and strengthen the effectiveness of image processing DSP perspective and video conversion chip and USB video output.It has fuctions for HDR,gray,shiapness,gamma correction,Auto exposure,adaptive backlight compensation(ABLC)etc.

Why choose WDR Camera Module?

Specification:

Frame Rate:

MJPG:

1920x1080@60FPS; 1280x720@60FPS; 800x600@60FPS; 640x480@60FPS; 320x240@60FPS;

YUY2:

1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 320x240@60FPS;

H.264

1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 320x240@30FPS;

Technical & Mechanical:

• Power Supply Voltage: USB_5V±5%
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +95°C

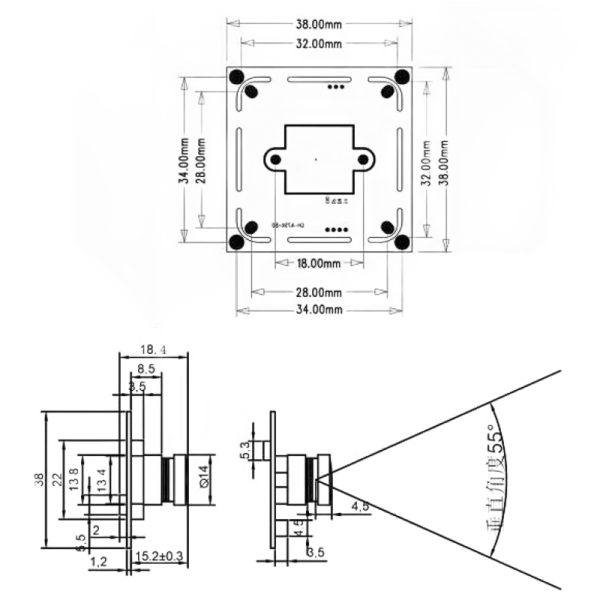

• Module Size : 3.8X3.8X1.84cm
• Current: Normal≤220mA

Details of 1080P USB2.0 camera module:

OEM USB2.0 camera module full HD 1920*1080 WDR FF distortion free lens for driving recorder or in car monitoring camera can clearly record the driving process or the situation inside the car. The wide dynamic function ensures that clear video data can be obtained under different lighting conditions.

Direct sales 2-megapixel 1080P 60fps WDR wide angle video conferencing camera module with USB2.0 interface.Providing clear video images for video conferencing equipment, even in complex lighting conference room environments, can provide participants with a good visual experience.

Factory price WDR USB camera module with 1080P CMOS color image sensor for Intelligent robots, intelligent self-service terminals and other devices help devices better perceive the surrounding environment, achieve human-computer interaction, object recognition and other functions.

1/2.9 GC2093 2-megapixel CMOS image sensor with a maximum resolution of 1920 × 1080 and a frame rate of up to 60fps WDR FF lens. It can Can be used in conjunction with software to achieve functions such as facial recognition and gesture recognition.
