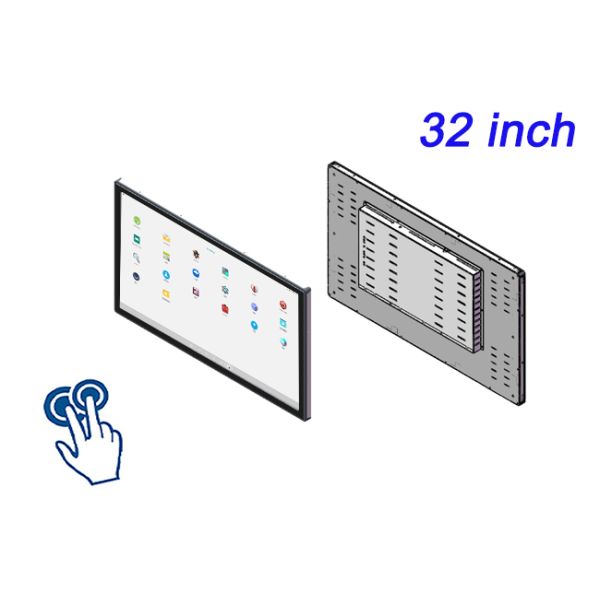

The rounded corner frame design, crafted with curved edge-wrapping
technology, not only enhances the device's aesthetic appeal but
also effectively prevents screen damage caused by edge impacts,
balancing safety and practicality.
The screen adopts a completely flat, dead zone-free touch solution
combined with 10-point capacitive touch technology, achieving
seamless integration between the display and the body. The
capacitive touch delivers precise response, supports multi-point
operation, and offers high sensitivity without blind spots,
ensuring smooth and lag-free user interaction. This design is
particularly suitable for industrial equipment requiring
high-frequency operation, such as automated production line
monitoring and self-service terminals.
Furthermore, the Embedded Industrial TouchScreen Monitors features
an integrated structural design that reduces external wiring and
gaps, enhances dust and water resistance (IP65 protection rating),
and lowers maintenance costs. It supports both Windows and Android
systems, boasts strong compatibility, and can be quickly integrated
into various industrial control systems, facilitating intelligent
equipment upgrades.
| LCD Panel Parameters | Screen Size | 32 Inch |
| Display Area | 698 mm.(Height) X 391.8(Width)mm. |
| Aspect Ratio | 16 : 9 |
| LCD Type | a-Si TFT-LCD Monitor |
| Maximum Resolution | 1920 X 1080 |
| Display Color | 8 Bit + FRC Color 1.07G |
| Brightness | 400cd/m² |
| Contrast Ratio | 1200 : 1 |
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) |
| Response Time | 8ms |
| LCD Panel Lifespan (Hours) | 60,000(Hour.) |
| Field Frequency | 60Hertz |
| PCAP Touchscreen Panel Parameters | Touch Pattern | Projected Capacitive Touchscreen Monitor |
| Touch Points | 10 Points |
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof |
| Glass 3 mm. Optical mount to reduce parallax |
| Glass Transmission | >85% (Higher light transmission depends on glass coating
technology For example AR/AG) >85% |
| Response Speed | < 6ms |
| Touch Accuracy | More than 90% of the touch area ±2 mm |
| Touch Method | Inch Stylus |
| Output Format | Coordinate Output |
| Click Time | Unlimited |
| Smallest Touch Size | 5 mm |
| Long-lasting Durability | Yes, Available |
| Touch Interface | USB |
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH |
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH |
| Audio parameters | Audio system | Stereo |
| Speaker size | ≈ 99 x 45 x 20 mm |
| Impedance | 8 Ohm |
| Power | 2 x 5 Watt |
| Loudness | > 80 Decibel |
| Interface | 4-pin connector |
Configuration PCB Android Built-in
(Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz |
| GPU | Mali-T764 | Mali-G52 |
| RAM | 2GB | 4GB |
| ROM | 32GB | 32GB |
| Android System | Android 10.0 | Android 11.0 |
| Ethernet | 1 x RJ45, Ethernet 1,000 Mbps | 1 x RJ45, Ethernet 1,000 Mbps |
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 |
| Bluetooth | 4.2 | 5 |
| Interface | USB2.0 x 2 | USB2.0 x 2 |
| HDMI IN x 1 |
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss | ≤ 60 Watt |
| Standby Mode Power Loss | < 1 Watt |
| Features | Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | Below 10℃ ~ +60℃ |

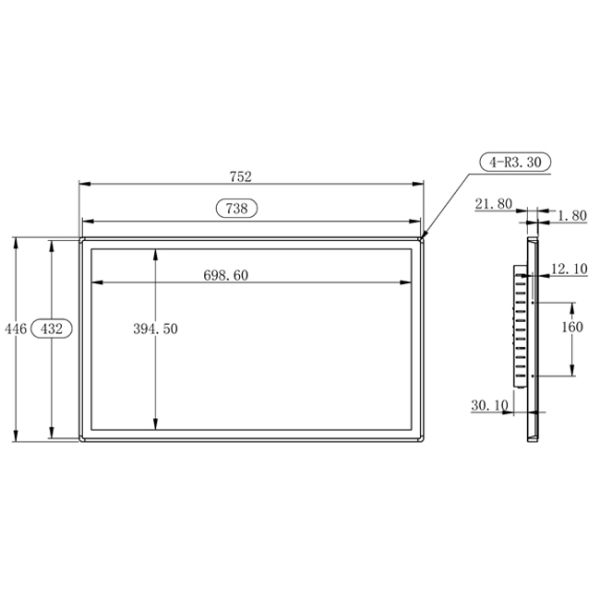

| Package Size | Device Dimensions | 749 X 446 X 58 mm. |
| Net Weight | 13 Kilogram |
| Package Size | 83 X 53 X 15Centimeter |
| Gross Package Weight per Unit | 15 Kilogram |
From structural craftsmanship to interactive experience, the
Embedded Industrial TouchScreen Monitors, with its stability,
reliability, efficiency, and responsiveness, serves as a core
interactive component in smart manufacturing, logistics terminals,
and public service fields.
