Product Description

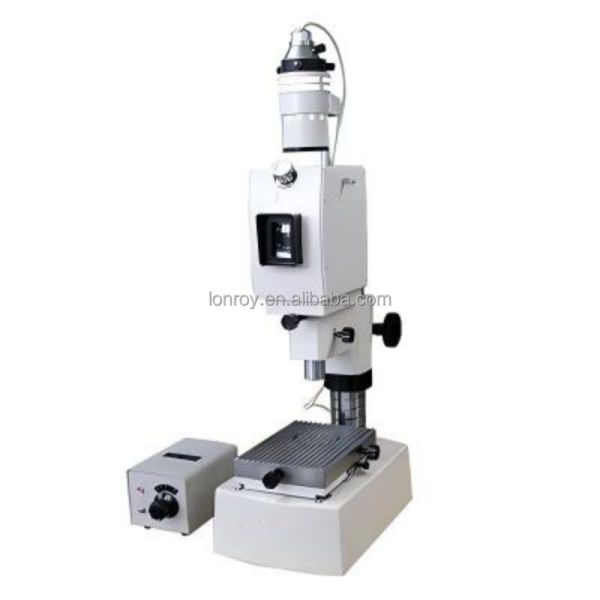

A projection optical gauge is a precision optical mechanical length measuring instrument. It measures micro-difference dimensions of a part's external shape by comparing a standard gauge block with the part being measured. It is a commonly used precision instrument in factory metrology rooms, workshop calibration stations, or in gage, tool, and precision parts workshops. It can calibrate gauge blocks and high-precision cylindrical gauge blocks, and can compare the diameters of cylindrical and spherical workpieces, the thickness of sample workpieces, and the pitch diameter of external threads.

Features

The utilizes wax screen technology and an attached reading magnifier, providing uniform brightness and clear image quality.

The utilizes CCD digital image processing technology, directly displaying measurement values in digital form with high resolution.

The instrument offers high measurement accuracy, stable and reliable data, and is convenient and quick for inspecting small precision parts.

The compact design and small dimensions make it easy to transport.

Instrument Operating Environment:

Room temperature: 20°C ± 0.5°C, relative humidity should not exceed 60%

Workbench

Seven-rib workbench: For calibrating thick gauge blocks and workpieces

Ball-rib workbench: For calibrating thin gauge blocks and workpieces

Gage block transport rack: For holding and moving standard and gauge blocks

Smooth-surface workbench: For measuring sphere diameters

Precision Optical Gauge Projection Optical Instrument Laboratory Optical Micrometer Gauge

Technical Specification
