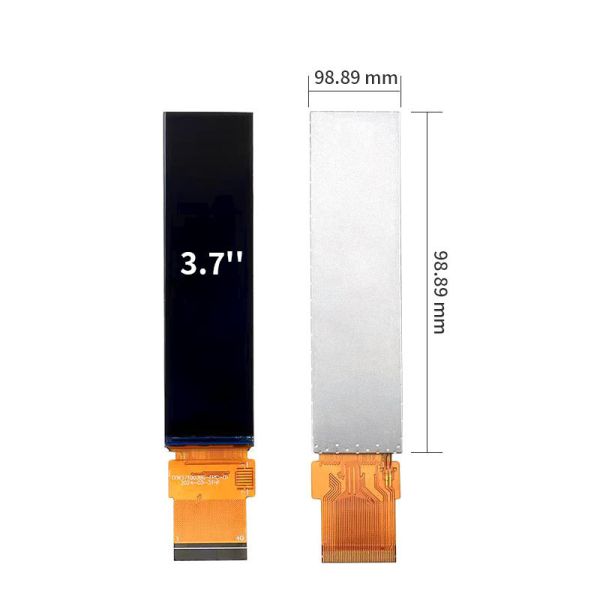

3.7 Inch Bar Type LCD Display 240×960 Resolution MIPI RGB LCD Screen

The YVO037VG-C01 is a 3.7 inch LCD display module suitable for industrial and consumer applications. It boasts a resolution of 240(RGB)×960 pixels, with AXS15231 as the driver IC, and supports SPI+18RGB interface. Featuring a module outline dimension of 25.3(H)×98.94(V)×2.09(D) mm and an active area (LCD AA) of 22.86×91.44 mm, this module is well-suited for various display scenarios. The panel ensures wide viewing angles and vivid image quality with 262K colors. It utilizes white LED backlight and has an operating temperature range of -20℃ to +70℃ as well as a storage temperature range of -30℃ to +80℃, making it adaptable to various environments.

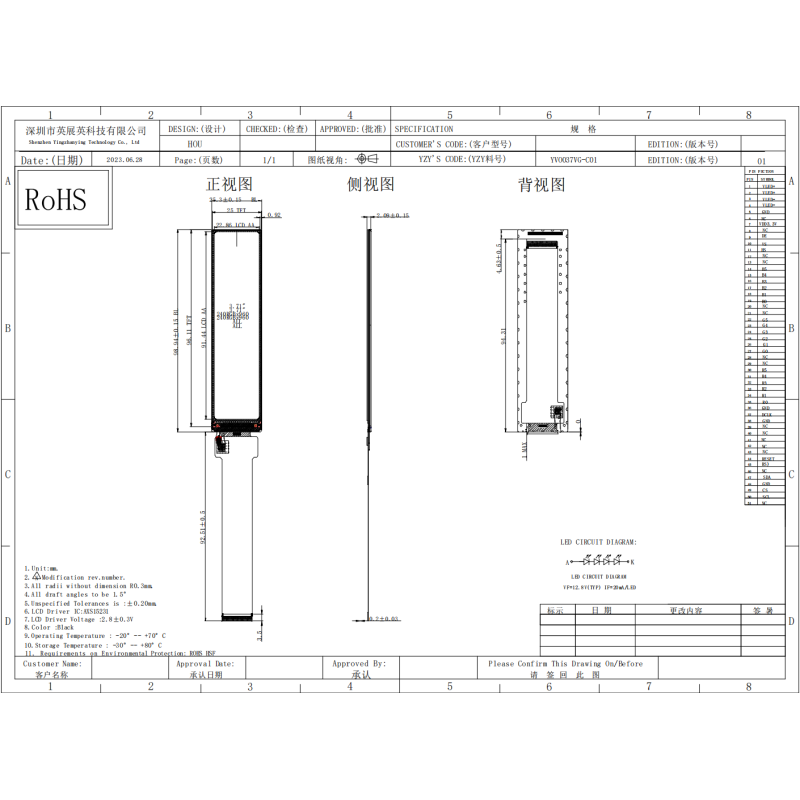

Technical Drawing

The YVO037VG-C01 LCD module has an analog supply voltage (VCI) range of 3.0V to 3.6V (typical 3.3V) and a digital supply voltage (IOVCC) range of 1.65V to 3.3V (typical 1.8V), ensuring stable power performance. The operating temperature ranges from -20.0°C to 70.0°C, and the storage temperature ranges from -30.0°C to 80.0°C. The operating and storage humidity is between 10% and 90% RH. The backlight unit has a typical forward current of 20mA, a typical forward voltage of 12.8V, and a typical backlight power consumption of 256mW, with an operating life time of 20000 hours (when brightness goes down to 50% initial brightness). Optically, it has wide viewing angles (θT, θB, θL, θR all typical 80 degrees at CR ≥ 10), a contrast ratio (CR) of 1000 to 1500 at θ=0°, a response time (T_ON and T_OFF) typical 25ms at 25°C, a uniformity (U) typical 80%, an NTSC typical 59%, and a luminance (L) typical 300 CD/m².

The YVO037VG-C01 LCD module boasts excellent environmental adaptability—with a wide operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C—ensuring stable performance even in harsh temperature conditions and making it suitable for diverse working scenarios; to guarantee long-term reliability, it has also passed a series of rigorous reliability tests, including 96-hour high-temperature (80°C) and low-temperature (-30°C) storage tests, 96-hour high-temperature (70°C) and low-temperature (-20°C) operation tests, 96-hour operation under 60°C/90% humidity, 10 thermal shock cycles (alternating between -20±2°C, 25°C, and 70±2°C), and ESD tests with ±2kV voltage (330Ω, 150pF air discharge, 10 times). After these tests, when stored at room temperature for 4 hours, the sample shall be free from defects: air bubble in the LCD, seal leak, non-display, missing segments, glass crack, and a current IDD that is twice higher than the initial value.

The YVO037VG-C01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Touch Options: With or without capacitive touch, customized driver IC available.

Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for durability.
