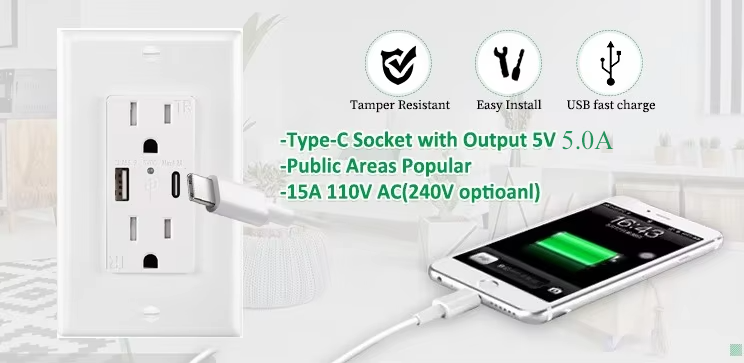

Kegyma AC Electrical Socket with TWIN USB-C Receptacle
Wall outlet with USB ports ensures all your devices stay charged
while leaving room for other appliances. Charge two USB devices
simultaneously without adapters.
Key Features:
- 5.0A, 5VDC combined charging capacity; each USB port can reach up
to 5.0A on a standalone charge
- Provides the fastest charge to iPhone, iPad, iPad Air, and other
smartphones, tablets, and USB devices
- Smart and safe charging with intelliChip built into the USB ports
- Recognizes power needs of connected devices and delivers maximum
power up to 5.0A per port
- Child safe, tamper-resistant duplex receptacle increases safety
- Back and side wired; 125VAC, 15A duplex receptacle, ETL-listed
5001170
Technical Specifications
| Amperage | 15 Amp |
| Voltage | 110V-240V |
| Pole | 2 |
| Wire | 3 |
| Grounding | General Grounded |
| Dielectric Voltage | Withstands 2000V per UL498 |
| USB Output | Single Max 5.0A |
| Terminal Accommodation | 14-10 AWG |
| Flammability | Rated V-2 per UL94 |
| Operating Temperature | -10°C to 40°C |
| Face Material | 100% pure PC |
| NEMA | 5-15R |
| Applicable Standards | UL 943, UL 498 |
Product Advantages
Wide Voltage Design
Supports 110V to 240V, making it suitable for use in both South
America and North America as well as other American standard areas.
Fast Charging USB Port
Single port supports maximum 5.0A current. USB 5.0A employs
identification chip to enable optimum power transfer while
maximizing charging efficiency.
Tamper Resistant Shutter
Complies with NEC® requirement - all 15A and 20A receptacles
installed in dwelling units should be tamper-resistant. Receptacles
with shutter mechanism block access to the contacts unless the plug
is fully inserted, providing enhanced safety for children.
Intelligent Identification Chip
Equipped with smart chip, the USB ports precisely 'read' the power
needs of connected devices to deliver optimal power. IntelliChip
charges at the optimal power allowed by the device, protecting your
devices from overcharging and overheating.
Applications
Residential and Commercial Applications:
Kitchens, Bedrooms, Home Offices, Airport Lounges, Salons and Spas,
Hotels, Meeting Rooms, Office Cubicles, College Dormitories, Cafes,
Coffee Houses, Restaurants or other public areas.
From the bedroom to the airport, from the living room to the
library, the KU-15T 4.2A USB Charger Outlet is perfect for any
application! Your walls will look tidy and neat, while giving your
devices a better power center. All you need is your USB cable.
Related Products
GFCI/GFI Safe Socket
Wifi Smart Outlet

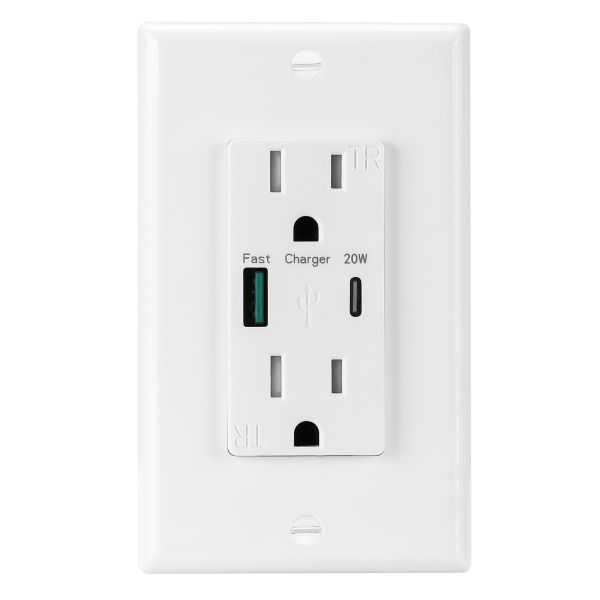

PD20W/QC3.0 USB Socket
About KEYGMA
Shenzhen KEYGMA Electrical Manufacturing CO., Ltd is a professional
high-tech enterprise focused on American standard wall outlets for
10 years. KEYGMA is registered with $750,000 capital, with factory
at Pingshan District, Shenzhen and branch office at Longgang
District.
From design to package, KEYGMA researched and developed 4 series
main products: Ground Fault Circuit Interrupter (GFCI), USB wall
outlets, smart wall outlets and LED dimmer. All products are ETL
listed and FCC certified. Since 2003, 32 patents were applied based
on core technology.
KEYGMA has a strong R&D team with technical engineers
experienced in electrical products for more than 13 years. Every
engineer is awarded invention patent and familiar with UL
requirements of electrical products.
Focused on "Quality, Reputation and Innovation", KEYGMA always
persists in "Quality First, Safety First". We are confident that
Keygma will become an electricity pioneer guarder of your
convenient and safe life.
Certifications & Quality
All products are ETL certified (ETL No.5001170). Over 10 patents
have been applied. Our core R&D department consists of
experienced professionals in the electronic field. We offer
customization services from design to packaging.
OEM & ODM Services
Make Your Idea Come True
Every thought is a god-given gift from heaven. There are countless
ideas every day in this world, and countless ideas disappear. If
you don't care about these ideas, it's a waste of God's gift.
Once you have an idea for electrical products, come to Keygma.
We'll help you make it come true.
