Custom 12V 24v Planetary DC Geared Motor For Solar Panel Brush Cleaning Robot

Custom 12V 24v DC Planetary Gear Motor for Solar Panel Brush Cleaning Robot

VR

FT MOTOR

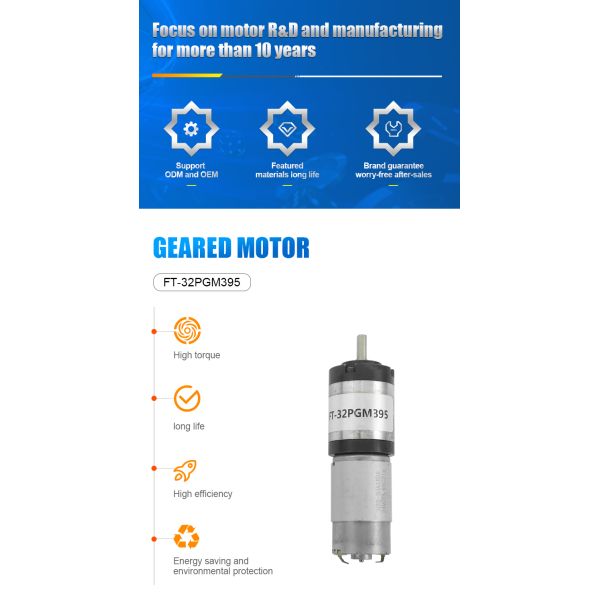

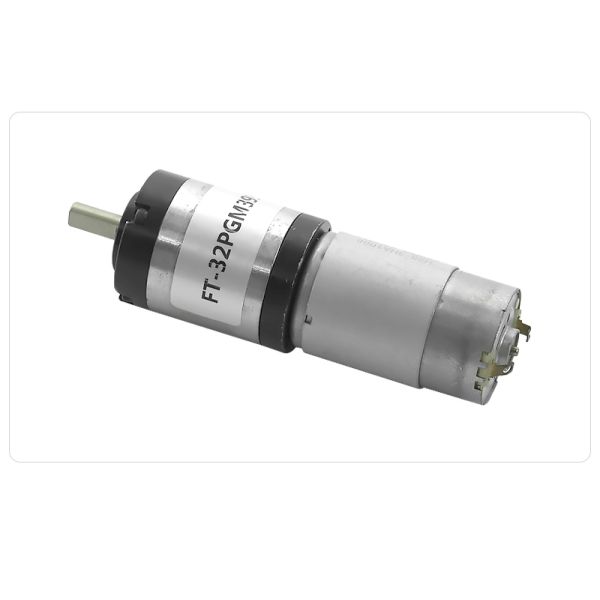

FT MOTOR Geared motor model: FT-32PGM395 Gearbox diameter: Ø32mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stage	1	2	3	4
Reduction ratio (K)	3.7,5.2	14,19,27	51,71,100,139	189,264,369,515,721
Gear box length L(mm)	25.5	35.5	41.5	49.5
Rated torque (kg·cm)	3	6	9	17
Instant torque (kg·cm)	6	10	20	35
Gearbox efficiency (%)	90%	81%	73%	65%

Motor Data
Motor Model		No Load			Load							Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-395	6	10000	400	8400	2500	15	80	8800	430
FT-395	12	6000	180	5000	850	10.2	95	2700	560
FT-395	24	6000	80	5000	430	10.32	100	1500	560
FT-395	24	7500	100	6300	540	12.96	90	1800	600

Dongguan Futeng Motor Co., Ltd.

Registered Capital: 10 million yuan

Industry: Manufacture of micro reduction motors- Manufacture of motors

Main business:  one-stop service including production, R&D, sales, and processing: processing micro-motors, gear motors, gearboxes, plastic, hardware products, etc.

Widely used in household appliances, medical equipment, smart home, security system, electric,etc.

Founded in May 2017, covering an area of 16,000 square meters, located in Dongguan, China. has always been committed to the research, production and sales of micro DC motors, spur gear reduction motors, planetary gear reduction motors, worm gear reduction motors and other series of non- custom reduction motors.

Obtain ITAF16949 automotive quality management system, ISO9001, ISO45001, ISO1401 quality, environmental and occupational health systems, CE, ROHS and other international certifications, Dongguan Fute Motor Co., Ltd., with the management philosophy "customer first, quality first", continuously innovates and improves product design, improves product performance and service speed, provides competitive solutions for customers, creates value for customers, and is to becoming the world's leading micro motor brand.
