Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord

Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord

Male Female MPOs are classified by the guide pins on the end of the connector and require 1 male and 1 female to mate properly. MPO connectors use a “barrel sleeve" adapter that simply holds one male and one female MPO “plug" together. The male guide pins fit into the female holes to ensure precise fiber alignment. It is never advised to mate two female connectors two male connectors due to both insertion loss and pin damage respectively. The standard for cables is female to female. This changes, however, when you need to extend a cable or connect two cables. You will then need a male to female cable plus adapter.

Specification:

Features:

• 1.1 MPO connectors support multi-core fiber optic parallel connection, significantly increasing the wiring density, saving space, and are suitable for high-density environments such as data centers.
• 1.2 It supports high-speed network transmission standards such as 40Gbps, 100Gbps, and 400Gbps, meeting the high-speed requirements of modern data centers.
• 1.3 Low insertion loss (typically less than or equal to 0.5 dB) ensures high signal transmission efficiency.

Application:

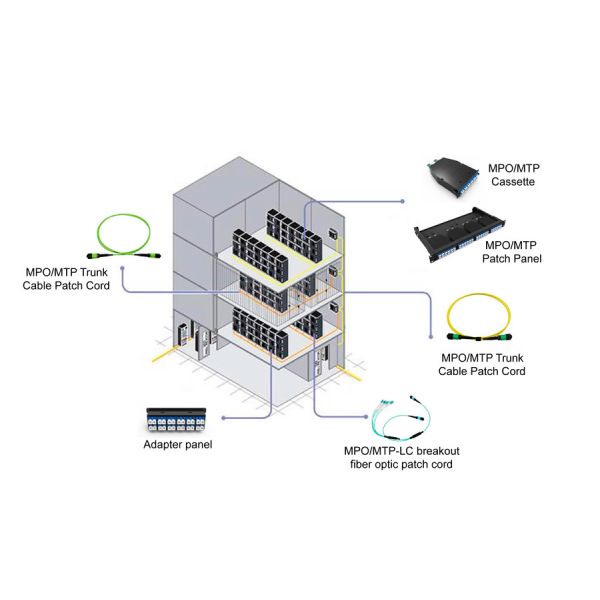

• 2.1 MPO patch panel to patch panel connections in data centers
• 2.2 Switch-to-panel and cassette-based MPO systems
• 2.3 40G/100G/200G/400G OM4 multimode interconnects (short-reach)
• 2.4 High-density structured cabling in plenum (OFNP) environments

FAQ:
