| Categories | Circular Connector |
|---|---|
| Environmental seal: | ≤ 4.6×102 Pa ·cm3/s |
| Delivery Time: | 2--9 weeks |
| Corrosion resistance: | Class L withstand 48 hours salt spray and others withstand 500 hours salt spray |
| Model Number: | MS3112E14-4P |
| Place of Origin: | China |
| Price: | 10＄--500＄ |
| Certification: | AS9001 |
| Random vibration: | Frequency 10Hz ~ 2000Hz at 147 m/s2 |
| Shock: | Max acceleration 490 m/s2 |
| Packaging Details: | standard export package |
| Shell Material: | Aluminium-alloy, copper-alloy or stainless-steel |
| Brand Name: | Jovelix |
| MOQ: | 10PCS |
| Operating temperature range: | -55 oC ~ +125 oC |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 10000 pcs per month |
| Durability: | ≥ 500 cycles |
| Company Info. |
| Wuxi Juhuili Technology Development Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The MIL-C-26482 Series I circular connector is engineered for quick bayonet coupling with solder contacts, featuring compact dimensions and medium contact density. This connector family offers versatile configurations including three shell materials, nine shell sizes, four finishes, six plug styles, eighteen receptacle-mounting styles, three contact types, and over thirty contact layouts.
Widely implemented in commercial, mili-tary, and aerospace systems for reliable performance in demanding environments.

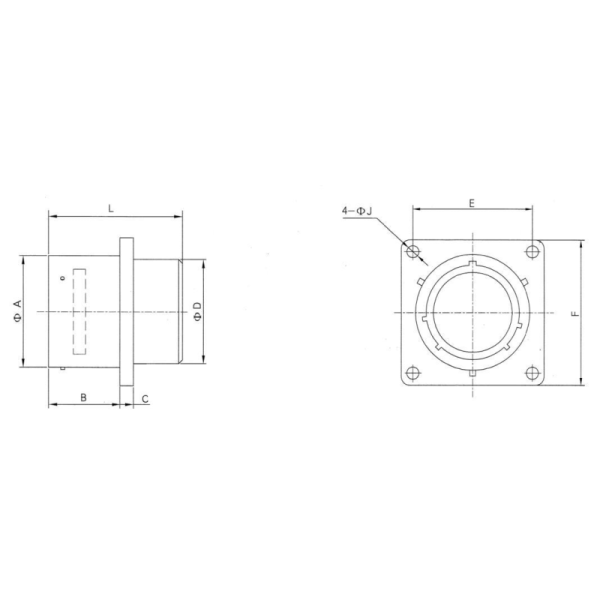

| Shell No. | L (max) | A | B (max) | C (max) | D (max) | E (max) | F (max) | J (max) |
|---|---|---|---|---|---|---|---|---|
| 8 | 21 | 12.04 | 11.70 | 1.7 | 10.84 | 15.09 | 20.99 | 3.2 |
| 10 | 21 | 15.00 | 11.70 | 1.7 | 13.99 | 18.26 | 24.19 | 3.2 |
| 12 | 21 | 19.07 | 11.70 | 1.7 | 17.37 | 20.62 | 26.54 | 3.2 |
| 14 | 21 | 22.25 | 11.70 | 1.7 | 20.57 | 23.00 | 28.89 | 3.2 |
| 16 | 21 | 25.43 | 11.70 | 1.7 | 23.72 | 24.61 | 31.29 | 3.2 |
| 18 | 21 | 28.60 | 11.70 | 1.7 | 26.69 | 26.97 | 33.69 | 3.2 |
| 20 | 23 | 31.78 | 14.35 | 2.5 | 29.89 | 29.36 | 36.89 | 3.2 |
| 22 | 23 | 34.95 | 14.35 | 2.5 | 33.04 | 31.75 | 39.99 | 3.2 |
| 24 | 23 | 38.13 | 15.20 | 2.5 | 36.24 | 34.92 | 43.15 | 3.8 |
|
