| Categories | Taxi Topper LED Sign |
|---|---|
| Pixel Pitch (mm): | 3.076 |
| Pixel Density (dot/m²): | 105625 |
| LED Type: | SMD1415 |
| Module Size (W × H) mm: | 320 × 160 |
| Module Resolution (W × H): | 104 × 52 |
| Module Weight (kg): | 0.32 |
| Power Consumption per Module (W): | 35~40 |
| Driver Mode (Scan): | 1/13 |
| Brightness (cd/m²): | 4000~4500 |
| Grey Scale (bits): | 14 |
| Refresh Rate (Hz): | ≥3840 |
| Unit Size (W × H × D) mm: | 1046 × 400 × 139 |
| Display Size (W × H): | 960 × 320 |
| Display Resolution (W × H): | 312 × 104 |
| Unit Weight (kg/PC): | 17 (additional packaging material 21KG) |
| Max Power Consumption (W/Sets): | 420~480 |
| Average Power Consumption (W/m²): | 126~144 |
| Viewing Angle - Degree: H: | 120° |
| Viewing Angle - Degree: V: | 120° |
| Mini View Distance (m): | 3 |
| Use Temperature (°C) - Operating: | -10°C~40°C / 14°F~104°F |
| Use Temperature (°C) - Storage: | -10°C~40°C / 14°F~104°F |
| Input Voltage: | -10°C~40°C / 14°F~104°F |
| Failure Rate: | <1/50,000 |
| Control Type: | WiFi & 4G optional |
| Life Time (hrs): | 50,000 |
| IP Level: | IP65 |
| Company Info. |
| BRIGHT SOURCE |
| Verified Supplier |
| View Contact Details |
| Product List |
BSC-Taxi LED Sign
BSC - Taxi LED Sign is a high-brightness mobile advertising display designed for taxi roof applications. It features customizable housing color, lightweight structure, outdoor durability, low power consumption, and anti-shock performance for stable vehicle-mounted operation. With 4000–4500 cd/m² brightness, 14-bit grayscale, ≥3840Hz refresh rate, IP65 protection, and DC 9–36V input, it delivers clear and reliable advertising on the move. Optional Wi-Fi, 4G, USB, RJ45, and GPS fixed-point playback allow flexible content management based on vehicle location.

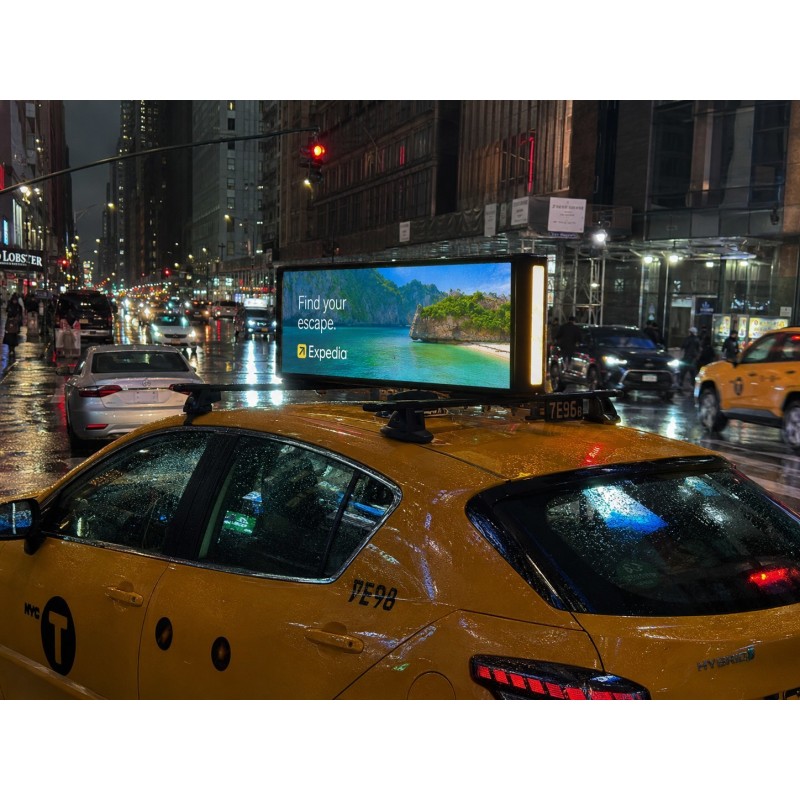

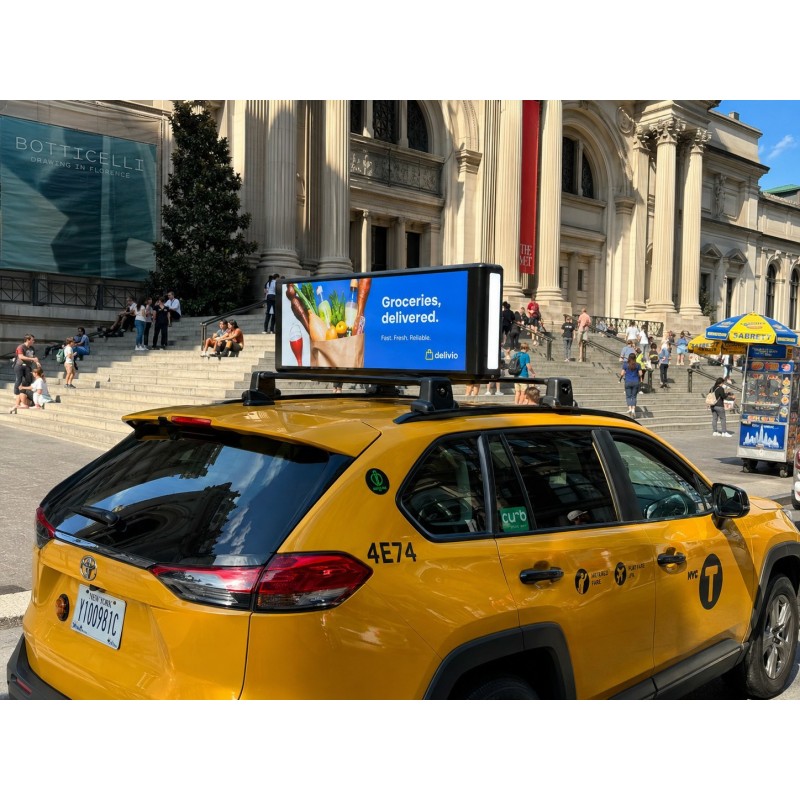

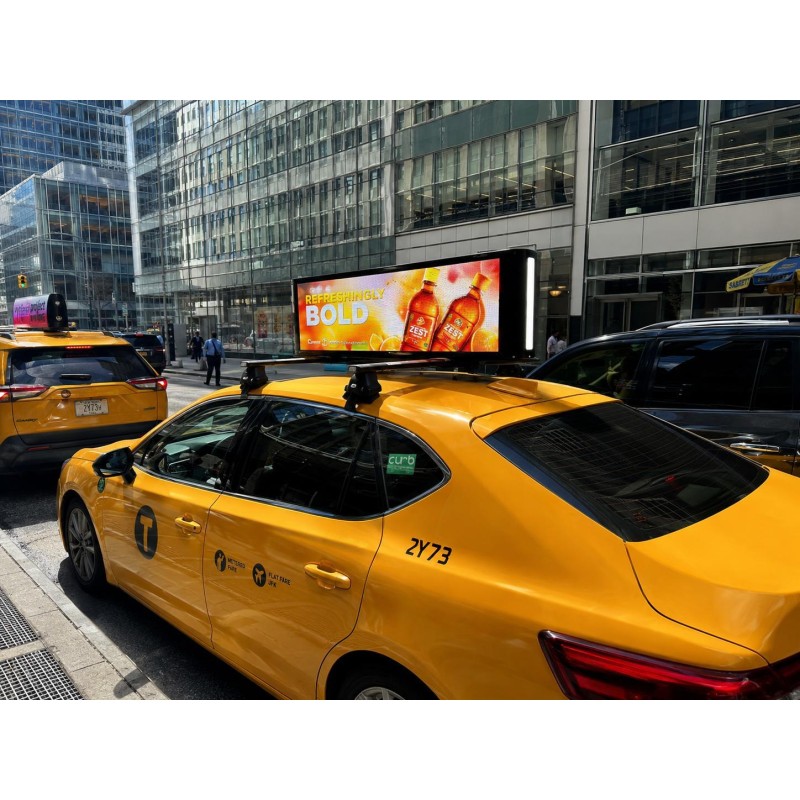

Taxi LED Sign Application Cases

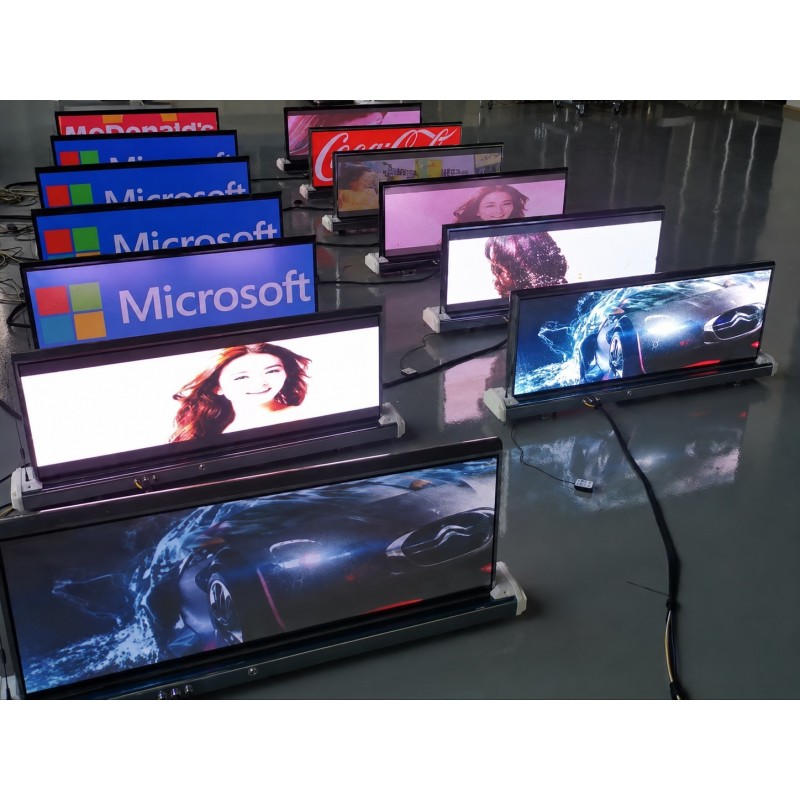

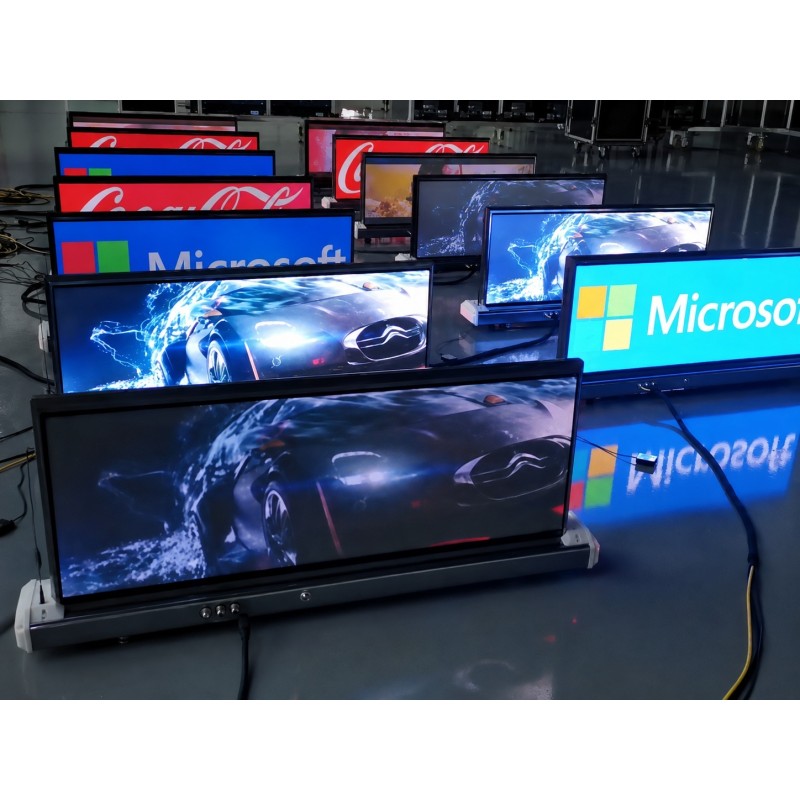

Taxi LED Sign aging test in manufacutre
Technical Specifications
| Pixel Pitch (mm) | 2 | 2.5 | 3.076 | 4 | 5 |
| Pixel Density (dot/m²) | 250000 | 160000 | 105625 | 62500 | 40,000 |
| LED Type | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Module Size (W × H) mm | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
| Module Resolution (W × H) | 160 × 80 | 128 × 64 | 104 × 52 | 80 × 40 | 64 × 32 |
| Module Weight (kg) | 0.32 | 0.32 | 0.32 | 0.28 | 0.28 |
| Power Consumption per Module (W) | 35~40 | 35~40 | 35~40 | 35~40 | 35~40 |
| Driver Mode (Scan) | 1/20 | 1/16 | 1/13 | 1/8 | 1/8 |
| Brightness (cd/m²) | 4000~4500 | 4000~4500 | 4000~4500 | 4000~4500 | 4000~4500 |
| Grey Scale (bits) | 14 | 14 | 14 | 14 | 14 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Unit Size (W × H × D) mm | 1046 × 400 × 139 | 1046 × 400 × 139 | 1046 × 400 × 139 | 1046 × 400 × 139 | 1046 × 400 × 139 |
| Display Size (W × H) | 960 × 320 | 960 × 320 | 960 × 320 | 960 × 320 | 960 × 320 |
| Display Resolution (W × H) | 480 × 160 | 384 × 128 | 312 × 104 | 240 × 80 | 192 × 64 |
| Unit Weight (kg/PC) | 17 (additional packaging material 21KG) | 17 (additional packaging material 21KG) | 17 (additional packaging material 21KG) | 17 (additional packaging material 21KG) | 17 (additional packaging material 21KG) |
| Max Power Consumption (W/Sets) | 420~480 | 420~480 | 420~480 | 420~480 | 420~480 |
| Average Power Consumption (W/m²) | 126~144 | 126~144 | 126~144 | 126~144 | 126~144 |
| Viewing Angle - Degree: H | 120° | 120° | 120° | 120° | 120° |
| Viewing Angle - Degree: V | 120° | 120° | 120° | 120° | 120° |
| Mini View Distance (m) | 2 | 2.5 | 3 | 4 | 5 |
| Use Temperature (°C) - Operating | -10°C~40°C / 14°F~104°F | -10°C~40°C / 14°F~104°F | -10°C~40°C / 14°F~104°F | -10°C~40°C / 14°F~104°F | -10°C~40°C / 14°F~104°F |
| Use Temperature (°C) - Storage | -20°C~50°C / -4°F~122°F | -20°C~50°C / -4°F~122°F | -20°C~50°C / -4°F~122°F | -20°C~50°C / -4°F~122°F | -20°C~50°C / -4°F~122°F |
| Input Voltage | DC9~36V | DC9~36V | DC9~36V | DC9~36V | DC9~36V |
| Failure Rate | <1/50,000 | <1/50,000 | <1/50,000 | <1/50,000 | <1/50,000 |
| Control Type | WiFi & 4G optional | WiFi & 4G optional | WiFi & 4G optional | WiFi & 4G optional | WiFi & 4G optional |
| Life Time (hrs) | 50,000 | 50,000 | 50,000 | 50,000 | 50,000 |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 |
|
