Plate Fin Heat Exchanger Core Assembly Machine for Radiator & Intercooler Manufacturing

This Plate Fin Heat Exchanger Core Assembly Machine is designed for assembling plate-fin type heat exchanger cores used in automotive radiators, intercoolers, oil coolers, and various industrial cooling systems.

It is used to stack and press core components such as fins, side plates, sealing bars, and headers into a complete and stable structure. The machine helps operators complete positioning, pre-pressing, alignment, and final compression in a controlled and consistent way.

With a manual loading structure and simple button control system, the machine is easy to operate in daily production. Its adjustable design allows it to handle different core sizes, making it suitable for both small batch production and continuous industrial manufacturing.

The machine follows a clear and stable workflow:

Stacking → Pre-pressing → Alignment → Final pressing → Locking → Output

This ensures consistent quality during repeated production cycles.

The hydraulic-pneumatic boosting system provides stable and uniform pressure output. It helps maintain core alignment during assembly and reduces deformation issues in finished products.

The machine supports multiple core dimensions. Standard models cover core lengths from 1200mm to 3500mm, and custom sizes are available according to customer requirements.

The control system is simple and practical. Operators only need basic training to operate the machine, making it suitable for long-term factory use.

We offer a range of standard models to meet different production requirements. All models can also be customized based on drawings or production needs.

We provide full customization based on customer production requirements, including:

• Special core size design
• Increased pressing force configurations
• Multi-cylinder reinforcement options
• Semi-automatic or upgraded control systems
• Integration with production lines

• Stable hydraulic-pneumatic pressing system
• High assembly accuracy for heat exchanger cores
• Suitable for radiator and intercooler manufacturing
• Simple operation with low training cost
• Strong structure for long-term industrial use
• Flexible adjustment for different product sizes
• Supports continuous production environments

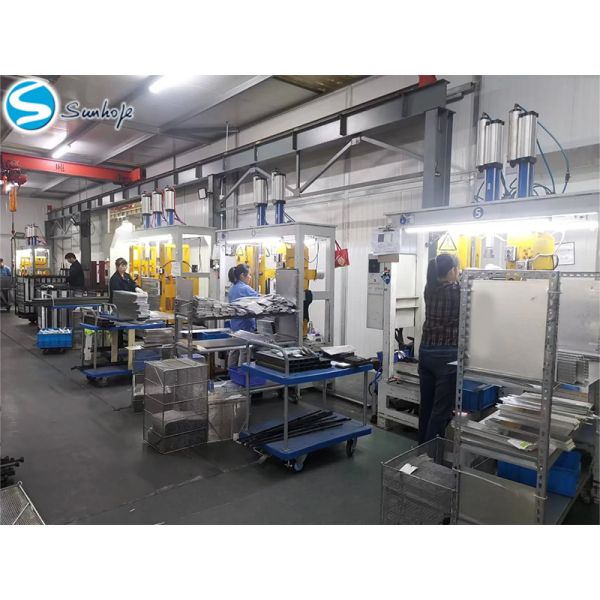

Workers Operating Plate Fin Core Assembly Machine in Production Line

With more than 15 years of experience in radiator and heat exchanger manufacturing equipment, SUNHOPE provides complete production solutions for global customers.

We supply:

• Radiator Core Assembly Machines
• Plate Fin Heat Exchanger Equipment
• Fin Forming Machines
• Aluminum Brazing Furnaces
• Leak Testing Equipment
• Radiator and Condenser Components

In addition, we provide installation guidance, operator training, and technical support to help customers build efficient and stable production lines.

Whether you are building a new factory or upgrading an existing production line, SUNHOPE can provide a practical and customized solution based on your requirements.

It is used for assembling plate-fin heat exchanger cores for radiators, intercoolers, oil coolers, and industrial heat exchangers.

Standard models support core lengths from 1200mm to 3500mm, with customization available.

No. The machine uses a simple button control system and requires only basic training.

Yes, the pressing force is adjustable up to 5 tons depending on production requirements.

Yes, we provide installation guidance and full technical support.

Yes, SUNHOPE provides complete radiator and heat exchanger production line solutions.
