Lithium Battery Protection Board Tester for Battery Pack Assembly Line

Lithium Battery Protection Board Tester for Battery Pack Assembly Line
1-32 Series Power Battery Protection Board Tester BMS Tester For Lithium Battery Pack Testing
Product Overview
This specialized testing machine is designed for comprehensive evaluation of battery protection boards, measuring critical parameters including overcharge protection voltage, recovery voltage, overdischarge protection, current protection, and self-consumption for 1-32 series power battery protection boards.
Primary Applications
Primarily serves PCB board manufacturers and power battery pack manufacturers for quality control and performance verification of battery protection boards.
Key Testing Capabilities
  • Short circuit protection testing
  • Individual PCB board self-consumption measurement
  • Equalizing current and balance voltage testing
Technical Specifications
ParameterRangeAccuracy
Test rate of series1-32 series optional-
Over charge protecting voltage0-5V±5mV
Over discharge protecting voltage0-5V±5mV
Over charge recovery voltage0-5V±5mV
Over discharge recovery voltage0-5V±5mV
Over charge protecting current0-50A±0.1A
Over discharge protecting current0-120A±0.1A
Balanced turn-on voltage0-5V±5mV
Equilibrium real time current0-1000MA±1mA
Over current protection delay0-8S±1mS
Total self current consumption0-10MA±5uA
Single self current consumption0-500uA±1uA
Loop resistance0-200mΩ±1mΩ
Short circuit protecting (more than 10 series)0-9999u-

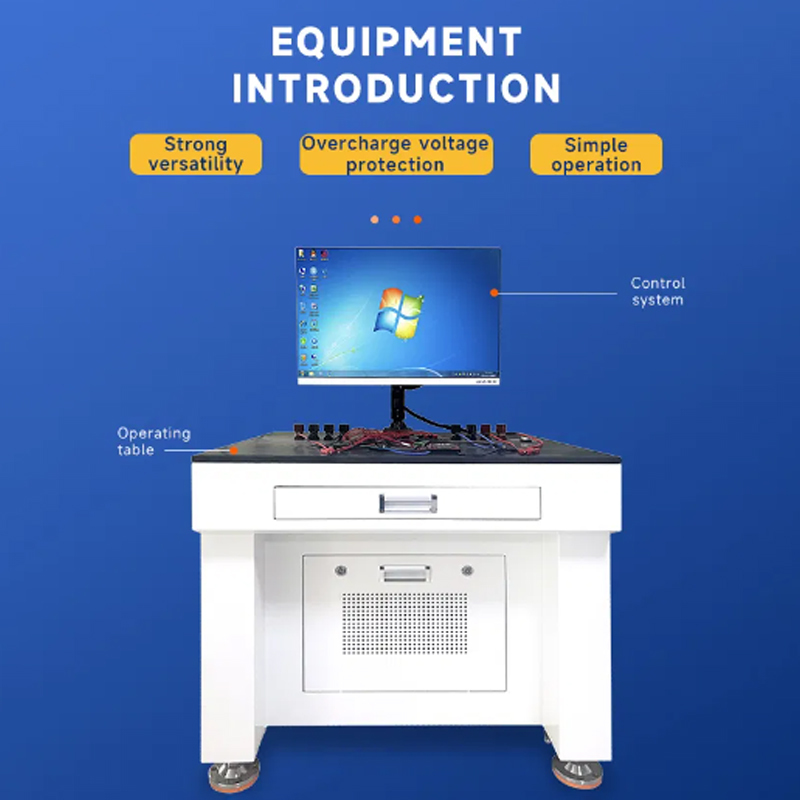

Lithium Battery Protection Board Tester equipment for battery pack assembly line testing
