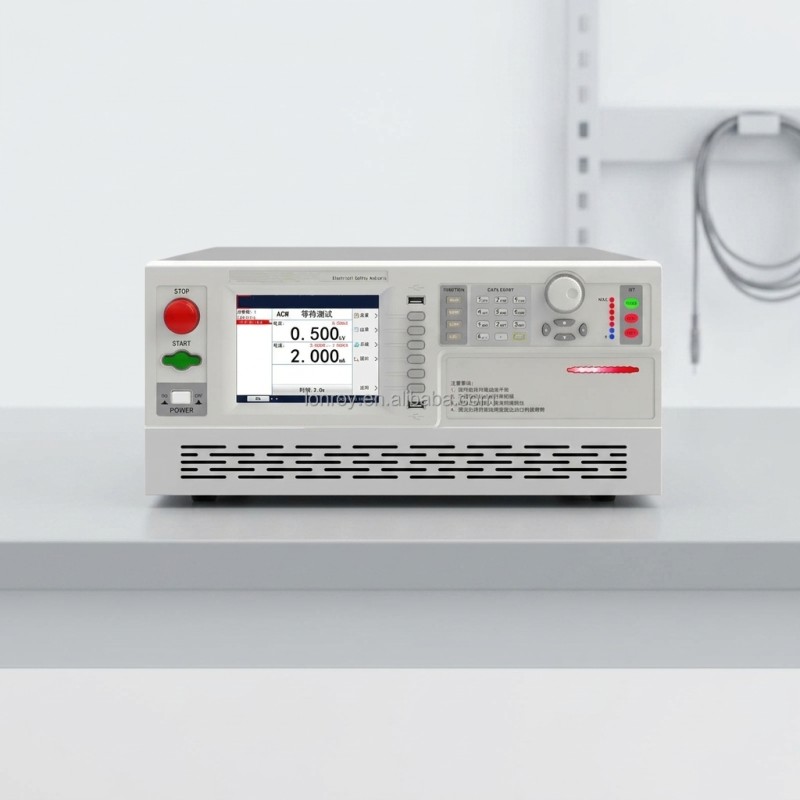

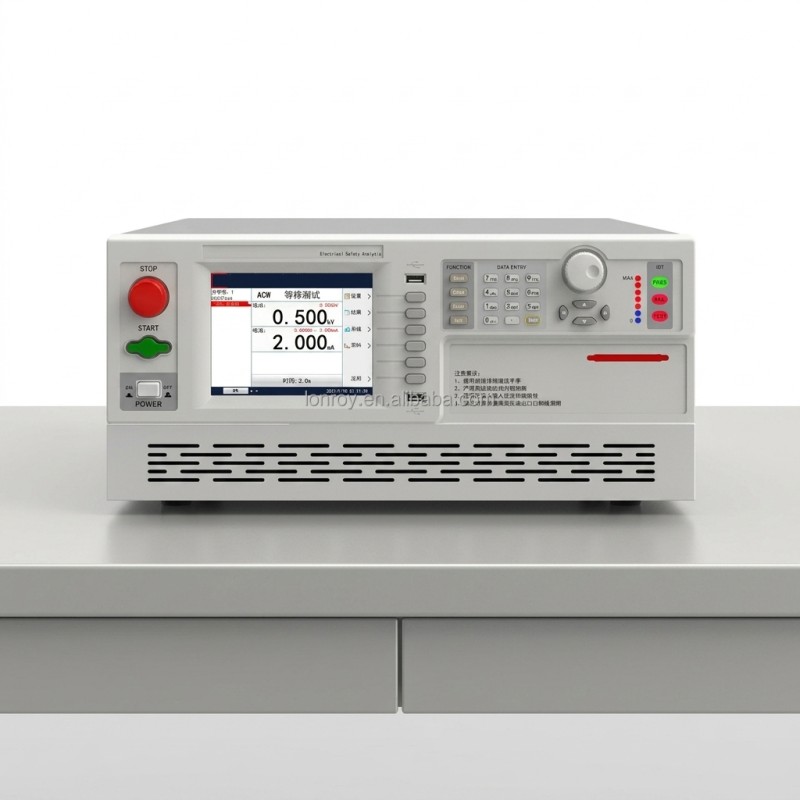

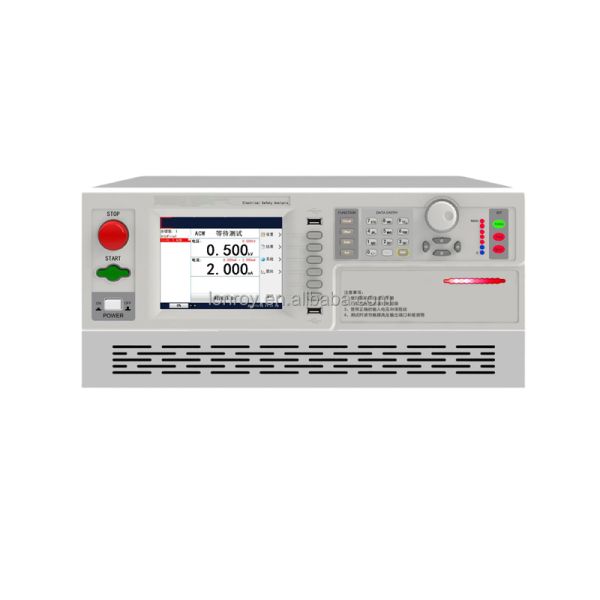

Programmable Comprehensive Electrical Safety Tester Electrical Safety Compliance Tester Hipot Leakage Current Power Test Machine

Programmable Comprehensive Electrical Safety Tester Electrical Safety Compliance Tester Hipot Leakage Current Power Test Machine

Product Features

1. It integrates AC/DC withstand voltage, insulation, grounding, leakage, and power tests, featuring fast testing speed and high efficiency.

2. It uses a 5.6-inch TFT (640*480) display to set parameters and test parameters, with clear and rich display content.

3. The tester can store test results in the form of an EXCEL table on a USB drive.

4. Software upgrades can be performed via the USB drive.

5. It adopts DDS digital signal synthesis technology to generate precise, stable, pure, and low-distortion sine waves.

6. It allows adjustment of the rise and fall times of high voltage, enabling it to meet the requirements of different test objects.

7. Two specific arc detection methods can be selected: current method and level method.

8. Test results can be saved synchronously and support detailed and complete statistical operations.

9. It supports online editing of test conditions by customers, facilitating intelligent and refined management.

10.It has dual-frequency comprehensive testing, with a frequency range of 50 Hz and 60 Hz.

11.It has an intuitive operation interface, supporting direct input with digital keys, dial input, and making operation more convenient.

12.It has complete operation help prompts, which can effectively improve user efficiency.

13.It has a bilingual operation interface, suitable for different user needs.

14.It supports barcode scanner function.

15.It comes with a PLC interface, RS232 interface, and optional LAN interface, RS485 interface, and USB interface.

Programmable Comprehensive Electrical Safety Tester Electrical Safety Compliance Tester Hipot Leakage Current Power Test Machine

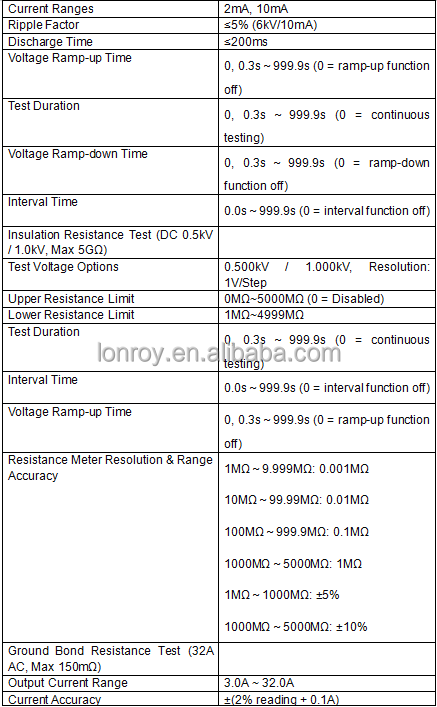

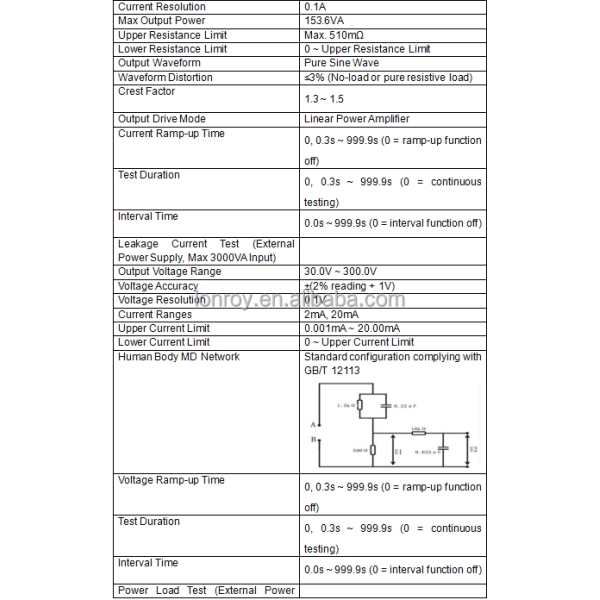

Technical Specification
