TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection

TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection

TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection
TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection
Categories Vehicle Detector Sensor
Operating temperature: -20°C to +65°C
Model Number: TLD-110
Output relays: 240V/5A
MOQ: Sample order accepted
Delivery Time: 2-5 working days after payment received
Output method: Relay
Payment Terms: T/T,L/C,D/A,D/P,Western Union
Sensitivity: Three levels of adjustable
Supply Ability: 30, 000 pcs per month
Frequency range: 20 kHz to 170 kHz
Certification: CE/ ISO
Reaction time: 100ms
Place of Origin: Shenzhen, China.
Dimension: 78*40*116mm
Price: negotiable
Power Consumption: 4.5VA
Brand Name: SINOMATIC
Packaging Details: Carton
Contact Now
Company Info.
SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection

TLD-110 Single Channel Loop Detector
The TLD-110 Toll Gate Vehicle Loop Detector features relay output compatibility with 220V/110V/24V/12V power systems. This single-channel inductive loop detector operates by detecting changes in loop inductance caused by vehicle metallic components, with automatic calibration upon power application.
Application Scope
  • Parking lot entrance vehicle detection systems
  • Parking space information acquisition systems
  • Electronic traffic light snapshot systems
  • Traffic monitoring and control systems
Features & Functions
It utilizes microprocessor technology to evaluate inductance changes within detection loops. Features include automatic calibration when operating voltage is applied, ensuring ease of use and reliable performance.
Technical Specifications
ModelTLD-110
Loop ChannelSingle
Input PowerAC 80V ~ 240V
Rated Power4.5 W
Output Relay240V / 5A
Operating Temperature-20°C ~ 65°C
Work Frequency20 ~ 170 kHz
Reaction Time10 ms
Sensitivity3 Levels
Input InterfaceDigital Signal Input
Product Dimensions75*37*110 mm (L x W x H)
Loop Connection WiringMaximum length 20 meters

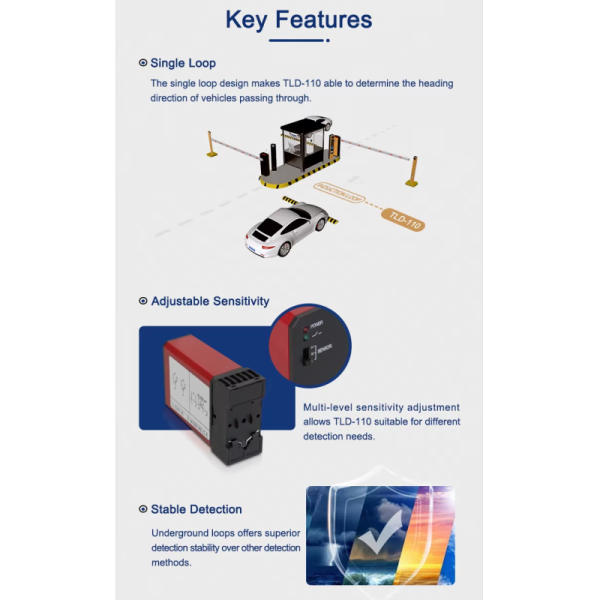

TLD-110 Single Channel Loop Detector product image
Company Advantages
  • Low MOQ: Samples available for quality verification
  • High Quality: Ensures market reputation and repeat orders
  • Professional Service: Comprehensive pre-sale and after-sale support
  • Competitive Pricing
  • Fast & Cost-Effective Delivery
  • OEM Services Welcome
